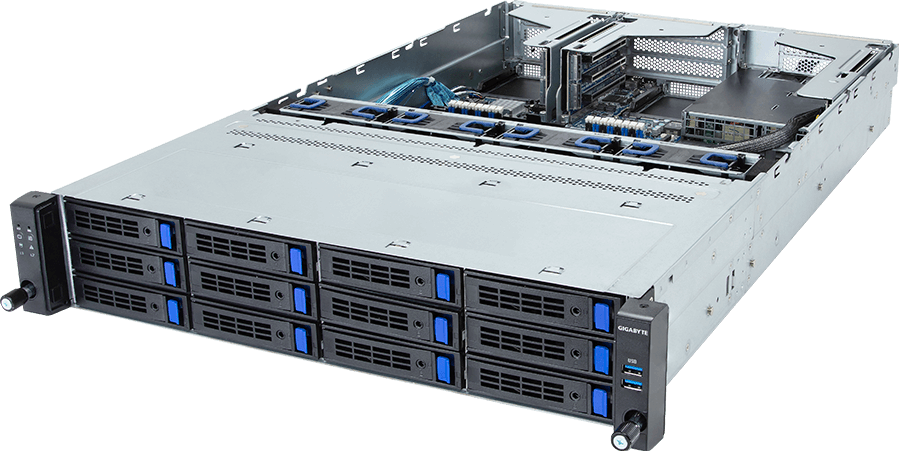

R263-S30- AAH2

2U
438 x 87.5 x 710

MS33-DC0

5th Generation Intel^® Xeon^® Scalable Processors
4th Generation Intel^® Xeon^® Scalable Processors
Intel^® Xeon^® CPU Max Series
Single processor, TDP up to 350W

1 x LGA 4677
Socket E

Intel^® C741

16 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported

5th Gen Intel^® Xeon^®: Up to *5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel^® Xeon^®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel^® Xeon^® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

*5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.

Rear side:
1 x 1Gb/s LAN port (1 x Intel^® I210-AT)
Supports NCSI function

1 x 10/100/1000 Mbps Management LAN

Integrated in Aspeed^® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Front side:
12 x 3.5"/2.5" SATA/SAS hot-swappable bays

SAS card is required for SAS devices support

Depends on SAS add-in cards

Intel^® SATA RAID 0/1/10/5

Riser Card CRS201C:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU
- 1 x PCIe x16 (Gen5 x8) FHHL slot, from CPU

Riser Card CRS201D:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU
- 1 x PCIe x16 (Gen5 x8) FHHL slot, from CPU

2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth, from CPU
Support NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from PCH
- Supports 2280/22110 cards

1 x TPM header
1 x VROC connector

2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x LAN activity LED
1 x Storage activity LED
1 x System status LED

2 x USB 3.2 Gen1
1 x Mini-DP
1 x RJ45
1 x MLAN
1 x ID button with LED

Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

1+1 1300W 80 PLUS Titanium redundant power supplies

AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 7A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12.2V/ 106A
+12.2Vsb/ 3A

Note: The default power supply is based on a basic system configuration. Please contact with technical representatives to determine the best power supply selection for your system configuration requirements and preferred efficiency.

Aspeed^® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced power capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

Please refer to OS compatibility table in support page

Additional certifications:
VMware ESXi 8.0
Windows Server 2022 (x64)

4 x 80x80x38mm (18,300rpm)

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Net Weight: 26 kg
Gross Weight: 28 kg

989 x 594 x 279 mm

1 x R263-S30-AAH2
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
3 x Carriers
1 x 2-Section Rail kit

- Barebone package (5th/4th Gen): 6NR263S30DR000ABH2*
- Barebone package (4th Gen): 6NR263S30DR000AAH2*
- Motherboard: 9MS33DC0UR-000
- 2-Section Rail kit (CMA not supported): 25HB2-3A0203-K0R
- CPU heatsink: 25ST1-323208-A0R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20C5: 9CBP20C5NR-00
- Fan module: 25ST2-88382T-S1R
- Riser card - CRS201C: 9CRS201CNR-00
- Riser card - CRS201D: 9CRS201DNR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-21300C-G1S

Optional parts:

- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
