High quality Creative PCI Sound |
Introduction:
High quality Creative PCI Sound is the feature that provides the high-quality surround sound and audio experience to the Desktop PC by the unique hardware technology and impressive software functions as well. It delivers 4- channels output normally and 5.1-channel via S/PDIF digital output. With in-game EAX's 3D audio technology and audio environment effects, this feature brings premium class audio experience to the users when gaming and watching DVD movies. Through SP/DIF digital output, users can experience the realistic Dolby-Digital. It is designed to bring cinema-quality sound to your movies, music, and games with digital 5.1 clarity.
This feature is enabled by Creative CT5880 controller chip and related drivers. GIGABYTE had applied this technology in its high end products to deliver the best quality to the customer
|
| |
| Application:
|
 |
The feature of Creative PCI Sound available in high end products of GIGABYTE P4 Titan series and AMD Athlon series motherboard. |
|
4 Channel output: Setting in the Creative Drivers |
|
5.1 Channel output: A ��S/PDIF output�� connector is available on the motherboard. Cable with rear bracket is provided and could link to the ��S/PDIF output�� connector (As picture.) For the further linkage to decoder, rear bracket provides coaxial cable and Fiber connecting port. |
| |
 Creative CT5880 controller chip and S/PDIF output connector |
| |
| |

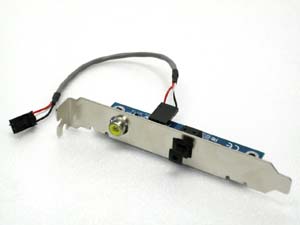

 Cable with rear bracket |
| |
| |

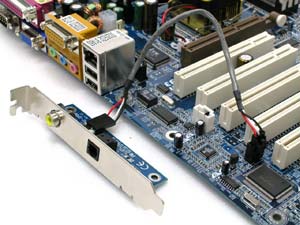

 Cable connecting to the S/PDIF output connector |
|
|
