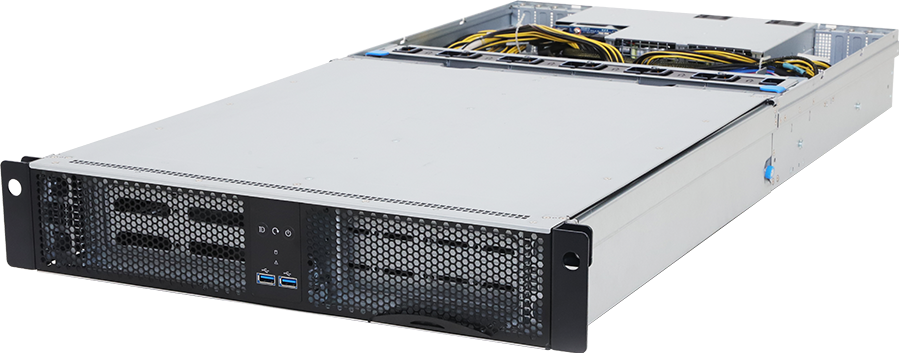

S252-ZC0
Storage Server - AMD EPYC™ 7003/7002 - 2U DP 24+2-Bay Gen4 NVMe/SATA/SAS
- Hardware-level root of trust support
- Dual AMD EPYC™ 7003/7002 Series Processors
- 8-Channel DDR4 RDIMM/LRDIMM, 16 x DIMMs
- 24 x 3.5"/2.5" SATA/SAS hot-swappable bays
- 2 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays on the rear side
- Onboard 12Gb/s SAS expander
- 2 x SATA DOM supported
- 6 x LP PCIe Gen4 x16 slots
- 1+1 1300W 80 PLUS Platinum redundant power supplies (-A00)
- 1+1 1300W 80 PLUS Titanium redundant power supplies (-AT0)
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
438 x 87 x 880
438 x 87 x 880
Motherboard
MZC2-CE0
CPU
AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Dual processor, 7nm technology
Up to 64 cores, 128 threads per processor
cTDP up to 200W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
AMD EPYC™ 7002 Series Processors
Dual processor, 7nm technology
Up to 64 cores, 128 threads per processor
cTDP up to 200W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket
2 x LGA 4094
Socket SP3
Socket SP3
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200 MT/s
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200 MT/s
LAN
Rear side:
1 x 10/100/1000 Mbps Management LAN
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Side-accessed:
24 x 3.5"/2.5" SATA/SAS hot-swappable bays
LSI SAS35x36R expander
SAS card is required to enable the 24 drive bays
Rear side:
2 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
Default configuration supports:
2 x 2.5" Gen4 NVMe/SATA/SAS drives on the rear side
Recommend optional 12Gb/s SAS cards:
Broadcom MegaRAID 9560-8i Storage Adapter
Broadcom HBA 9500-8i Storage Adapter
CRA4448 (Hardware RAID Card)
CSA4648 (Software HBA Card)
24 x 3.5"/2.5" SATA/SAS hot-swappable bays
LSI SAS35x36R expander
SAS card is required to enable the 24 drive bays
Rear side:
2 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
Default configuration supports:
2 x 2.5" Gen4 NVMe/SATA/SAS drives on the rear side
Recommend optional 12Gb/s SAS cards:
Broadcom MegaRAID 9560-8i Storage Adapter
Broadcom HBA 9500-8i Storage Adapter
CRA4448 (Hardware RAID Card)
CSA4648 (Software HBA Card)
SAS
Supported via SAS add-in cards
RAID
Depends on SAS add-in cards
Expansion Slots
3 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0
3 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_1
3 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_1
Internal I/O
1 x TPM header
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x Storage activity LED
1 x System status LED
Rear I/O
2 x USB 3.0
1 x VGA
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x System status LED
1 x VGA
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x System status LED
Backplane Board
Left side - CBPD2C0: 12 x 3.5"/2.5" SATA/SAS ports with expander
Right side - CBPD2C1: 12 x 3.5"/2.5" SATA/SAS ports
Rear side - CBPD020: 2 x 2.5" Gen4 NVMe/SATA/SAS ports
Right side - CBPD2C1: 12 x 3.5"/2.5" SATA/SAS ports
Rear side - CBPD020: 2 x 2.5" Gen4 NVMe/SATA/SAS ports
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
1+1 1300W 80 PLUS Platinum redundant power supplies (-A00)
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 6.5A
DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12V/ 105.4A
+12Vsb/ 3A
1+1 1300W 80 PLUS Titanium redundant power supplies (-AT0)
AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 7A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12.2V/ 106A
+12.2Vsb/ 3A
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 6.5A
DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12V/ 105.4A
+12Vsb/ 3A
1+1 1300W 80 PLUS Titanium redundant power supplies (-AT0)
AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 7A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12.2V/ 106A
+12.2Vsb/ 3A
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage/Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Citrix Hypervisor 8.2.1 or later
Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later
Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later
Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
System Fans
6 x 60x60x38mm hot-swappable fan modules
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1168 x 697 x 341 mm
Packaging Content
1 x S252-ZC0
2 x CPU heatsinks
1 x 2-Section Rail kit
1 x Cable Management Arm
2 x CPU heatsinks
1 x 2-Section Rail kit
1 x Cable Management Arm
Part Numbers
- Barebone package: 6NS252ZC0MR-00-A*
- Motherboard: 9MZC2CE0NR-00
- 2-Section Rail kit: 25HB2-A66124-C0R
- Cable Management Arm: 25HBZ-R18100-K0R
- CPU heatsink: 25ST1-453211-A3R
- Backplane board - CBPD020: 9CBPD020NR-00
- Backplane board - CBPD2C0: 9CBPD2C0NR-00
- Backplane board - CBPD2C1: 9CBPD2C1NR-00
- Power supply (-A00): 25EP0-213001-F3S
- Power supply (-AT0): 25EP0-21300C-G1S
Optional parts:
- 12Gb/s SAS H/W RAID card : 9CRA4448NR-00
- 12Gb/s SAS S/W RAID card : 9CSA4648NR-00
- RMA packaging: 6NS252ZC0SR-RMA-A100
- Motherboard: 9MZC2CE0NR-00
- 2-Section Rail kit: 25HB2-A66124-C0R
- Cable Management Arm: 25HBZ-R18100-K0R
- CPU heatsink: 25ST1-453211-A3R
- Backplane board - CBPD020: 9CBPD020NR-00
- Backplane board - CBPD2C0: 9CBPD2C0NR-00
- Backplane board - CBPD2C1: 9CBPD2C1NR-00
- Power supply (-A00): 25EP0-213001-F3S
- Power supply (-AT0): 25EP0-21300C-G1S
Optional parts:
- 12Gb/s SAS H/W RAID card : 9CRA4448NR-00
- 12Gb/s SAS S/W RAID card : 9CSA4648NR-00
- RMA packaging: 6NS252ZC0SR-RMA-A100
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Utility
Firmware
QVL
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 64bit
Chipset
BIOS
Description
Version
Size
Date
1) Updated to AGESA RomePI 1.0.0.J.
2) Updated to AGESA MilanPI 1.0.0.D.
3) Included multiple security updates.
2) Updated to AGESA MilanPI 1.0.0.D.
3) Included multiple security updates.
Version : M14_R13
35.41 MB
Nov 04, 2024
1) Fixed PKfail Vulnerability.
2) Optimized BcpPro tool compatibility.
2) Optimized BcpPro tool compatibility.
Version : M13_R12
35.4 MB
Aug 26, 2024
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
Utility
Description
Version
Size
Date
GSM CLI
Version : 2.1.78
147.79 MB
Dec 12, 2024
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
Firmware
Description
Version
Size
Date
BMC Firmware with embedded GIGABYTE Management Console
(AST2500 AMI)
(AST2500 AMI)
Version : 12.61.21
105.38 MB
Apr 11, 2024
Engelska
Manual
Description
Version
Size
Date
User Guide - GIGABYTE Management Console (AMI)
Version : 1.0
14.16 MB
Jun 10, 2020
Engelska
Description
Version
Size
Date
RESOURCES
Articles
Video
News
Others
Back to S252-ZC0
