- R283-S93-AAL1
R283-S93- AAL1

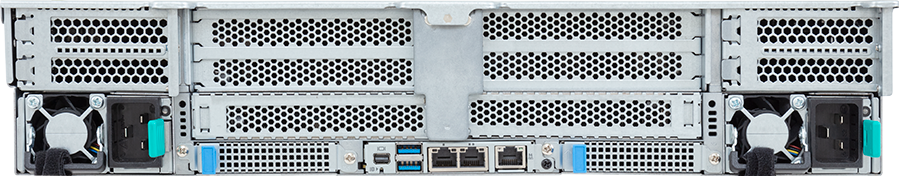

Rack Server - 5th/4th Gen Intel® Xeon® Scalable - 2U DP 2 x PCIe Gen5 GPUs 2700W
- NVIDIA-Certified Systems™ - Data Center Servers
- Supports up to 2 x Dual slot Gen5 GPUs
- Dual 5th/4th Gen Intel® Xeon® Scalable Processors
- Dual Intel® Xeon® CPU Max Series
- 8-Channel DDR5 RDIMM, 32 x DIMMs
- Dual ROM Architecture
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 4 x 3.5"/2.5" Gen4 NVMe/SATA/SAS hot-swap bays
- 8 x 3.5"/2.5" SATA/SAS hot-swap bays
- 2 x FHFL PCIe Gen5 x16 slots for GPUs
- 2 x FHHL PCIe Gen5 x16 slots
- 4 x LP PCIe Gen5 x8 slots
- 2 x OCP NIC 3.0 PCIe Gen5 x16 slots
- 1+1 2700W 80 PLUS Titanium redundant power supplies
Quick Shipping
Streamline the Process
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
438 x 87.5 x 815
438 x 87.5 x 815
Motherboard
MS93-FS0
CPU
5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Dual processor, TDP 350W at ambient 25°C
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Dual processor, TDP 350W at ambient 25°C
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 4677
Socket E
Socket E
Chipset
Intel® C741
Memory
32 x DIMM slots
DDR5 memory supported
8-Channel memory architecture
5th Gen Intel® Xeon®:
RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) [1]
4th Gen Intel® Xeon®:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel® Xeon® Max Series:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
[1] 5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.
DDR5 memory supported
8-Channel memory architecture
5th Gen Intel® Xeon®:
RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) [1]
4th Gen Intel® Xeon®:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel® Xeon® Max Series:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
[1] 5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.
LAN
Rear (G-SCM board - CDCR112):
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x Mini-DP
- 1 x Mini-DP
Storage
Front hot-swap:
4 x 3.5"/2.5" Gen4 NVMe/SATA/SAS [1]
8 x 3.5"/2.5" SATA/SAS [1]
- (NVMe from CPU_1)
[1] SAS card is required to support SAS drives.
4 x 3.5"/2.5" Gen4 NVMe/SATA/SAS [1]
8 x 3.5"/2.5" SATA/SAS [1]
- (NVMe from CPU_1)
[1] SAS card is required to support SAS drives.
SAS
Require SAS add-in cards
RAID
Intel® SATA RAID 0/1/10/5
Onboard VROC key header
Onboard VROC key header
PCIe Expansion Slots
Riser Card CRS101J:
- 1 x FHHL x16 (Gen5 x16), from CPU_0
Riser Card CRS101K:
- 1 x FHHL x16 (Gen5 x16), from CPU_1
Riser Card CRS202E x 2:
- 2 x LP x16 (Gen5 x8), from CPU_0
- 2 x LP x16 (Gen5 x8), from CPU_1
Riser Card CRS202G:
- 1 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
Riser Card CRS202H:
- 1 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs
1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Supports NCSI function
1 x OCP NIC 3.0 (Gen5 x16), from CPU_1
- Supports NCSI function
- 1 x FHHL x16 (Gen5 x16), from CPU_0
Riser Card CRS101K:
- 1 x FHHL x16 (Gen5 x16), from CPU_1
Riser Card CRS202E x 2:
- 2 x LP x16 (Gen5 x8), from CPU_0
- 2 x LP x16 (Gen5 x8), from CPU_1
Riser Card CRS202G:
- 1 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
Riser Card CRS202H:
- 1 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs
1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Supports NCSI function
1 x OCP NIC 3.0 (Gen5 x16), from CPU_1
- Supports NCSI function
Front I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
G-SCM board - CDCR112:
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID LED
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID LED
Backplane Board
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
1+1 2700W 80 PLUS Titanium redundant power supplies [1]
AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 16A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1008W/ 100-127V~
+12V/ 84A
+12Vsb/ 3A
- Max 2700W/ 200-240V~ or 240Vdc Input
+12V/ 225A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 16A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1008W/ 100-127V~
+12V/ 84A
+12Vsb/ 3A
- Max 2700W/ 200-240V~ or 240Vdc Input
+12V/ 225A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
Additional certifications:
SUSE Linux Enterprise Server 15 SP4
Windows Server 2022
Additional certifications:
SUSE Linux Enterprise Server 15 SP4
Windows Server 2022
System Fans
4 x 80x80x38mm (18,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1077 x 679 x 300 mm
Packaging Content
1 x R283-S93-AAL1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
2 x GPU power cables (CPU 8pin, 350mm)
6 x Carriers
1 x 2-Section Rail kit
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
2 x GPU power cables (CPU 8pin, 350mm)
6 x Carriers
1 x 2-Section Rail kit
Part Numbers
- Barebone package (5th/4th Gen): 6NR283S93DR000ABL1*
- Barebone package (4th Gen): 6NR283S93DR000AAL1*
- Motherboard: 9AS93FS0UR-000*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-4Z3200-S7R
- Front panel board - CFP2001: 9CFP2001NR-00*
- Backplane board - CBP20C5: 9CBP20C5NR-00*
- Fan module: 25ST2-88382T-S1R
- Riser card - CRS101J: 9CRS101JNR-00*
- Riser card - CRS101K: 9CRS101KNR-00*
- Riser card - CRS202E: 9CRS202ENR-00*
- Riser card - CRS202G: 9CRS202GNR-00*
- Riser card - CRS202H: 9CRS202HNR-00*
- G-SCM board - CDCR112: 9CDCR112NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (CPU 8pin, 350mm): 25CRI-350100-Y4R
- Power supply: 25EP0-227000-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR283S93SR-RMA-A100
- Barebone package (4th Gen): 6NR283S93DR000AAL1*
- Motherboard: 9AS93FS0UR-000*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-4Z3200-S7R
- Front panel board - CFP2001: 9CFP2001NR-00*
- Backplane board - CBP20C5: 9CBP20C5NR-00*
- Fan module: 25ST2-88382T-S1R
- Riser card - CRS101J: 9CRS101JNR-00*
- Riser card - CRS101K: 9CRS101KNR-00*
- Riser card - CRS202E: 9CRS202ENR-00*
- Riser card - CRS202G: 9CRS202GNR-00*
- Riser card - CRS202H: 9CRS202HNR-00*
- G-SCM board - CDCR112: 9CDCR112NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (CPU 8pin, 350mm): 25CRI-350100-Y4R
- Power supply: 25EP0-227000-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR283S93SR-RMA-A100
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Utility
Firmware
OS
- All
- All
- Windows Server 2022
- Windows Server 2019
- Linux
Chipset
Chipset
Version
Size
Date
Intel® Chipset Driver
Version : 10.1.19485.8386
3.81 MB
Jan 04, 2024
OS: Windows Server 2019,Windows Server 2022
LAN
LAN
Version
Size
Date
Intel® LAN Driver
Version : 28.2.1
776.69 MB
Jan 04, 2024
OS: Windows Server 2019,Windows Server 2022
RAID
RAID
Version
Size
Date
Intel® VROC
Intel® SATA RAID and Utility
Intel® SATA RAID and Utility
Version : 8.5.0.1593
99.21 MB
Jan 04, 2024
OS: Windows Server 2019,Windows Server 2022
Utility
BIOS
Description
Version
Size
Date
Include AMI SA50248 (CWE-119), and multiple feature updates.
Version : R06
29.4 MB
May 15, 2024
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
Utility
Description
Version
Size
Date
GSM CLI
Version : 2.1.78
147.79 MB
Dec 12, 2024
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
Manual
Description
Version
Size
Date
User Guide - GIGABYTE Management Console (AMI AST2600)
Version : 1.0
11.72 MB
Aug 12, 2024
Engelska
Description
Version
Size
Date
OS Support List
Version : R12
0.22 MB
Jul 15, 2024
4th Generation Intel® Xeon® Scalable Processors
5th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
5th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
RESOURCES
Others
Back to R283-S93-AAL1
