- Rack Servers
- R183-Z92-AAV1

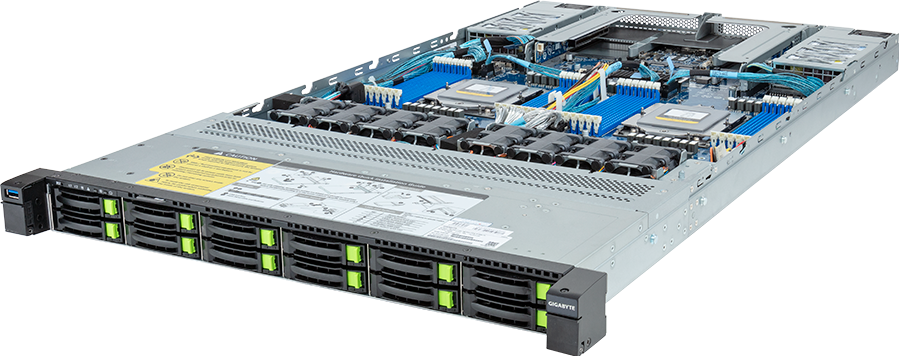

Rack Server - AMD EPYC™ 9004 - 1U DP 12-Bay Gen4 NVMe/SATA/SAS (12 x NVMe) Titanium
- Dual AMD EPYC™ 9004 Series Processors
- 12-Channel DDR5 RDIMM, 24 x DIMMs
- Dual ROM Architecture
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 12 x 2.5" Gen4 NVMe/SATA/SAS hot-swap bays
- 3 x M.2 slots with PCIe Gen3 x4 and x2 interface
- 2 x FHHL PCIe Gen5 x16 slots
- 2 x OCP NIC 3.0 PCIe Gen5 x16 slots
- Compatible with SupremeRAID™ by Graid Technology
- Dual 1600W 80 PLUS Titanium redundant power supply
Quick Shipping
See More Models
More ready-to-ship models in the R183 series.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 815
438 x 43.5 x 815
Motherboard
MZ93-FS0
CPU
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 300W
- OCP NIC 3.0 ≦ 21W at 30°C ambient, EPYC 9654 cTDP up to 400W
[Note] cTDP supported up to 400W under limited thermal conditions. Please contact our sales representatives for more details.
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 300W
- OCP NIC 3.0 ≦ 21W at 30°C ambient, EPYC 9654 cTDP up to 400W
[Note] cTDP supported up to 400W under limited thermal conditions. Please contact our sales representatives for more details.
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 6096
Socket SP5
Socket SP5
Chipset
System on Chip
Memory
24 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
RDIMM: Up to 4800 MT/s
DDR5 memory supported
12-Channel memory architecture
RDIMM: Up to 4800 MT/s
LAN
Rear (G-SCM board - CDCR114):
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x Mini-DP
- 1 x Mini-DP
Storage
Front hot-swap:
12 x 2.5" Gen4 NVMe/SATA/SAS [1]
- (4 x NVMe from CPU_0, 8 x NVMe from CPU_1)
- (SATA from CPU_0)
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
1 x M.2 (2280/22110), PCIe Gen3 x2, from CPU_1
[1] SAS card is required to support SAS drives.
12 x 2.5" Gen4 NVMe/SATA/SAS [1]
- (4 x NVMe from CPU_0, 8 x NVMe from CPU_1)
- (SATA from CPU_0)
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
1 x M.2 (2280/22110), PCIe Gen3 x2, from CPU_1
[1] SAS card is required to support SAS drives.
SAS
Require SAS add-in cards
RAID
Require RAID add-in cards
Optional compatible RAID Cards:
NVMe RAID Cards with SupremeRAID™ by Graid Technology
RAID Card models: SR-1000-ED12
Support RAID 0/1/5/6/10
Optional compatible RAID Cards:
NVMe RAID Cards with SupremeRAID™ by Graid Technology
RAID Card models: SR-1000-ED12
Support RAID 0/1/5/6/10
PCIe Expansion Slots
Riser Card CRS101T:
- 1 x FHHL x16 (Gen5 x16), from CPU_0
Riser Card CRS101Q:
- 1 x FHHL x16 (Gen5 x16), from CPU_1
1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Supports NCSI function
1 x OCP NIC 3.0 (Gen5 x16), from CPU_1
- Supports NCSI function
- 1 x FHHL x16 (Gen5 x16), from CPU_0
Riser Card CRS101Q:
- 1 x FHHL x16 (Gen5 x16), from CPU_1
1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Supports NCSI function
1 x OCP NIC 3.0 (Gen5 x16), from CPU_1
- Supports NCSI function
Front I/O
1 x USB 3.2 Gen1 port (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
G-SCM board - CDCR114:
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID LED
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID LED
Backplane Board
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
Dual 1600W 80 PLUS Titanium redundant power supply
AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 8A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12.2V/ 132A
+12.2Vsb/ 3A
[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 8A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12.2V/ 132A
+12.2Vsb/ 3A
[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
Additional certifications:
VMware ESXi 8.0 or later
Windows Server 2022 (x64)
Additional certifications:
VMware ESXi 8.0 or later
Windows Server 2022 (x64)
System Fans
8 x 40x40x56mm (32,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 22 kg
Gross Weight: 24 kg
Gross Weight: 24 kg
Packaging Dimensions
1045 x 595 x 249 mm
Packaging Content
1 x R183-Z92-AAV1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x 2-Section Rail kit
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x 2-Section Rail kit
Part Numbers
- Barebone package (EPYC 9005/9004): 6NR183Z92DR000ABV1*
- Barebone package (EPYC 9004): 6NR183Z92DR000AAV1*
- Motherboard: 9MZ93FS0UR-000*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-553202-A0R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP1013: 9CFP1030NR-00*
- Backplane board - CBP10C0: 9CBP10C0NR-00*
- Fan module: 25ST2-40562H-A0R
- Riser card - CRS101Q: 9CRS101QNR-00*
- Riser card - CRS101T: 9CRS101TNR-00*
- G-SCM board - CDCR114: 9CDCR114NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-21600I-G1S
Optional parts:
- RAID card (SR-1000-ED12): 25FC1-SRBUN3-AFS
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR183Z92SR-RMA-A100
- Barebone package (EPYC 9004): 6NR183Z92DR000AAV1*
- Motherboard: 9MZ93FS0UR-000*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-553202-A0R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP1013: 9CFP1030NR-00*
- Backplane board - CBP10C0: 9CBP10C0NR-00*
- Fan module: 25ST2-40562H-A0R
- Riser card - CRS101Q: 9CRS101QNR-00*
- Riser card - CRS101T: 9CRS101TNR-00*
- G-SCM board - CDCR114: 9CDCR114NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-21600I-G1S
Optional parts:
- RAID card (SR-1000-ED12): 25FC1-SRBUN3-AFS
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR183Z92SR-RMA-A100
