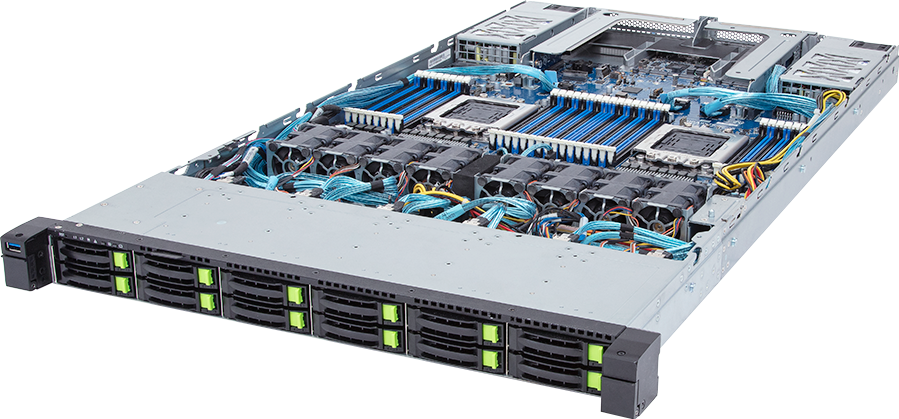

R182-P91
Rack Arm Server - Ampere® Altra® Max - 1U 12-Bay Gen4 NVMe/SATA
- Ampere® Altra® Max Processors
- Dual processor, 7nm technology
- 8-Channel RDIMM/LRDIMM DDR4, 32 x DIMMs
- Dual ROM Architecture
- 2 x 1Gb/s LAN ports (Intel® I350-AM2)
- 1 x Dedicated management port
- 6 x 2.5" Gen4 NVMe/SATA hot-swappable bays
- 6 x 2.5" Gen4 NVMe hot-swappable bays
- 1 x M.2 slot with PCIe Gen4 x4 interface
- 2 x FHHL PCIe Gen4 x16 slots
- 2 x OCP 3.0 Gen4 x16 slots
- 1+1 1300W 80 PLUS Platinum redundant power supplies
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 815
438 x 43.5 x 815
Motherboard
MP92-FS0
CPU
Ampere® Altra® Max Processor
Dual processor, 7nm technology
Up to 128-core per processor, TDP 250W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Dual processor, 7nm technology
Up to 128-core per processor, TDP 250W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket
2 x LGA 4926
Chipset
System on Chip
Memory
32 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 256GB supported
LRDIMM modules up to 256GB supported
Up to 4TB of memory capacity supported per processor
Memory speed: Up to 3200 MHz
NOTE: Only supports configurations with 1, 2, 4, 6, 8, 12, or 16 DIMMs
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 256GB supported
LRDIMM modules up to 256GB supported
Up to 4TB of memory capacity supported per processor
Memory speed: Up to 3200 MHz
NOTE: Only supports configurations with 1, 2, 4, 6, 8, 12, or 16 DIMMs
LAN
Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
NCSI function supported
1 x 10/100/1000 Mbps management LAN
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
NCSI function supported
1 x 10/100/1000 Mbps management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage
Front side:
6 x 2.5" Gen4 NVMe/SATA hot-swappable bays
- (NVMe from CPU_0, SATA from CPU_1)
6 x 2.5" Gen4 NVMe hot-swappable bays, from CPU_1
6 x 2.5" Gen4 NVMe/SATA hot-swappable bays
- (NVMe from CPU_0, SATA from CPU_1)
6 x 2.5" Gen4 NVMe hot-swappable bays, from CPU_1
SAS
N/A
RAID
N/A
Expansion Slots
Riser Card CRS101J:
- 1 x PCIe x16 (Gen4 x16) FHHL slot
Riser Card CRS101K:
- 1 x PCIe x16 (Gen4 x16) FHHL slot
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_1
1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2242/2260/2280/22110 cards
- 1 x PCIe x16 (Gen4 x16) FHHL slot
Riser Card CRS101K:
- 1 x PCIe x16 (Gen4 x16) FHHL slot
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_1
1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2242/2260/2280/22110 cards
Internal I/O
1 x M.2 slot
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
Front I/O
1 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x SSD activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x SSD activity LED
1 x System status LED
Rear I/O
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x Mini-DP
2 x RJ45
1 x MLAN
Backplane Board
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s
PCIe Gen4 x4 or SATA 6Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
1+1 1300W 80 PLUS Platinum redundant power supplies (-100)
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input:
- 240Vdc/ 6.5A
DC Output:
- Max 1000W/ 100-240V~
+ 12V/ 80.5A
+ 12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+ 12V/ 105.4A
+ 12Vsb/ 3A
1+1 1300W 80 PLUS Titanium redundant power supplies (-1T0)
AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input:
- 240Vdc/ 7A
DC Output:
- Max 1000W/ 100-127V~
+ 12.2V/ 82A
+ 12Vsb/ 3A
- Max 1300W/ 200-240V~
+ 12.2V/ 106A
+ 12Vsb/ 3A
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input:
- 240Vdc/ 6.5A
DC Output:
- Max 1000W/ 100-240V~
+ 12V/ 80.5A
+ 12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+ 12V/ 105.4A
+ 12Vsb/ 3A
1+1 1300W 80 PLUS Titanium redundant power supplies (-1T0)
AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input:
- 240Vdc/ 7A
DC Output:
- Max 1000W/ 100-127V~
+ 12.2V/ 82A
+ 12Vsb/ 3A
- Max 1300W/ 200-240V~
+ 12.2V/ 106A
+ 12Vsb/ 3A
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Red Hat Enterprise Linux 8.3 (aarch64) or later
Red Hat Enterprise Linux 8.5 (aarch64) or later
SUSE Linux Enterprise Server 15 SP2 (aarch64) or later
SUSE Linux Enterprise Server 15 SP3 (aarch64) or later
Ubuntu 18.04.5 LTS (aarch64) or later
Ubuntu 20.04.1 LTS (aarch64) or later
Fedora Server 33-1.2 (aarch64) or later
Fedora Server 35-1.2 (aarch64) or later
OracleLinux R8 U2
OracleLinux R8 U5
Debian 10.9 (Buster)
Debian 11.1
Red Hat Enterprise Linux 8.5 (aarch64) or later
SUSE Linux Enterprise Server 15 SP2 (aarch64) or later
SUSE Linux Enterprise Server 15 SP3 (aarch64) or later
Ubuntu 18.04.5 LTS (aarch64) or later
Ubuntu 20.04.1 LTS (aarch64) or later
Fedora Server 33-1.2 (aarch64) or later
Fedora Server 35-1.2 (aarch64) or later
OracleLinux R8 U2
OracleLinux R8 U5
Debian 10.9 (Buster)
Debian 11.1
System Fans
8 x 40x40x56mm (29,700rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1045 x 595 x 249 mm
Packaging Content
1 x R182-P91
2 x CPU heatsinks
1 x 2-Section Rail kit
2 x CPU heatsinks
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR182P91DR-00-1*
- Motherboard: 9MP92FS0NR-00
- 2-Section Rail kit: 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-45320B-A3R
- Front panel board - CFP1030: 9CFP1030NR-00
- Backplane board - CBP10C0: 9CBP10C0NR-00
- Fan module: 25ST2-405622-A0R
- Riser Card - CRS101J: 9CRS101JNR-00
- Riser Card - CRS101K: 9CRS101KNR-00
- G-SC Module - CDCR111: 9CDCR111UR-00
- Fan board - CFB12: 9CFB12NR-00
- Power supply (-100): 25EP0-213002-F3S
- Power supply (-1T0): 25EP0-213005-G1S
Optional parts:
- 3-Section Rail kit: 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Motherboard: 9MP92FS0NR-00
- 2-Section Rail kit: 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-45320B-A3R
- Front panel board - CFP1030: 9CFP1030NR-00
- Backplane board - CBP10C0: 9CBP10C0NR-00
- Fan module: 25ST2-405622-A0R
- Riser Card - CRS101J: 9CRS101JNR-00
- Riser Card - CRS101K: 9CRS101KNR-00
- G-SC Module - CDCR111: 9CDCR111UR-00
- Fan board - CFB12: 9CFB12NR-00
- Power supply (-100): 25EP0-213002-F3S
- Power supply (-1T0): 25EP0-213005-G1S
Optional parts:
- 3-Section Rail kit: 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
