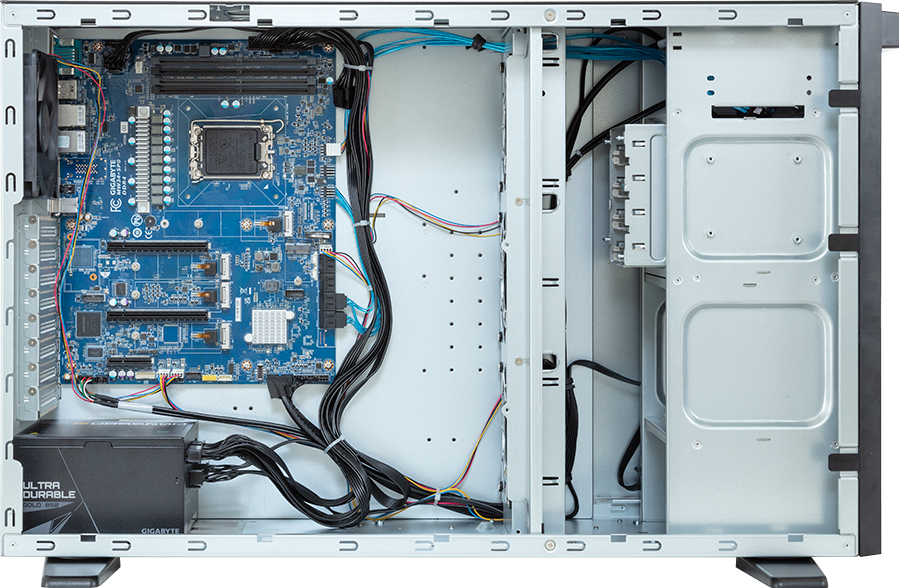

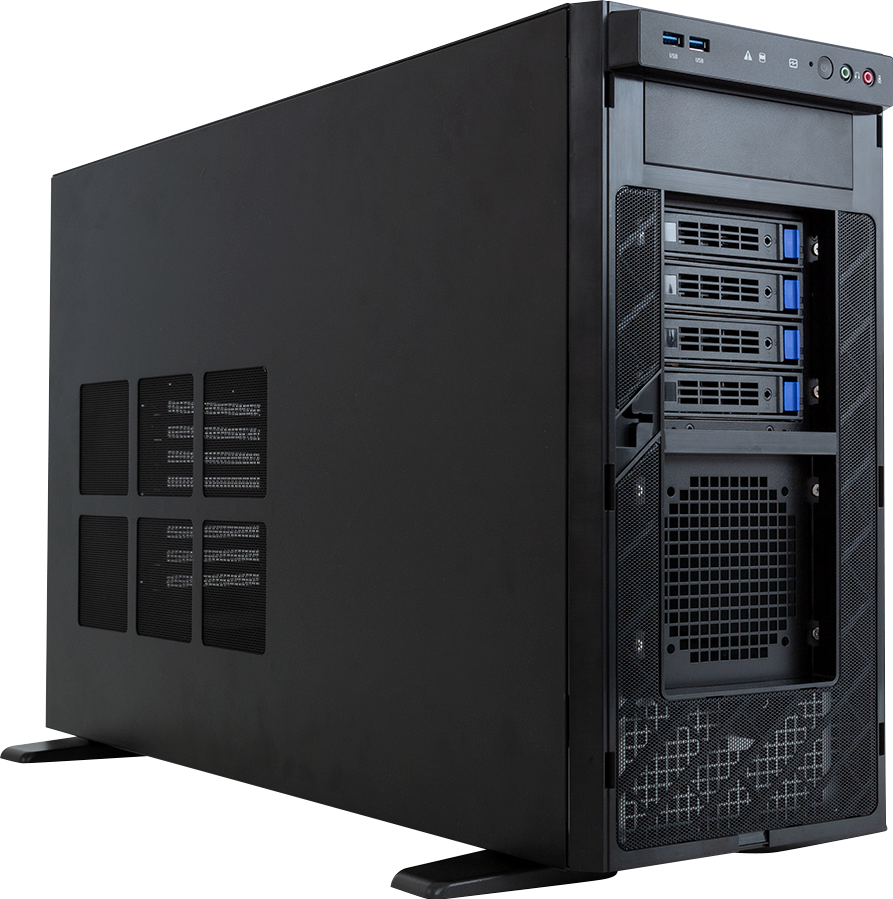

W733-W30-AA01
GPU Workstation - 14th/13th/12th Gen Intel® Core™ - UP 1 x PCIe Gen5 GPU
- Supports 1 x Multi-slot Gen5 GPU
- Single 14th/13th/12th Gen Intel® Core™ Desktop Processor
- Dual Channel DDR4 3200 MT/s UDIMM, 4 x DIMMs
- Intel® W680 Chipset
- 1 x 2.5Gb/s LAN port via Intel® I225
- 4 x M.2 slots with PCIe Gen4 x4 interface
- Up to 8 x 3.5"/2.5" SATA bays
- 2 x PCIe Gen5 x16 and x8 slots
- 1 x PCIe Gen3 x4 slot
- Single 850W ATX 80 PLUS Gold power supply
* Todos los materiales aquí provistos son sólo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
SPECIFICATIONS
Dimensions (WxHxD, mm)
Pedestal
218 x 455 x 726.3
218 x 455 x 726.3
Motherboard
MW34-SP0
CPU
14th Gen Intel® Core™ Desktop Processor
13th Gen Intel® Core™ Desktop Processor
12th Gen Intel® Core™ Desktop Processor
Single Processor
Up to 24 cores, 32 threads
13th Gen Intel® Core™ Desktop Processor
12th Gen Intel® Core™ Desktop Processor
Single Processor
Up to 24 cores, 32 threads
Socket
1 x LGA 1700
Chipset
Intel® W680
Memory
4 x DIMM slots
Dual channel memory architecture
Supports 1.2V DDR4 3200 MT/s memory
ECC UDIMM supported
Total capacity up to 128GB
Note: When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0.
Dual channel memory architecture
Supports 1.2V DDR4 3200 MT/s memory
ECC UDIMM supported
Total capacity up to 128GB
Note: When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0.
LAN
1 x 2.5Gb/s LAN (1 x Intel® I225)
1 x 10/100/1000 Mbps Management LAN
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Intel® Processor:
- 1 x DisplayPort, supports DisplayPort 1.4a
- 1 x HDMI port, supports for HDMI 2.0b
Integrated in ASPEED® AST2600:
- 1 x VGA Port
- 1 x DisplayPort, supports DisplayPort 1.4a
- 1 x HDMI port, supports for HDMI 2.0b
Integrated in ASPEED® AST2600:
- 1 x VGA Port
Audio
Realtek® ALC897 HD Audio Codec
Supports 2/4/5.1/7.1 channel configurations
Rear 3 x Audio Jacks (Audio in/Audio out/Mic)
Front 2 x Audio Jacks (Audio out/Mic)
Supports 2/4/5.1/7.1 channel configurations
Rear 3 x Audio Jacks (Audio in/Audio out/Mic)
Front 2 x Audio Jacks (Audio out/Mic)
Storage
4 x 3.5"/2.5" SATA bays
Optional 4 x 3.5"/2.5" SATA bays
Storage card is required to support NVMe and SAS drives.
Optional 4 x 3.5"/2.5" SATA bays
Storage card is required to support NVMe and SAS drives.
RAID
Intel® RAID 0/1/5/10
Peripheral Drives
5.25" space reserved for ODD devices
Expansion Slots
Slot_6: PCIe x16 (Gen5 x16 or x8) slot, from CPU
Slot_3: PCIe x16 (Gen5 x0 or x8) slot, from CPU, shared with Slot_6
Slot_1: PCIe x4 (Gen3 x4) slot, from PCH
1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU
- Supports 2280/22110 cards
3 x M.2 slots:
- M-key
- PCIe Gen4 x4, from PCH
- Support 2280 cards
1 x M.2 slot for Wi-Fi:
- E-key
- PCIe Gen3 x1, from PCH
- Supports 2230 cards
Slot_3: PCIe x16 (Gen5 x0 or x8) slot, from CPU, shared with Slot_6
Slot_1: PCIe x4 (Gen3 x4) slot, from PCH
1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU
- Supports 2280/22110 cards
3 x M.2 slots:
- M-key
- PCIe Gen4 x4, from PCH
- Support 2280 cards
1 x M.2 slot for Wi-Fi:
- E-key
- PCIe Gen3 x1, from PCH
- Supports 2230 cards
Internal I/O
1 x TPM header

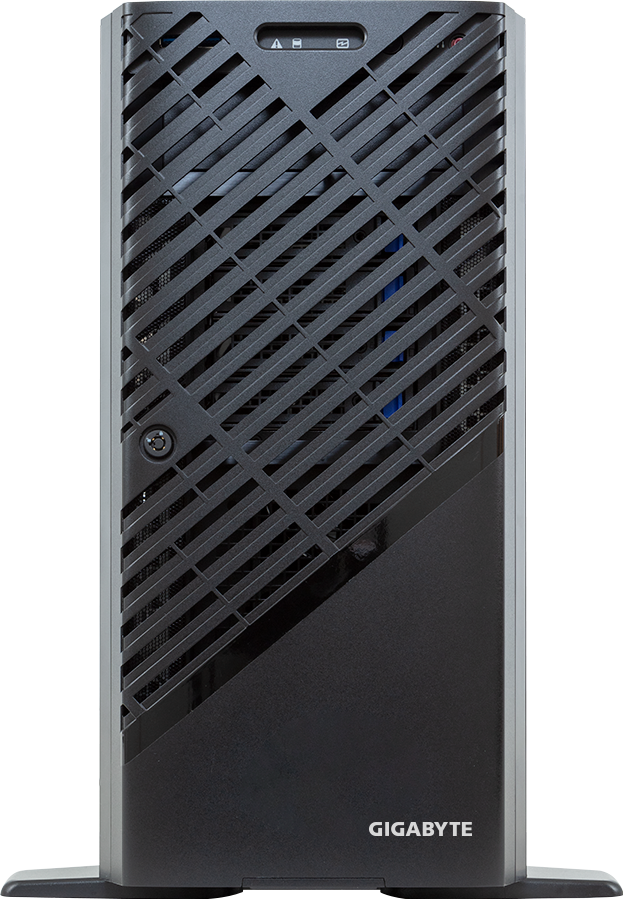

Front I/O
2 x USB 3.2 Gen1 (Type-A)
2 x Audio jacks (Audio out/Mic)
1 x Power button with LED
1 x Reset button
1 x Power LED
1 x Storage activity LED
1 x System status LED
2 x Audio jacks (Audio out/Mic)
1 x Power button with LED
1 x Reset button
1 x Power LED
1 x Storage activity LED
1 x System status LED

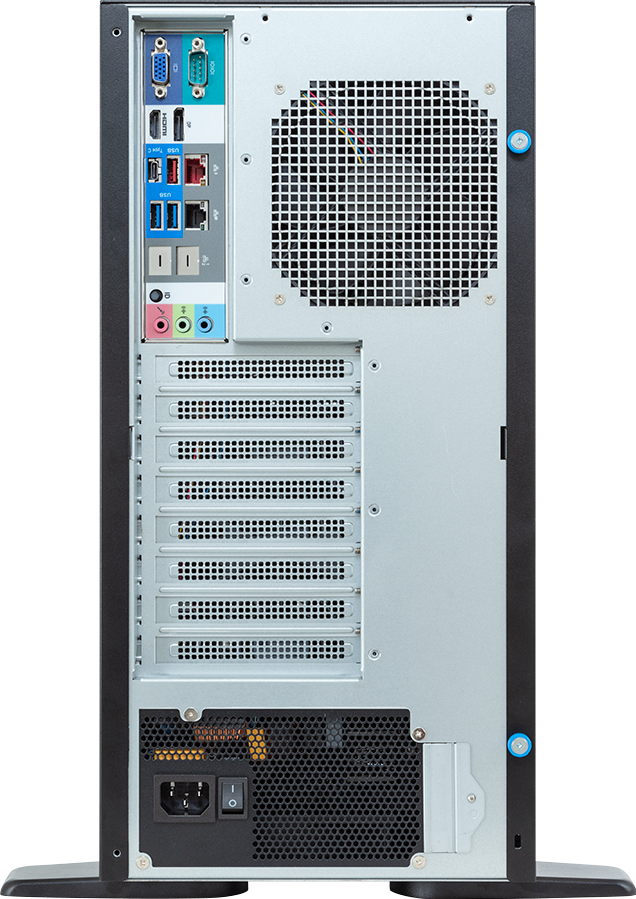

Rear I/O
1 x USB 3.2 Gen2x2 (Type-C)
3 x USB 3.2 Gen1 (Type-A)
1 x HDMI
1 x DP
1 x VGA
1 x COM
1 x RJ45 (2.5G)
1 x MLAN
3 x Audio jacks (Audio in/Audio out/Mic)
1 x ID button with LED
3 x USB 3.2 Gen1 (Type-A)
1 x HDMI
1 x DP
1 x VGA
1 x COM
1 x RJ45 (2.5G)
1 x MLAN
3 x Audio jacks (Audio in/Audio out/Mic)
1 x ID button with LED
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
Single 850W ATX 80 PLUS Gold power supply
AC Input:
- 100-240V~/ 12-6A, 60-50Hz
- 100-240V~/ 10-6A, 60-50Hz (Only for China)
DC Output:
- Max 850W/ 100-240V~
+12V/ 70.8A
+5V/ 20A
+5Vsb/ 3A
+3.3V/ 20A
AC Input:
- 100-240V~/ 12-6A, 60-50Hz
- 100-240V~/ 10-6A, 60-50Hz (Only for China)
DC Output:
- Max 850W/ 100-240V~
+12V/ 70.8A
+5V/ 20A
+5Vsb/ 3A
+3.3V/ 20A
System Management
ASPEED® AST2600 Management Controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Windows 10 (x64)
Windows 11 (x64)
Windows 11 (x64)
System Fans
Middle fan: 3 x 120x120x38mm (4,400rpm)
Rear fan: 1 x 120x120x25mm (2,800rpm)
Rear fan: 1 x 120x120x25mm (2,800rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 21.57 kg
Gross Weight: 29.6 kg
Gross Weight: 29.6 kg
Packaging Dimensions
1045 x 588 x 403 mm
Packaging Content
1 x W733-W30-AA01
1 x CPU fansink
1 x Quick installation guide
1 x CPU fansink
1 x Quick installation guide
Part Numbers
- Barebone package: 6NW733W30MR000AA01*
- Motherboard: 9MW34SP0MR-00*
- I/O shield: 12AIO-MW34S0-00R
- CPU fansink: 25ST0-0Z9222-A3R
- M.2 heatsink: 12SP2-080027-00R
- Middle fan: 25ST2-113824-S1R
- Rear fan: 25ST2-112522-S1R
- Power supply: 25EP0-208504-M0S
Optional parts:
- SATA/SAS storage kit ((A)+(B)):
   (A) 4-Bay backplane board - CBPW040: 9CBPW040NR-00*
   (B) SlimSAS cable (8i to 2x 4i): 25CFM-760822-A4R
- Rail kit for W7x3 series ((A)+(B)+(C)+(D)):
   (A) 25HB2-A66126-K0R (Slide Rail)
   (B) 25HB4-W77304-C0R (Rack Ear Right)
   (C) 25HB4-W77305-C0R (Rack Ear Left)
   (D) 25HB7-W77300-C0R (Top Cover for Assembly)
- Motherboard: 9MW34SP0MR-00*
- I/O shield: 12AIO-MW34S0-00R
- CPU fansink: 25ST0-0Z9222-A3R
- M.2 heatsink: 12SP2-080027-00R
- Middle fan: 25ST2-113824-S1R
- Rear fan: 25ST2-112522-S1R
- Power supply: 25EP0-208504-M0S
Optional parts:
- SATA/SAS storage kit ((A)+(B)):
   (A) 4-Bay backplane board - CBPW040: 9CBPW040NR-00*
   (B) SlimSAS cable (8i to 2x 4i): 25CFM-760822-A4R
- Rail kit for W7x3 series ((A)+(B)+(C)+(D)):
   (A) 25HB2-A66126-K0R (Slide Rail)
   (B) 25HB4-W77304-C0R (Rack Ear Right)
   (C) 25HB4-W77305-C0R (Rack Ear Left)
   (D) 25HB7-W77300-C0R (Top Cover for Assembly)
