S252-ZC0

Storage Server - AMD EPYC™ 7003/7002 - 2‎U DP 24+2-Bay Gen4 NVMe/SATA/SAS
  • Hardware-level root of trust support
  • Dual AMD EPYC™ 7003/7002 Series Processors
  • 8-Channel DDR4 RDIMM/LRDIMM, 16 x DIMMs
  • 24 x 3.5"/2.5" SATA/SAS hot-swappable bays
  • 2 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays on the rear side
  • Onboard 12Gb/s SAS expander
  • 2 x SATA DOM supported
  • 6 x LP PCIe Gen4 x16 slots
  • 1+1 1300W 80 PLUS Platinum redundant power supplies (-A00)
  • 1+1 1300W 80 PLUS Titanium redundant power supplies (-AT0)
Get a Quote
* Todos los materiales aquí provistos son sólo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.

SPECIFICATIONS

Dimensions (WxHxD, mm)
2U
438 x 87 x 880
Motherboard
MZC2-CE0
CPU
AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Dual processor, 7nm technology
Up to 64 cores, 128 threads per processor
cTDP up to 200W

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket
2 x LGA 4094
Socket SP3
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200 MT/s
LAN
Rear side:
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Side-accessed:
24 x 3.5"/2.5" SATA/SAS hot-swappable bays
LSI SAS35x36R expander

SAS card is required to enable the 24 drive bays

Rear side:
2 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays

Default configuration supports:
2 x 2.5" Gen4 NVMe/SATA/SAS drives on the rear side

Recommend optional 12Gb/s SAS cards:
Broadcom MegaRAID 9560-8i Storage Adapter
Broadcom HBA 9500-8i Storage Adapter
CRA4448 (Hardware RAID Card)
CSA4648 (Software HBA Card)
SAS
Supported via SAS add-in cards
RAID
Depends on SAS add-in cards
Expansion Slots
3 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0
3 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_1
Internal I/O
1 x TPM header
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x Storage activity LED
1 x System status LED

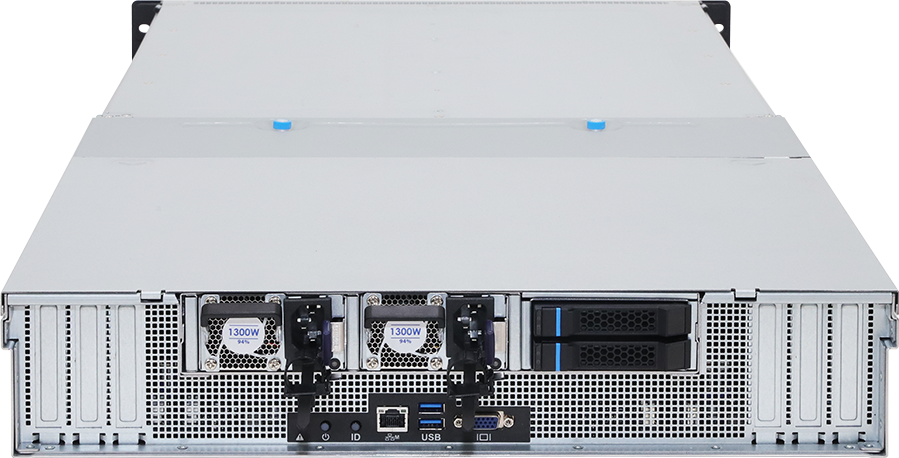

Rear I/O
2 x USB 3.0
1 x VGA
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x System status LED
Backplane Board
Left side - CBPD2C0: 12 x 3.5"/2.5" SATA/SAS ports with expander
Right side - CBPD2C1: 12 x 3.5"/2.5" SATA/SAS ports
Rear side - CBPD020: 2 x 2.5" Gen4 NVMe/SATA/SAS ports
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
Power Supply
1+1 1300W 80 PLUS Platinum redundant power supplies (-A00)

AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 6.5A

DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12V/ 105.4A
+12Vsb/ 3A

1+1 1300W 80 PLUS Titanium redundant power supplies (-AT0)

AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 7A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12.2V/ 106A
+12.2Vsb/ 3A
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage/Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility
Citrix Hypervisor 8.2.1 or later

Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

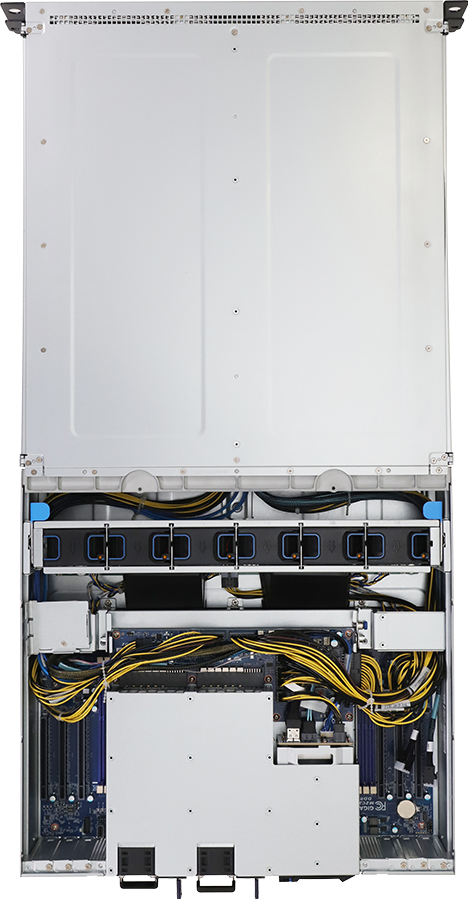

System Fans
6 x 60x60x38mm hot-swappable fan modules
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1168 x 697 x 341 mm
Packaging Content
1 x S252-ZC0
2 x CPU heatsinks
1 x 2-Section Rail kit
1 x Cable Management Arm
Part Numbers
- Barebone package: 6NS252ZC0MR-00-A*
- Motherboard: 9MZC2CE0NR-00
- 2-Section Rail kit: 25HB2-A66124-C0R
- Cable Management Arm: 25HBZ-R18100-K0R
- CPU heatsink: 25ST1-453211-A3R
- Backplane board - CBPD020: 9CBPD020NR-00
- Backplane board - CBPD2C0: 9CBPD2C0NR-00
- Backplane board - CBPD2C1: 9CBPD2C1NR-00
- Power supply (-A00): 25EP0-213001-F3S
- Power supply (-AT0): 25EP0-21300C-G1S

Optional parts:

- 12Gb/s SAS H/W RAID card : 9CRA4448NR-00
- 12Gb/s SAS S/W RAID card : 9CSA4648NR-00
- RMA packaging: 6NS252ZC0SR-RMA-A100
