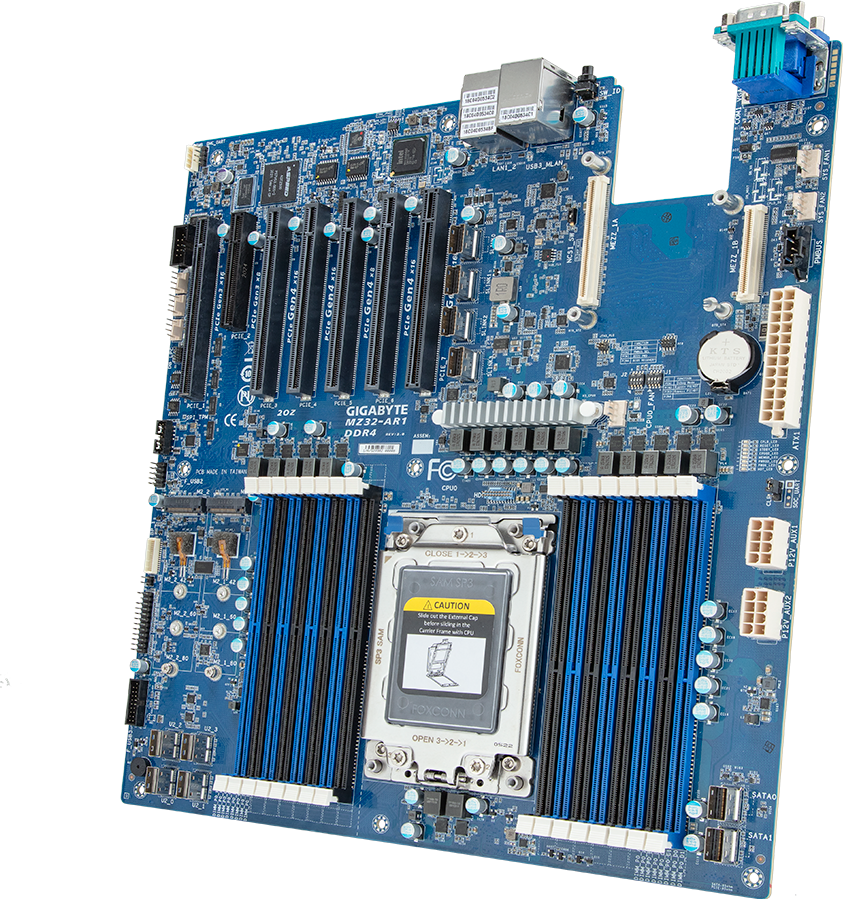

MZ32-AR1

Rev. 3.0

Motherboard - AMD EPYC™ 7003 - E-ATX UP RoT

Hardware-level root of trust support
Single AMD EPYC™ 7003 Series Processors
8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
2 x 1Gb/s LAN ports via Intel^® I350-AM2
4 x SlimSAS connectors for 4 x Gen4 NVMe
2 x SlimSAS connectors for 8 x SATA 6Gb/s
2 x M.2 slots with PCIe Gen4 x4 interface
5 x PCIe Gen4 x16 and x8 expansion slots
2 x PCIe Gen3 x16 and x8 expansion slots
1 x OCP 2.0 Gen3 x16 mezzanine slot

Get a Quote

porównania

Get a Quote

* Zamieszczony materiał został udostępniony jedynie w celach informacyjnych. GIGABYTE zastrzega sobie prawo do wprowadzania zmian w specyfikacji produktu i udostępnionych informacji o produkcie bez wcześniejszego powiadomienia.
* Przedstawiane dane są oparte na maksymalnych teoretycznych wydajnościach przedstawionym przez producentów chipsetów lub organizacji określających zakres tych specyfikacji. Rzeczywista wydajność może się różnić w zależności od konfiguracji systemu.
* Wszystkie znaki towarowe są własnością ich właścicieli.
* Z uwagi na budowę systemu, zakres pamięci może się różnić.

SPECIFICATIONS

Form Factor

E-ATX
305W x 330D mm

CPU

AMD EPYC™ 7003 Series Processors
Single processor, 7nm technology
Up to 64 cores, 128 threads
*cTDP up to 280W

*Please make sure fansink supports over 280W.

Compatible with AMD EPYC™ 7002 Series Processors

Socket

1 x LGA 4094
Socket SP3

Chipset

System on Chip

Memory

16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200*/2933 MT/s

*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.

LAN

2 x 1Gb/s LAN ports (1 x Intel^® I350-AM2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video

Integrated in Aspeed^® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Audio

N/A

Storage Interface

4 x SlimSAS connectors for 4 x Gen4 NVMe
2 x SlimSAS connectors for 8 x SATA 6Gb/s

RAID

N/A

Expansion Slots

Slot_7: PCIe x16 (Gen4 x16) slot, shared with 4 x NVMe
Slot_6: PCIe x16 (Gen4 x16) slot
Slot_5: PCIe x16 (Gen4 x8) slot
Slot_4: PCIe x16 (Gen4 x16) slot
Slot_3: PCIe x16 (Gen4 x16) slot
Slot_2: PCIe x8 (Gen3 x0 or x8) slot
Slot_1: PCIe x16 (Gen3 x16 or x8) slot, shared with Slot_2

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4; Type2 P5 support NCSI function)

2 x M.2 slots:
- M-key
- PCIe Gen4 x4
- Supports 2242/2260/2280 cards

Internal I/O

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
10 x SlimSAS connectors
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x USB 2.0 x2 header
2 x M.2 slots
10 x SlimSAS connectors
1 x Front panel header
1 x Backplane board header
1 x COM_2 header
1 x PMBus connector
1 x IPMB connector
1 x TPM header

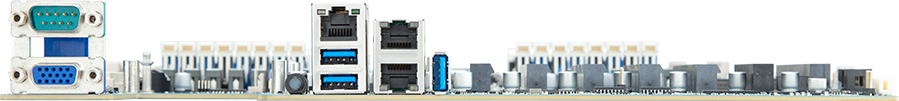

Rear I/O

3 x USB 3.2 Gen1
1 x VGA
1 x COM_1
2 x RJ45
1 x MLAN
1 x ID button with LED

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

OS Supported

Citrix Hypervisor 8.2.0 or later

Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019 (x64)
Windows Server 2022 (x64)

Board Management

Aspeed^® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

PSU Connectors

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors

Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Retail Packaging Content

1 x MZ32-AR1
1 x I/O shield
1 x Quick start guide
2 x SlimSAS to 4 x SATA 6Gb/s cables (600mm)

Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton

Bulk Packaging Content

10 x MZ32-AR1
10 x I/O shields

Carton dimensions: 600 x 473 x 495 mm

Reference Numbers

Retail: 9MZ32AR1MR-00-3*
Bulk: 9MZ32AR1NR-00-3*

Part Numbers:

- I/O shield: 12AIO-MZ32A2-00R
- SlimSAS to 4 x SATA cable (600mm): 25CFM-600800-A4R

Optional parts:

- Cables to enable Slot_7: 25CFM-450820-A4R
- Fansink: 12SF2-01A067-00R
