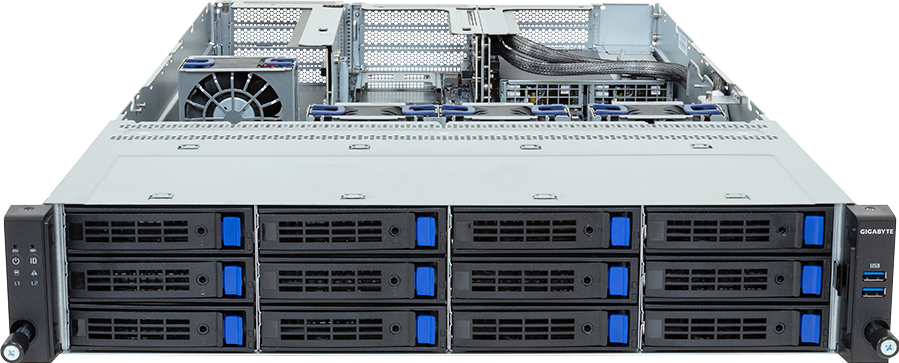

R264-SG0-AAS1

Rack Server - Intel^® Xeon^® 6 Processors - 2U UP 4 x PCIe Gen5 GPUs

# AI # AI Training # AI Inference # Visual Computing # HPC # Networking # Hybrid/Private Cloud Server

Supports 4 x Dual slot Gen5 GPUs
Single Intel^® Xeon^® 6 Processors, LGA 4710
8-Channel DDR5 RDIMM / MCR DIMM, 16 x DIMMs
Dual ROM Architecture
12 x 3.5"/2.5" SATA/SAS-4 hot-swap bays
1 x M.2 slot with PCIe Gen5 x2 interface
4 x FHFL PCIe Gen5 x16 slots for GPUs
1 x OCP NIC 3.0 PCIe Gen5 x16 slot
1+1 3200W 80 PLUS Titanium redundant power supplies

Get a Quote

porównania

Get a Quote

* Zamieszczony materiał został udostępniony jedynie w celach informacyjnych. GIGABYTE zastrzega sobie prawo do wprowadzania zmian w specyfikacji produktu i udostępnionych informacji o produkcie bez wcześniejszego powiadomienia.
* Przedstawiane dane są oparte na maksymalnych teoretycznych wydajnościach przedstawionym przez producentów chipsetów lub organizacji określających zakres tych specyfikacji. Rzeczywista wydajność może się różnić w zależności od konfiguracji systemu.
* Wszystkie znaki towarowe są własnością ich właścicieli.
* Z uwagi na budowę systemu, zakres pamięci może się różnić.

SPECIFICATIONS

Dimensions (WxHxD, mm)

2U
438 x 87.5 x 815

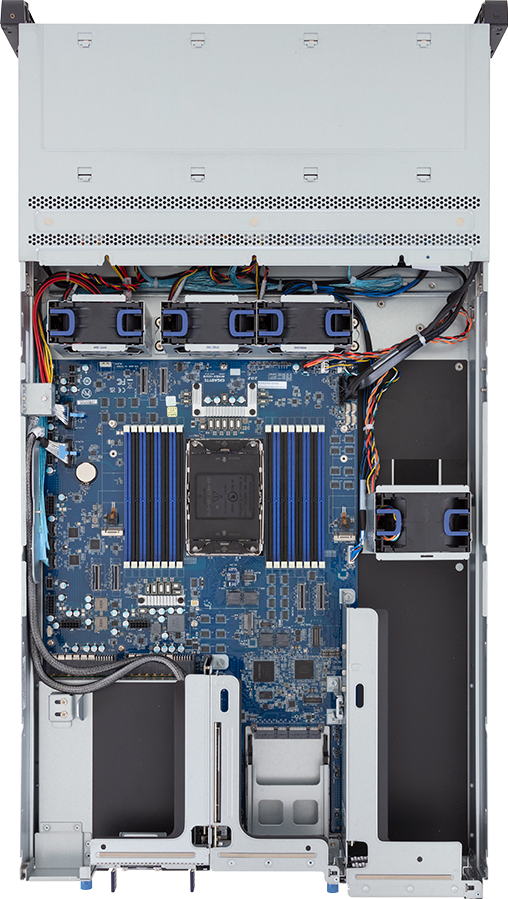

Motherboard

MSG4-GU0

CPU

Intel^® Xeon^® 6 Processors
- Intel^® Xeon^® 6700E-Series Processors
- Intel^® Xeon^® 6700P-Series Processors (available Q1'25)
- Intel^® Xeon^® 6500P-Series Processors (available Q1'25)

Single processor, TDP up to 350W

Socket

1 x LGA 4710
Socket E2

Chipset

System on Chip

Memory

16 x DIMM slots
DDR5 memory supported
8-Channel memory architecture
MCR DIMM supported^[1]
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MCR DIMM: Up to 8000 MT/s

^[1]MCR DIMMs are only supported with Intel^® Xeon^® 6 Processors with P-cores and in a 1DPC configuration.

LAN

Rear:
1 x 10/100/1000 Mbps Management LAN

Video

Integrated in Aspeed^® AST2600
- 1 x Mini-DP

Storage

Front hot-swap:
12 x 3.5"/2.5" SATA/SAS-4^[1]

Internal M.2:
1 x M.2 (2280/22110), PCIe Gen5 x2
1 x M.2 (2280/22110), PCIe Gen5 x2, disabled for SATA

^[1]SAS card is required to support SAS drives.

SAS

Require SAS add-in cards

RAID

Require RAID add-in cards
Onboard VROC key header

PCIe Expansion Slots

Riser Card CRS202P:
- 2 x FHFL x16 (Gen5 x16), for GPUs

Riser Card CRS202Q:
- 1 x FHFL x16 (Gen5 x16), for GPUs

Riser Card CRS201K:
- 1 x FHFL x16 (Gen5 x16), for GPUs

1 x OCP NIC 3.0 (Gen5 x16)
- Supports NCSI function

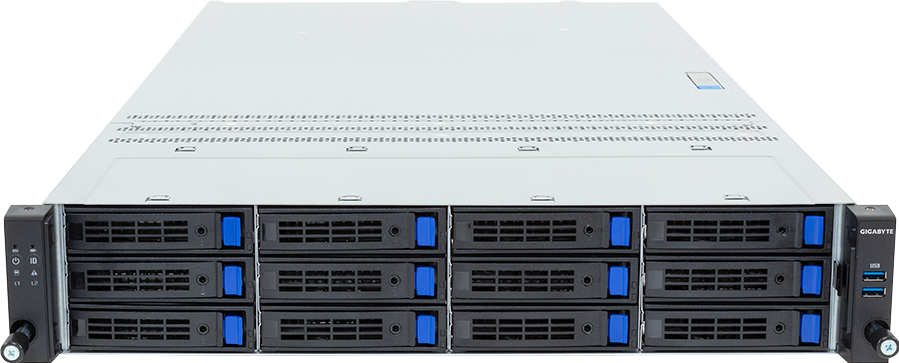

Front I/O

2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs (disabled)
1 x Storage activity LED
1 x System status LED

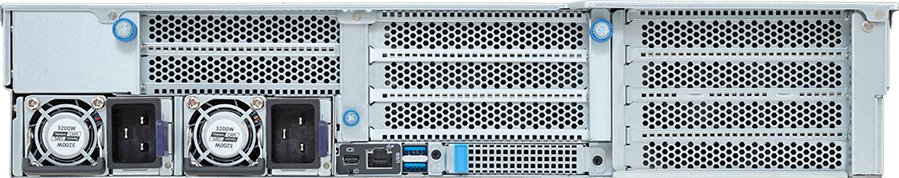

Rear I/O

2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
1 x MLAN port
1 x ID LED

Backplane Board

Speed and bandwidth:
SATA 6Gb/s or SAS-4 24Gb/s

Security Modules

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

1 x PRoT connector (only enabled on RoT SKU)

Power Supply

1+1 3200W 80 PLUS Titanium redundant power supplies^[1]

AC Input:
- 100-127V~/ 16A, 50-60Hz
- 200-220V~/ 16A, 50-60Hz
- 220-240V~/ 16A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 16A

DC Output:
- Max 1300W/ 100-127V~
+12.2V/ 106.6A
+12.2Vsb/ 3A
- Max 3000W/ 200-220V~
+12.2V/ 246A
+12.2Vsb/ 3A
- Max 3200W/ 220-240V~ or 240Vdc Input
+12.2V/ 262.3A
+12.2Vsb/ 3A

^[1]The system power supply requires C19 power cord.

System Management

Aspeed^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Please refer to OS compatibility table in support page

System Fans

3 x 80x80x38mm (18,300rpm)
1 x 80x80x56mm (15,500rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

1077 x 679 x 300 mm

Packaging Content

1 x R264-SG0-AAS1
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
1 x GPU power cable (12VHPWR, 250mm)
2 x GPU power cables (12VHPWR, 450mm)
1 x GPU power cable (12VHPWR, 550mm)
2 x Carriers
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR264SG0DR000AAS1*
- Motherboard: 9MSG4GU0UR-000*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-4Z3200-S7R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP2001: 9CFP2001NR-00*
- Backplane board - CBP20C5: 9CBP20C5NR-00*
- Fan module 80x80x38mm: 25ST2-443820-S1R
- Fan module 80x80x56mm: 25ST2-885621-A0R
- Riser card - CRS201K: 9CRS201KNR-00*
- Riser card - CRS202P: 9CRS202PNR-00*
- Riser card - CRS202Q: 9CRS202QNR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (12VHPWR, 250mm): 25CRI-250107-Y4R
- GPU power cable (12VHPWR, 450mm): 25CRI-450101-Y4R
- GPU power cable (12VHPWR, 550mm): 25CRI-550107-Y4R
- Power supply: 25EP0-232000-G1S

Optional parts:

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
