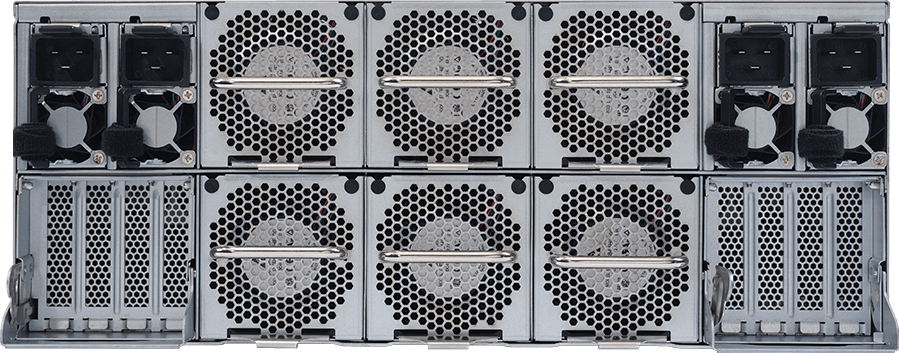

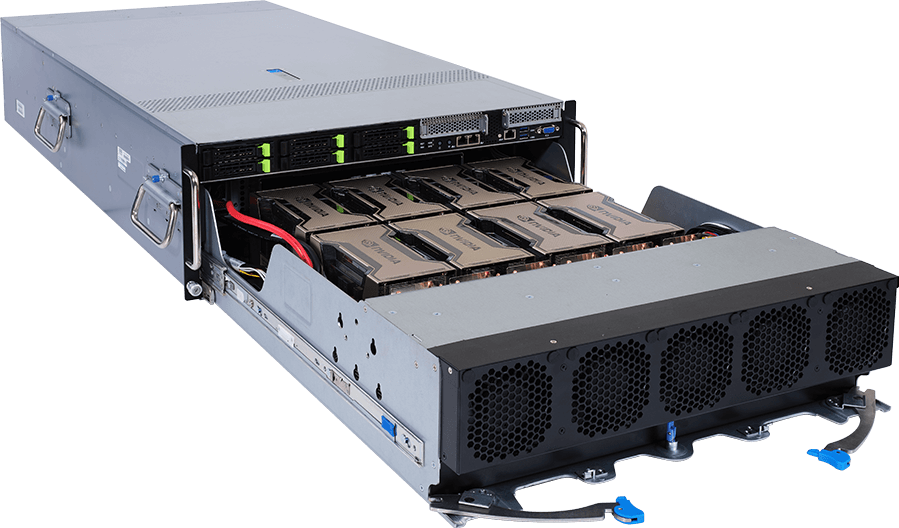

G492-ID0
Discontinued
HPC/AI Server - 3rd Gen Intel® Xeon® Scalable - 4U DP HGX™ A100 8-GPU
- NVIDIA-Certified Systems™ - Data Center Servers

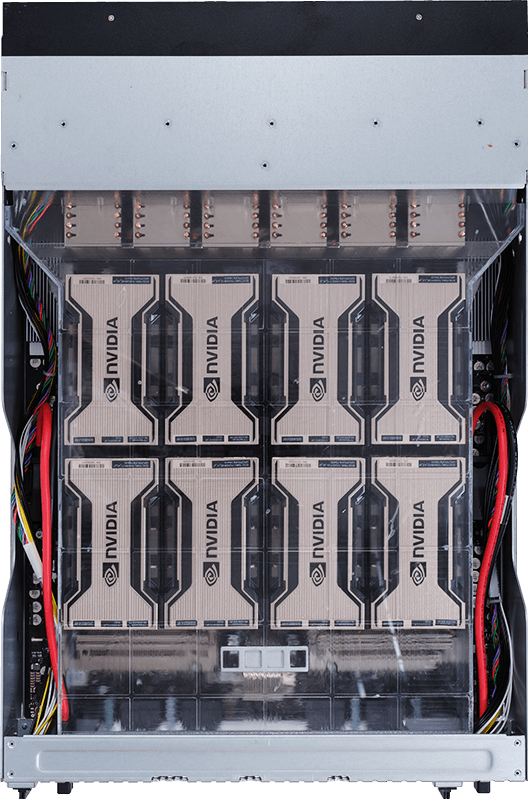

- NVIDIA HGX™ A100 with 8 x SXM4 GPUs
- NVIDIA® NVLink® and NVSwitch™ technology
- Up to 600GB/s GPU to GPU interconnection
- 3rd Gen Intel® Xeon® Scalable Processors
- Dual processor, 10nm technology
- 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
- Supports Intel® Optane™ Persistent Memory 200 series
- Dual ROM Architecture
- Intel® C621A Chipset
- 2 x 10Gb/s BASE-T LAN ports via Intel® X710-AT2
- 1 x Dedicated management port
- 6 x 2.5" Gen4 NVMe/SATA hot-swappable bays
- 2 x M.2 slots with PCIe Gen4 x4 interface
- 2 x SATA DOM supported
- 10 x LP PCIe Gen4 x16 slots
- 3+1 3000W 80 PLUS Platinum redundant power supplies
* Zamieszczony materiał został udostępniony jedynie w celach informacyjnych. GIGABYTE zastrzega sobie prawo do wprowadzania zmian w specyfikacji produktu i udostępnionych informacji o produkcie bez wcześniejszego powiadomienia.
* Przedstawiane dane są oparte na maksymalnych teoretycznych wydajnościach przedstawionym przez producentów chipsetów lub organizacji określających zakres tych specyfikacji. Rzeczywista wydajność może się różnić w zależności od konfiguracji systemu.
* Wszystkie znaki towarowe są własnością ich właścicieli.
* Z uwagi na budowę systemu, zakres pamięci może się różnić.
* Przedstawiane dane są oparte na maksymalnych teoretycznych wydajnościach przedstawionym przez producentów chipsetów lub organizacji określających zakres tych specyfikacji. Rzeczywista wydajność może się różnić w zależności od konfiguracji systemu.
* Wszystkie znaki towarowe są własnością ich właścicieli.
* Z uwagi na budowę systemu, zakres pamięci może się różnić.
SPECIFICATIONS
Dimensions (WxHxD, mm)
4U
448 x 175.2 x 945
448 x 175.2 x 945
Motherboard
MG62-G41
CPU
3rd Generation Intel® Xeon® Scalable Processors
Dual processor, 10nm technology
CPU TDP up to 270W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Dual processor, 10nm technology
CPU TDP up to 270W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket
2 x LGA 4189
Socket P+
Socket P+
Chipset
Intel® C621A Chipset
Memory
32 x DIMM slots
DDR4 memory supported only
8-channel memory architecture
RDIMM/LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
1.2V modules: 3200/2933/2666 MHz
DDR4 memory supported only
8-channel memory architecture
RDIMM/LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
1.2V modules: 3200/2933/2666 MHz
LAN
Front side:
2 x 10Gb/s BASE-T LAN ports (Intel® X710-AT2)
1 x 10/100/1000 Management LAN
2 x 10Gb/s BASE-T LAN ports (Intel® X710-AT2)
1 x 10/100/1000 Management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage
Front side:
6 x 2.5" Gen4 NVMe/SATA hot-swappable bays*
*NVMe devices do not support hot-swappable function
6 x 2.5" Gen4 NVMe/SATA hot-swappable bays*
*NVMe devices do not support hot-swappable function
SAS
N/A
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
NVIDIA HGX™ A100 8-GPU 40GB/80GB module
8 x PCIe x16 (Gen4 x16) low-profile slots on rear side, from PEX88096
1 x PCIe x16 (Gen4 x16) low-profile slot on front side, from CPU_0
1 x PCIe x16 (Gen4 x16) low-profile slot on front side, from CPU_1
2 x M.2 slots (CMTP062):
- M-key
- PCIe Gen4 x4, from PEX88096
- Supports 2242/2260/2280 cards
8 x PCIe x16 (Gen4 x16) low-profile slots on rear side, from PEX88096
1 x PCIe x16 (Gen4 x16) low-profile slot on front side, from CPU_0
1 x PCIe x16 (Gen4 x16) low-profile slot on front side, from CPU_1
2 x M.2 slots (CMTP062):
- M-key
- PCIe Gen4 x4, from PEX88096
- Supports 2242/2260/2280 cards
Internal I/O
1 x TPM header
1 x VROC connector
2 x SATA DOM connectors
1 x Front panel header
1 x VROC connector
2 x SATA DOM connectors
1 x Front panel header
Front I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x Storage activity LED
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x Storage activity LED
Rear I/O
N/A
Backplane Board
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s
PCIe Gen4 x4 or SATA 6Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
3+1 3000W 80 PLUS Platinum redundant power supplies
AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz
DC Input:
- 240Vdc/ 14A
DC Output:
- Max 1450W/ 115-127V~
+ 54V/ 26.6A
+ 12Vsb/ 3A
- Max 2900W/ 200-220V~
+ 54V/ 53.4A
+ 12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+ 54V/ 55.6A
+ 12Vsb/ 3A
Note: The system power supply requires C19 power cord.
AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz
DC Input:
- 240Vdc/ 14A
DC Output:
- Max 1450W/ 115-127V~
+ 54V/ 26.6A
+ 12Vsb/ 3A
- Max 2900W/ 200-220V~
+ 54V/ 53.4A
+ 12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+ 54V/ 55.6A
+ 12Vsb/ 3A
Note: The system power supply requires C19 power cord.
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Windows Server 2016
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 7.9 (x64) or later
Red Hat Enterprise Linux 8.2 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.2.0 or later
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 7.9 (x64) or later
Red Hat Enterprise Linux 8.2 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.2.0 or later
System Fans
11 x 80x80x80mm (17,000rpm)
6 x 40x40x56mm (31,000rpm)
4 x 40x40x28mm (25,000rpm)
6 x 40x40x56mm (31,000rpm)
4 x 40x40x28mm (25,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 51.2 kg
Gross Weight: 103 kg
Gross Weight: 103 kg
Packaging Dimensions
1176 x 782 x 822 mm
Packaging Content
1 x G492-ID0
2 x CPU heatsinks
1 x L-shape Rail kit
2 x CPU heatsinks
1 x L-shape Rail kit
Part Numbers
- Barebone package with 40GB module: 6NG492ID0MR-00-1*
- Barebone package with 80GB module: 6NG492ID0MR-00-8*
- Motherboard: 9MG62G41NR-00
- L-shape Rail kit: 25HB2-A96101-K0R
- CPU heatsink: 25ST1-25320I-M1R
- Front panel board - CFPG430: 9CFPG430NR-00
- Backplane board - CBPG060: 9CBPG060NR-00
- Fan module (40x40x56mm): 25ST2-405629-N2R
- Fan module (40x40x28mm): 25ST2-44282D-D0R
- Fan module (80x80x80mm): 25ST2-808036-S1R/25ST2-808037-S1R
- M.2 extension board - CMTP062: 9CMTP062NR-00
- Power supply: 25EP0-230003-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- RMA packaging: 6NG492ID0SR-RMA-A100
- Barebone package with 80GB module: 6NG492ID0MR-00-8*
- Motherboard: 9MG62G41NR-00
- L-shape Rail kit: 25HB2-A96101-K0R
- CPU heatsink: 25ST1-25320I-M1R
- Front panel board - CFPG430: 9CFPG430NR-00
- Backplane board - CBPG060: 9CBPG060NR-00
- Fan module (40x40x56mm): 25ST2-405629-N2R
- Fan module (40x40x28mm): 25ST2-44282D-D0R
- Fan module (80x80x80mm): 25ST2-808036-S1R/25ST2-808037-S1R
- M.2 extension board - CMTP062: 9CMTP062NR-00
- Power supply: 25EP0-230003-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- RMA packaging: 6NG492ID0SR-RMA-A100
* Zamieszczony materiał został udostępniony jedynie w celach informacyjnych. GIGABYTE zastrzega sobie prawo do wprowadzania zmian w specyfikacji produktu i udostępnionych informacji o produkcie bez wcześniejszego powiadomienia.
* Przedstawiane dane są oparte na maksymalnych teoretycznych wydajnościach przedstawionym przez producentów chipsetów lub organizacji określających zakres tych specyfikacji. Rzeczywista wydajność może się różnić w zależności od konfiguracji systemu.
* Wszystkie znaki towarowe są własnością ich właścicieli.
* Z uwagi na budowę systemu, zakres pamięci może się różnić.
* Przedstawiane dane są oparte na maksymalnych teoretycznych wydajnościach przedstawionym przez producentów chipsetów lub organizacji określających zakres tych specyfikacji. Rzeczywista wydajność może się różnić w zależności od konfiguracji systemu.
* Wszystkie znaki towarowe są własnością ich właścicieli.
* Z uwagi na budowę systemu, zakres pamięci może się różnić.
