MZ73-LM1

Discontinued

Rev. 1.x Rev. 3.x

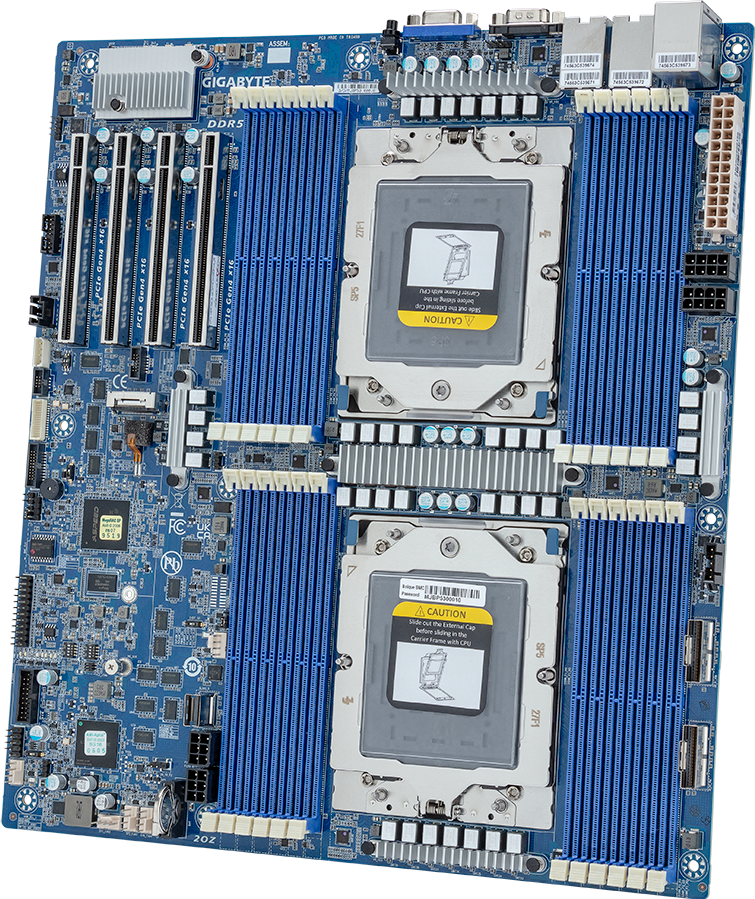

Motherboard - AMD EPYC™ 9004 - E-ATX DP PCIe Gen4 cTDP 400W

Dual AMD EPYC™ 9004 Series Processors
12-Channel DDR5 RDIMM, 24 x DIMMs
2 x 10Gb/s LAN ports via Broadcom^® BCM57416
2 x SlimSAS 8i connectors with PCIe Gen4 x8 or SATA interface
1 x SlimSAS 4i connector for 4 x SATA 6Gb/s
1 x M.2 slot with PCIe Gen4 x4 interface
4 x PCIe Gen4 x16 expansion slots

Quick Shipping See More Models More ready-to-ship models in the MZ73 series. MZ73-LM0

* کلیه موارد ارایه شده در این صفحه تنها مربوط به نوع مرجع می باشد. گیگابایت حق تغییر یا تجدید نظر محتویات را در هر لحظه و بدون اطلاع قبلی دارد.
* کارایی ارایه شده بر اساس مقادیر حداکثر نظری رابط است که توسط فروشنده چیپ ست یا سازمان هایی که مشخصات رابط را تعیین کردند، ارائه شده است. کارایی واقعی ممکن است بنا بر پیکربندی سیستم متفاوت باشد.
* کلیه لوگو ها و آرم های ثبت شده تحت مالکیت مالکین مربوطه آن ها قرار دارد.
* با توجه به معماری استاندارد رایانه های شخصی، مقدار مشخصی از حافظه جهت استفاده درونی سیستم درنظر گرفته می شود و طبیعتا مقدار واقعی حافظه سیستم کم تر از مقدار اظهار شده خواهد بود.

SPECIFICATIONS

Form Factor (WxD, mm)

E-ATX
304.8 x 335.2

CPU

AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors

Dual processor, cTDP up to 400W

^[Note]If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

2 x LGA 6096
Socket SP5

Chipset

System on Chip

Memory

24 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
RDIMM: Up to 4800 MT/s

LAN

2 x 10Gb/s LAN (1 x Broadcom^® BCM57416)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video

Integrated in Aspeed^® AST2600
- 1 x VGA port

Audio

N/A

Storage Interface

SlimSAS:
2 x SlimSAS 8i for 4 x Gen4 NVMe or 16 x SATA, from CPU_1
1 x SlimSAS 4i for 4 x SATA, from CPU_0

M.2:
1 x M.2 (2280/22110), PCIe Gen4 x4, from CPU_0

RAID

N/A

PCIe Expansion Slots

Slot_4: PCIe x16 (Gen4 x16), from CPU_0
Slot_3: PCIe x16 (Gen4 x16), from CPU_0
Slot_2: PCIe x16 (Gen4 x16), from CPU_1
Slot_1: PCIe x16 (Gen4 x16), from CPU_1

2 x SlimSAS 8i (PCIe Gen4 x8 or SATA), from CPU_1^[1]

^[1]The connector supports SATA by default. To enable the other option, please refer to the manual and adjust the settings in the BIOS.

Internal I/O

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x 6-pin ATX 12V power connectors
2 x CPU fan headers
4 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x M.2 slot
2 x SlimSAS 8i connectors
1 x SlimSAS 4i connector
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x TPM header

Rear I/O

2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
1 x COM port
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED

Security Modules

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

OS Supported

Please refer to OS compatibility table in support page

Board Management

Aspeed^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

PSU Connectors

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x 6-pin ATX 12V power connectors

Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Retail Packaging Content

1 x MZ73-LM1
1 x I/O shield
1 x Quick start guide
1 x SlimSAS 4i to 4 x SATA 6Gb/s cable (600mm)

Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton

Bulk Packaging Content

10 x MZ73-LM1
10 x I/O shields

Carton dimensions: 600 x 473 x 517 mm

Reference Numbers

Retail: 9MZ73LM1MR-000-1*
Bulk: 9MZ73LM1NR-000-1*

Part Numbers:

- I/O shield: 12AIO-MZ73L0-00R
- SlimSAS 4i to 4 x SATA cable (600mm): 25CFM-600800-A4R

Optional parts:

- CPU fansink: 25ST0-0Z6022-C1R
