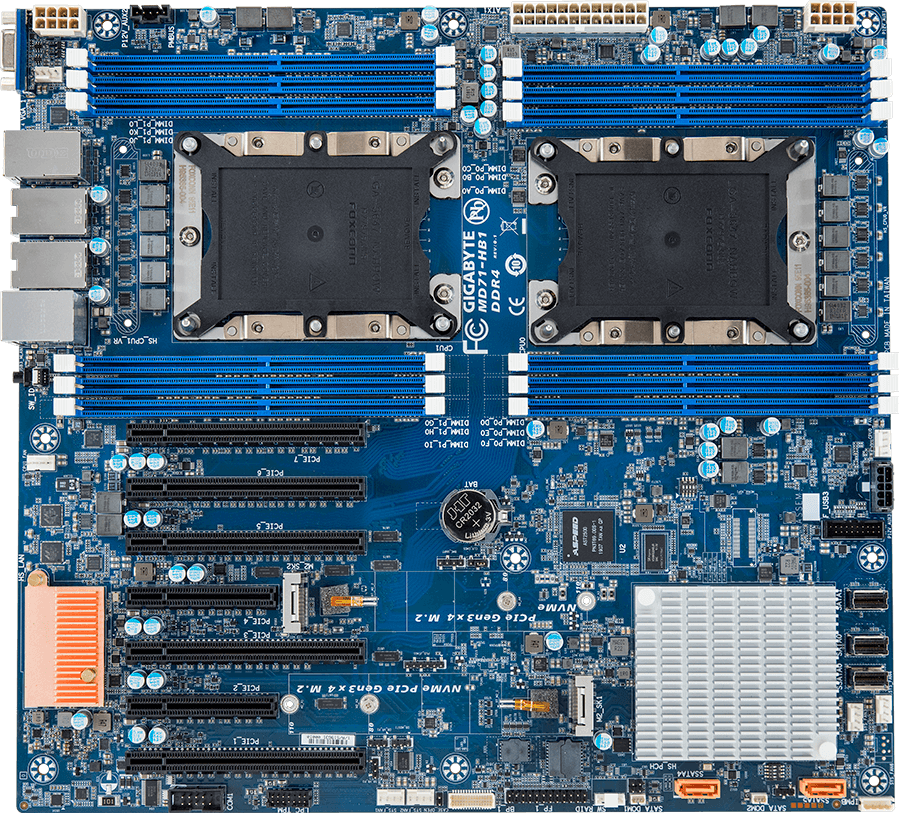

MD71-HB1
Intel® C622 Chipset
- 2nd Gen. Intel® Xeon® Scalable Processors
- Dual processor, LGA3647
- 6-Channel RDIMM/LRDIMM DDR4, 12 x DIMMs
- Supports Intel® Optane™ DC Persistent Memory
- 2 x 10Gb/s BASE-T and 2 x 1Gb/s LAN ports
- 1 x Dedicated management port
- 3 x SlimSAS for 12 x SATA 6Gb/s ports
- 2 x SATA DOM supported
- 2 x M.2 slots with PCIe Gen3 x4 interface
- 7 x PCIe Gen3 x16 and x8 expansion slots
- Aspeed® AST2500 remote management controller
* Todos los materiales aquí provistos son sólo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
SPECIFICATIONS
Form Factor
E-ATX
305W x 330D (mm)
305W x 330D (mm)
CPU
2nd Generation Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor
Dual processor, TDP up to 205W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor
Dual processor, TDP up to 205W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket
Chipset
Intel® C622 Chipset
Memory
12 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
1.2V modules: 2933/2666/2400 MHz
NOTE:
Memory frequency 2933MHz is for 2nd Generation Intel® Xeon® Scalable Processors only
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
1.2V modules: 2933/2666/2400 MHz
NOTE:
Memory frequency 2933MHz is for 2nd Generation Intel® Xeon® Scalable Processors only
LAN
2 x 10Gb/s BASE-T LAN ports (1 x Intel® X557-AT2)
2 x 1Gb/s LAN ports
1 x 10/100/1000 management LAN
2 x 1Gb/s LAN ports
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Audio
N/A
SAS
N/A
SATA
3 x SlimSAS for 12 x SATA III 6Gb/s ports
2 x 7-pin SATA III 6Gb/s with SATA DOM supported
2 x 7-pin SATA III 6Gb/s with SATA DOM supported
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
Slot_7: 1 x PCIe x16 (Gen3 x16 bus) slot, from CPU_1
Slot_6: 1 x PCIe x16 (Gen3 x16 bus) slot, from CPU_1
Slot_5: 1 x PCIe x16 (Gen3 x16 bus) slot, from CPU_1
Slot_4: 1 x PCIe x8 (Gen3 x8 bus) slot, from CPU_1, shared with Slot_5
Slot_3: 1 x PCIe x16 (Gen3 x16 bus) slot, from CPU_0
Slot_2: 1 x PCIe x8 (Gen3 x8 bus) slot, from CPU_0, shared with M.2 PCIe x4 bus
Slot_1: 1 x PCIe x16 (Gen3 x16 bus) slot, from CPU_0
2 x M.2 slots:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports NGFF-2280/22110 cards
Slot_6: 1 x PCIe x16 (Gen3 x16 bus) slot, from CPU_1
Slot_5: 1 x PCIe x16 (Gen3 x16 bus) slot, from CPU_1
Slot_4: 1 x PCIe x8 (Gen3 x8 bus) slot, from CPU_1, shared with Slot_5
Slot_3: 1 x PCIe x16 (Gen3 x16 bus) slot, from CPU_0
Slot_2: 1 x PCIe x8 (Gen3 x8 bus) slot, from CPU_0, shared with M.2 PCIe x4 bus
Slot_1: 1 x PCIe x16 (Gen3 x16 bus) slot, from CPU_0
2 x M.2 slots:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports NGFF-2280/22110 cards
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x SATA DOM power pin headers
3 x SlimSAS connectors
2 x 7-pin SATA connectors
2 x M.2 slots
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x COM header
1 x LPC TPM header
1 x VROC connector
1 x Front panel header
1 x HDD backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Case open header
2 x 8-pin ATX 12V power connectors
2 x SATA DOM power pin headers
3 x SlimSAS connectors
2 x 7-pin SATA connectors
2 x M.2 slots
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x COM header
1 x LPC TPM header
1 x VROC connector
1 x Front panel header
1 x HDD backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Case open header

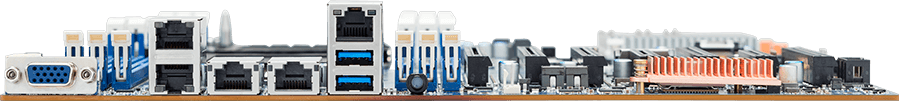

Rear I/O
2 x USB 3.0
1 x VGA
4 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
4 x RJ45
1 x MLAN
1 x ID button with LED
TPM
1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000
Optional TPM2.0 kit: CTM000
OS Supported
For Skylake processors:
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Red Hat Enterprise Linux 6.9 (x64) or later
Red Hat Enterprise Linux 7.3 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 11 SP4 (x64) or later
SUSE Linux Enterprise Server 12 SP2 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later
Ubuntu 16.04.1 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later
For Cascade Lake processors:
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 Update2 or later
VMware ESXi 6.7 Update1 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.5.0 or later
Citrix Hypervisor 8.0.0 or later
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Red Hat Enterprise Linux 6.9 (x64) or later
Red Hat Enterprise Linux 7.3 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 11 SP4 (x64) or later
SUSE Linux Enterprise Server 12 SP2 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later
Ubuntu 16.04.1 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later
For Cascade Lake processors:
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 Update2 or later
VMware ESXi 6.7 Update1 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.5.0 or later
Citrix Hypervisor 8.0.0 or later
Board Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x 8-pin ATX 12V power connectors
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x MD71-HB1
1 x I/O shield
1 x Quick Installation Guide
1 x SlimSAS for 8 x SATAIII 6Gb/s cable
2 x Non-Fabric CPU carriers
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton
1 x I/O shield
1 x Quick Installation Guide
1 x SlimSAS for 8 x SATAIII 6Gb/s cable
2 x Non-Fabric CPU carriers
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton
Bulk Packaging Content
10 x MD71-HB1
10 x I/O shields
20 x Non-Fabric CPU carriers
Carton dimensions: 600 x 473 x 495 mm
10 x I/O shields
20 x Non-Fabric CPU carriers
Carton dimensions: 600 x 473 x 495 mm
Reference Numbers
Retail: 9MD71HB1MR-00
Bulk: 9MD71HB1NR-00
Bulk: 9MD71HB1NR-00
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
SUPPORT
Controlador
BIOS
Utilidad
Firmware
QVL
- All
- All
- Windows Server 2019
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Linux
Chipset
Chipset
Versión
Tamaño
Fecha
Intel® Chipset Driver
Version : 10.1.17861.8101
3.34 MB
Apr 18, 2019
S.O.: Windows Server 2012 R2 64bit,Windows Server 2016 64bit,Windows Server 2019
Intel® Chipset Driver
Version : 10.1.18228.8176
3.12 MB
Dec 29, 2019
S.O.: Windows Server 2012 R2 64bit,Windows Server 2016 64bit,Windows Server 2019
LAN
LAN
Versión
Tamaño
Fecha
Intel® LAN Driver and Utility
Version : 23.5
487.48 MB
Apr 18, 2019
S.O.: Windows Server 2012 R2 64bit,Linux,Windows Server 2016 64bit,Windows Server 2019
SATA RAID
SATA RAID
Versión
Tamaño
Fecha
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 6.0.0.1357
6.54 MB
Apr 19, 2019
S.O.: Windows Server 2012 R2 64bit,Windows Server 2016 64bit,Windows Server 2019
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 6.0.0.1357
265.09 MB
Apr 21, 2019
S.O.: Windows Server 2012 R2 64bit,Windows Server 2016 64bit,Windows Server 2019
Utility
BIOS
Descripción
Versión
Tamaño
Fecha
Update for security: Vulnerabilities in EDK2 NetworkPkg include CVE-2023-45236, CVE- 2023-45237.
Version : R18
20.28 MB
May 27, 2024
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
Utilidad
Descripción
Versión
Tamaño
Fecha
GSM CLI
Version : 2.1.77
147.89 MB
Sep 27, 2024
S.O.: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
S.O.: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
S.O.: Linux,Windows Server 2016 64bit,Windows Server 2019
Firmware
Descripción
Versión
Tamaño
Fecha
BMC Firmware with embedded GIGABYTE Management Console
(AST2500 AMI)
(AST2500 AMI)
Version : 12.61.21
105.38 MB
Apr 11, 2024
English
Manual
Descripción
Versión
Tamaño
Fecha
Descripción
Versión
Tamaño
Fecha
RESOURCES
Success Case
Success Case | April 28, 2023
Logistics Leader Initiates Smart Transformation with Customized Server Solutions from GIGABYTE
A wave of intelligent transformation is sweeping through the global logistics sector. A major player in North America was looking to optimize its work flow and upgrade the sorting system in its distribution centers. GIGABYTE provided custom-built server solutions to help the client achieve peak performance and reliability. As a result, the efficiency of their deliveries and the quality of their services were drastically improved.
Success Case | April 01, 2023
ArchiFiction Achieves Naked-Eye 3D Virtual Reality with GIGABYTE Workstations
n'Space, a projector-based platform, is capable of implementing mixed reality without wearable devices. Users can immerse in a virtual environment and interact with 3D projections without the need to cover their faces with electronics. The real world just got an expansion pack in the infinite realm of the imagination. ArchiFiction, the company behind the invention, optimized the virtual experience with GIGABYTE's solution, which can process large amounts of data with high performance.
Video
News
Security & Technical Advisory
Others
Back to MD71-HB1
