Dimensions (WxHxD, mm)
1OU
537 x 45 x 805.7
CPU
5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Dual processor, TDP up to 350W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Memory
24 x DIMM slots
DDR5 memory supported
8-Channel memory per processor
5th Gen Intel® Xeon®:
RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel® Xeon®:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel® Xeon® Max Series:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
LAN
Top:
2 x 10Gb/s LAN (1 x Intel® X710-AT2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Storage
Top hot-swap:
4 x 15mm E1.S NVMe
- (2 x NVMe from CPU_0, 2 x NVMe from CPU_1)
Optional internal M.2 (COMTP61):
2 x M.2 (2280/22110), SATA, from CPU_1
PCIe Expansion Slots
Riser Card CORC206 x 2:
- 1 x FHFL x16 (Gen5 x16) or 2 x FHFL x16 (Gen5 x8), from CPU_0, for GPUs
- 1 x FHFL x16 (Gen5 x16) or 2 x FHFL x16 (Gen5 x8), from CPU_1, for GPUs
Riser Card CORC207 x 2:
- 1 x FHFL x16 (Gen5 x16) or 2 x FHFL x16 (Gen5 x8), from CPU_0, for GPUs
- 1 x FHFL x16 (Gen5 x16) or 2 x FHFL x16 (Gen5 x8), from CPU_1, for GPUs
Riser Card CRSG01F x 2:
- 1 x LP x16 (Gen5 x16), from CPU_0
- 1 x LP x16 (Gen5 x16), from CPU_1
Top I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED
System Management
Aspeed
® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
Additional certifications:
Windows Server 2022
Packaging Dimensions
1095 x 709 x 235 mm
Packaging Content

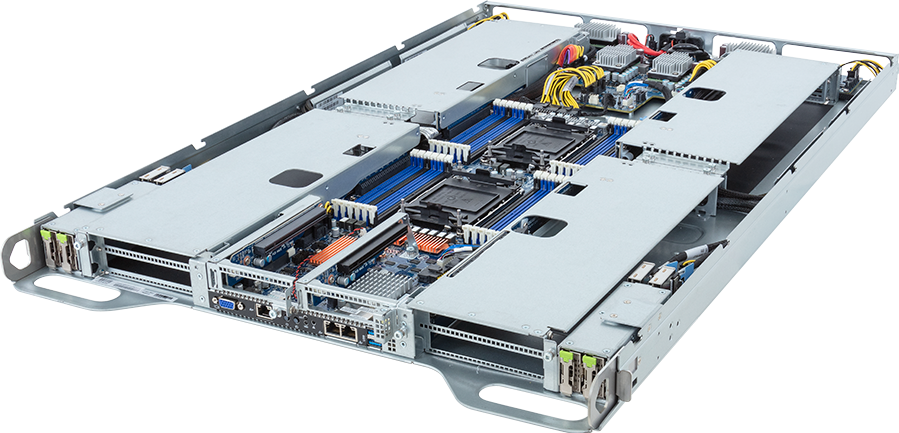

1 x TO15-S40-IA01
2 x CPU heatsinks
4 x GPU power cables (12VHPWR, 550mm)
6 x Carriers
Part Numbers
- Barebone package (5th/4th Gen): 6NTO15S40DR000IB01*
- Barebone package (4th Gen): 6NTO15S40DR000IA01*
- Motherboard: 9MS43G20UR-000*
- CPU heatsink: 25ST1-25320R-C1R/25ST1-25320S-C1R
- Riser card - CORC206: 9CORC206NR-00*
- Riser card - CORC207: 9CORC207NR-00*
- Riser card - CRSG01F: 9CRSG01FNR-00*
- EDSFF Base board - COBP720: COBP720NR-00*
- EDSFF Bypass card - CSPP010: 9CSPP010NR-00*
- GPU power cable (12VHPWR, 550mm): 25CRI-55030B-Y4R
Optional parts:
- M.2 expansion card - COMTP61: 9COMTP61NR-00
- RMA packaging: 6NTO15S40SR-RMA-I100
No. of Bus Bars
1 x 48V Bus Bar
