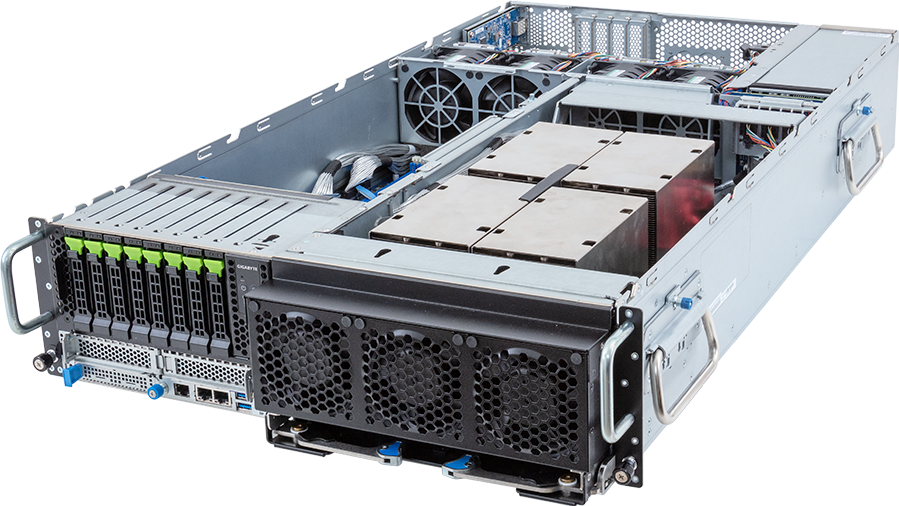

G363-ZR0- AAX4
HPC/AI Server - AMD EPYC™ 9005/9004 - 3U DP HGX™ H200 4-GPU
- NVIDIA HGX™ H200 4-GPU
- 4th-generation NVIDIA® NVLink® 900GB/s
- Dual AMD EPYC™ 9005/9004 Series Processors
- 12-Channel DDR5 RDIMM, 24 x DIMMs
- Dual ROM Architecture
- 2 x 10Gb/s LAN ports via Broadcom® BCM57416
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 4 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
- 4 x 2.5" Gen5 NVMe hot-swap bays
- 1 x M.2 slot with PCIe Gen4 x4 interface
- 6 x LP PCIe Gen5 x16 slots
- 2+1 3000W 80 PLUS Titanium redundant power supplies
* Todos los materiales aquí provistos son sólo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
SPECIFICATIONS
Dimensions (WxHxD, mm)
3U
448 x 130 x 800
448 x 130 x 800
Motherboard
MZ83-HD1
CPU
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 400W [1][2]
[1] Please refer to the QVL on the support page or contact our sales representatives for verified CPU SKUs.
[2] The ambient temperature is limited to 30°C when NVIDIA BlueField®-3 DPUs are installed.
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 400W [1][2]
[1] Please refer to the QVL on the support page or contact our sales representatives for verified CPU SKUs.
[2] The ambient temperature is limited to 30°C when NVIDIA BlueField®-3 DPUs are installed.
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 6096
Socket SP5
Socket SP5
Chipset
System on Chip
Memory
24 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
AMD EPYC™ 9005:
RDIMM: Up to 6000 MT/s
AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s
DDR5 memory supported
12-Channel memory architecture
AMD EPYC™ 9005:
RDIMM: Up to 6000 MT/s
AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s
LAN
Front (I/O board - CLBH160):
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Rear:
2 x 10Gb/s LAN (1 x Broadcom® BCM57416)
- Support NCSI function
Rear (MLAN board - CDB66):
1 x 10/100/1000 Mbps Management LAN
[Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default.
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Rear:
2 x 10Gb/s LAN (1 x Broadcom® BCM57416)
- Support NCSI function
Rear (MLAN board - CDB66):
1 x 10/100/1000 Mbps Management LAN
[Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default.
Video
Integrated in Aspeed® AST2600
- 1 x Mini-DP
- 1 x Mini-DP
Storage
Front hot-swap:
4 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
4 x 2.5" Gen5 NVMe
- (4 x NVMe from CPU_0, 4 x NVMe from CPU_1)
- (SATA from CPU_0)
Internal M.2 (CMTP192):
1 x M.2 (2280/22110), PCIe Gen4 x4, from CPU_0
[1] SAS card is required to support SAS drives.
4 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
4 x 2.5" Gen5 NVMe
- (4 x NVMe from CPU_0, 4 x NVMe from CPU_1)
- (SATA from CPU_0)
Internal M.2 (CMTP192):
1 x M.2 (2280/22110), PCIe Gen4 x4, from CPU_0
[1] SAS card is required to support SAS drives.
SAS
Require SAS add-in cards
RAID
Require RAID add-in cards
Modular GPU
NVIDIA HGX™ H200 with 4 x SXM GPUs
PCIe Expansion Slots
Front:
1 x LP x16 (Gen5 x16), from CPU_0
1 x LP x16 (Gen5 x16), from CPU_1
1 x OCP NIC 3.0, from CPU_0, disabled
Rear:
4 x LP x16 (Gen5 x16), from PEX89144, support RDMA
- (Equipped with full-height brackets)
1 x LP x16 (Gen5 x16), from CPU_0
1 x LP x16 (Gen5 x16), from CPU_1
1 x OCP NIC 3.0, from CPU_0, disabled
Rear:
4 x LP x16 (Gen5 x16), from PEX89144, support RDMA
- (Equipped with full-height brackets)
Front I/O
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x Storage activity LED
1 x System status LED
I/O board - CLBH160:
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports (Intel I350)
1 x MLAN port (default)
1 x ID button with LED
1 x Reset button
1 x Storage activity LED
1 x System status LED
I/O board - CLBH160:
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports (Intel I350)
1 x MLAN port (default)
Rear I/O
2 x RJ45 ports (Broadcom BCM57416)
MLAN board - CDB66:
1 x MLAN port
MLAN board - CDB66:
1 x MLAN port
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
2+1 3000W 80 PLUS Titanium redundant power supplies [1]
AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 14A
DC Output:
- Max 1450W/ 115-127V~
+54V/ 26.6A
+12Vsb/ 3A
- Max 2900W/ 200-220V~
+54V/ 53.4A
+12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 14A
DC Output:
- Max 1450W/ 115-127V~
+54V/ 26.6A
+12Vsb/ 3A
- Max 2900W/ 200-220V~
+54V/ 53.4A
+12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
7 x 80x80x80mm (17,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1176 x 782 x 295 mm
Packaging Content
1 x G363-ZR0-AAX4
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x L-type Rail kit
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x L-type Rail kit
Part Numbers
- Barebone w/ NVIDIA module: 6NG363ZR0DR000ACX4*
- Motherboard: 9MZ83HD1UR-000-3*
- L-type Rail kit: 25HB2-A86102-K0R
- CPU heatsink: 25ST1-15320H-A3R
- GPU heatsink: 25ST1-3332G0-F2R
- Front panel board - CFP1000: 9CFP1000NR-00*
- Backplane board - CBP2081: 9CBP2081NR-00*
- Fan module: 25ST2-808035-S1R
- Fan module: 25ST2-888030-S1R
- Fan module: 25ST2-888031-S1R
- M.2 expansion card - CMTP192: 9CMTP192NR-00*
- Riser card - CRSH01R: 9CRSH01RNR-00*
- OCP card - CNVC171: 9CNVC171NR-00*
- Front I/O board (incl. I350-AM2) - CLBH160: 9CLBH160NR-00*
- PCIe switch board - CPBG901: 9CPBG901NR-00*
- Rear MLAN board - CDB66: 9CDB66NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-23000A-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NG363ZR0SR-RMA-A100
- Motherboard: 9MZ83HD1UR-000-3*
- L-type Rail kit: 25HB2-A86102-K0R
- CPU heatsink: 25ST1-15320H-A3R
- GPU heatsink: 25ST1-3332G0-F2R
- Front panel board - CFP1000: 9CFP1000NR-00*
- Backplane board - CBP2081: 9CBP2081NR-00*
- Fan module: 25ST2-808035-S1R
- Fan module: 25ST2-888030-S1R
- Fan module: 25ST2-888031-S1R
- M.2 expansion card - CMTP192: 9CMTP192NR-00*
- Riser card - CRSH01R: 9CRSH01RNR-00*
- OCP card - CNVC171: 9CNVC171NR-00*
- Front I/O board (incl. I350-AM2) - CLBH160: 9CLBH160NR-00*
- PCIe switch board - CPBG901: 9CPBG901NR-00*
- Rear MLAN board - CDB66: 9CDB66NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-23000A-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NG363ZR0SR-RMA-A100
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
