Extreme Multi-GPU Configurations
Flexible graphics capabilities supported for either CrossFire™ or SLI™ action, deliver the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

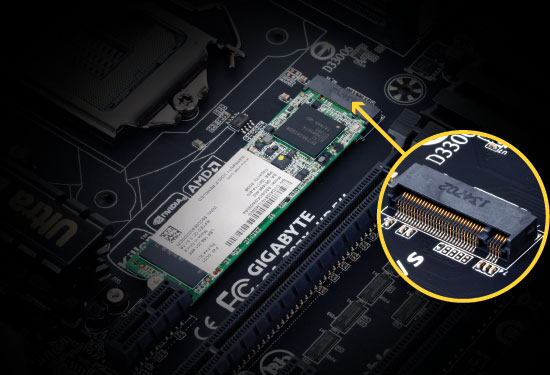

New Generation M.2 Onboard Connector
GIGABYTE 9 series motherboards come equipped with an onboard M.2 slot, providing users PCI-Express connectivity for SSD devices. Delivering up to 10 Gb/s data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA and even SATA Revision 3 (6Gb/s) storage devices.

M.2 SSD not included
M.2

SATA3

 Up to 10 Gb/s

 Up to 6 Gb/s
Data Transfer

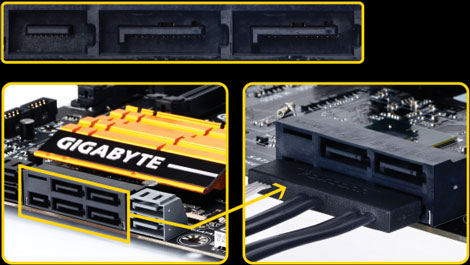

New Generation SATA EXPRESS Connector

GIGABYTE 9 series motherboards feature an onboard SATA Express connector which provides performance far superior to that of current SATA technologies. SATA Express features data transfer rates of up to 10Gb/s, considerably higher than SATA Revision 3 (6Gb/s), which won’t bottleneck faster NAND flash technologies in cutting edge SSDs. SATA Express combines the benefits of PCI-Express and SATA to provide much higher bandwidth, allowing SATA Express based drives to perform at similar speeds as PCI-Express based drives.
SATA
EXPRESS

SATA3

 Up to 10 Gb/s

 Up to 6 Gb/s
Data Transfer

SATA Express cable not included.






Killer Networking

NO LAG, JUST FRAG!
Select GIGABYTE 9 series motherboards feature the Killer™ E2200 from Qualcomm Atheros, a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and online media performance compared to standard solutions. The Killer™ E2200 features Advanced Stream Detect technology, which identifies and prioritizes all network traffic to ensure important applications that require high-speed connectivity are prioritized over less important traffic.


Intel® Gigabit LAN

Additional GIGABYTE 9 series motherboards feature Intel® Gigabit LAN networking, a popular choice with gamers, delivers several performance-enhancing features such as advanced interrupt handling to help reduce CPU overhead and Jumbo Frame support for extra large data packets.


Up to 50%
Faster Gaming Traffic

Up to 300%
Faster Video Traffic


Testing result for reference only. Results may differ according to system configuration.

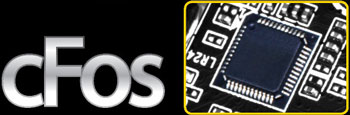

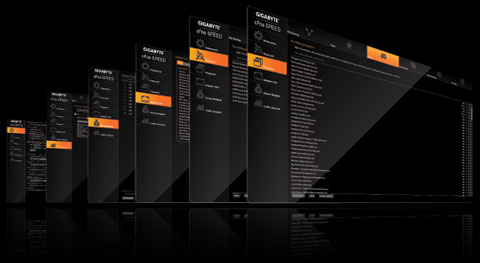

Intel® GbE LAN with CFOS Internet Accelerator Software
GIGABYTE 9 series motherboards with intel® GbE LAN feature cFos Speed, a network traffic management application which helps to improve network latency, maintaining low ping times to deliver better responsiveness in a crowded LAN environment. cFos Speed works in a similar way to an OS driver, monitoring network traffic packets at the application layer, allowing optimization and improved network performance for specific applications.







GbE LAN with GIGABYTE LAN Optimizer
GIGABYTE LAN Optimizer is designed to allow the user to manage different types of network traffic so that data streams such as HD media, web browsing or online gaming can be prioritized, taking precedence over large data downloads that tend to strangle overall network bandwidth.








CFOS / LAN Optimizer feature may vary by model.




Realtek ALC1150 115dB SNR HD Audio with Built-in Rear Audio Amplifier
115dB SNR HD Audio
The ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality.
Built-in Rear Audio Amplifier
Specially designed for gamers, GIGABYTE 9 series Ultra Durable™ motherboards utilize a high-capacity amplifier which is able to drive 600Ω loads, giving gamers a fuller range of dynamic sound with crisper details and less distortion when using high quality professional headphones.

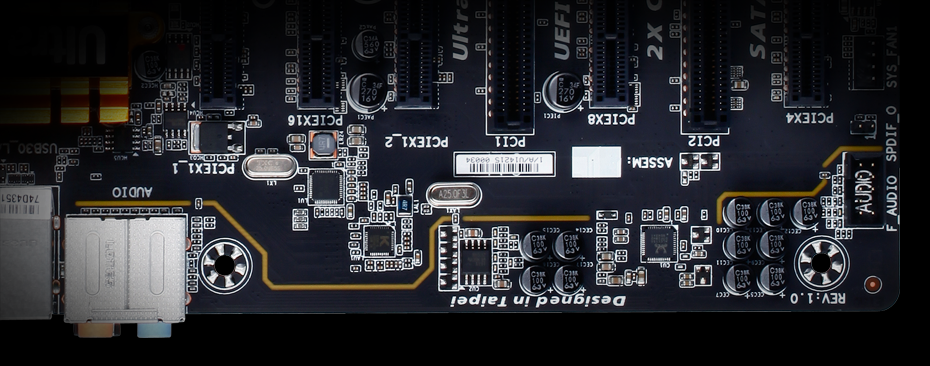

Dedicated Audio Hardware Zone
+ Separation on the PCB layer protects the board's sensitive analog audio components.
+ Separate analog and digital ground to protect against Electromagnetic Interference (EMI).

The above photos are for reference only.
* Features may vary by model.






Locating the right and left audio channels on separate PCB layers, GIGABYTE 9 Series Ultra Durable™ motherboards are able to eliminate channel crosstalk and maintain the best audio quality.


Left Audio Channel
PCB layer






Right Audio Channel
PCB layer

* Features may vary by model.






GIGABYTE App Center Including EasyTune™ and Cloud Station™ Utilities

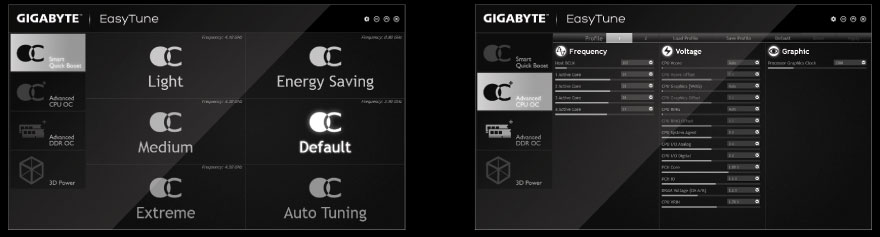

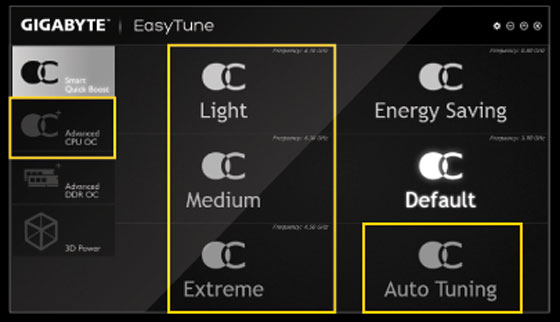

EasyTune™
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment.

With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
Get a Free Boost of Performance
Get the the highest levels of performance from your PC with easy to use GIGABYTE overclocking features.

Advanced Settings:
For seasoned pro’s.

Easy OC Presets:
One click automatic
CPU and RAM Overclock

Auto-Tuning:
Automatically find your PC’s
optimal performance level

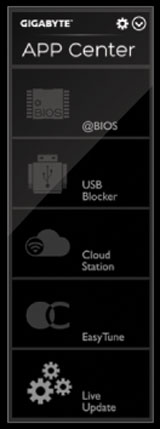

APP Center
GIGABYTE APP Center gives you easy access to wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE apps installed on your system.






GIGABYTE App Center Including EasyTune™ and Cloud Station™ Utilities

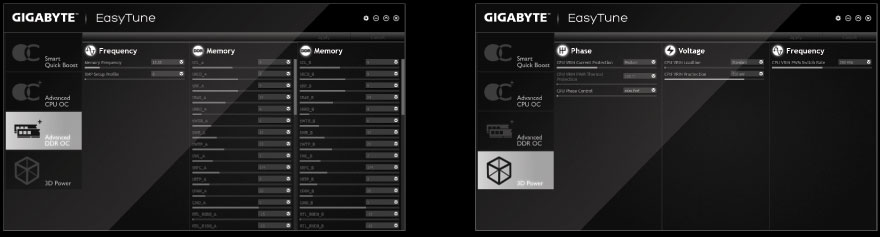

• Smart Quick Boost provides users with different levels of CPU
frequencies to choose to achieve desired system performance.
• Advanced CPU OC allows users to set CPU base clock, frequency,
and voltages, and integrated graphics frequency.

• Advanced DDR OC allows users to set the memory clock.
• 3D Power allows users to change power phase, voltage, and
frequency settings.

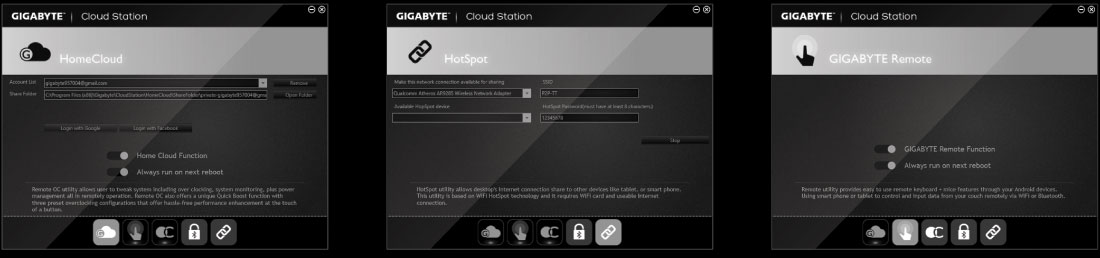

Cloud Station™
GIGABYTE Cloud Station™ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control desktop PCs via wireless connection.

HomeCloud
HomeCloud allows users to share the files between your smart phone/tablet device and computer or back up the files from the device to the computer.

HotSpot
HotSpot turns your computer into a virtual wireless access point and allows you to share your connection with your other wireless devices.

GIGABYTE Remote
GIGABYTE Remote allows users to remotely control the mouse / keyboard / Windows Media Player on your computer from your smart phone/tablet device.

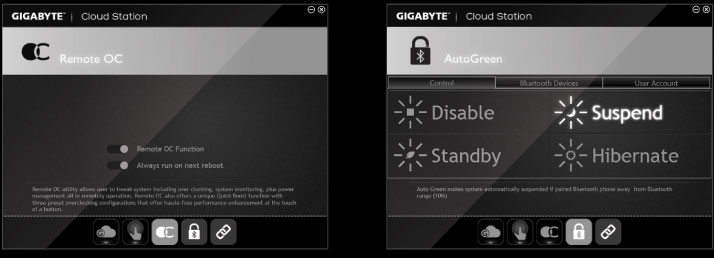

Remote OC
Remote OC allows users to remotely control their desktop PC with a powerful suite of software functions that Include overclocking and system tweaking, system monitoring plus the ability to also remotely power down/reset the PC when needed.

Auto Green
Auto Green is an easy-to-use tool that provides users with simple options to enable system power savings via a Bluetooth-enabled smart phone/tablet devices. When the device is out of the range of the computer's Bluetooth receiver, the system will enter the specified power saving mode.



* Features may vary by model.
