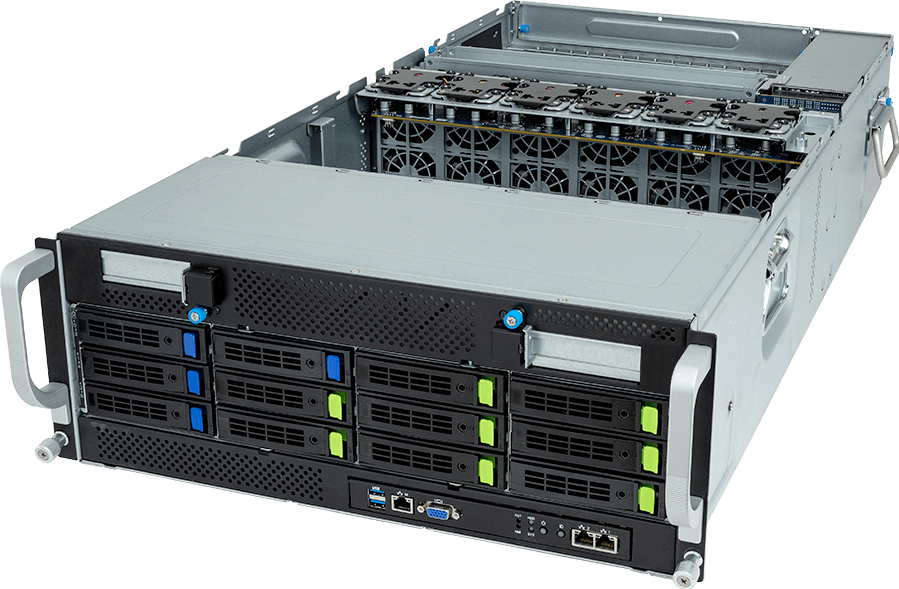

G493-SB0-AAP1

HPC/AI Server - 5th/4th Gen Intel^® Xeon^® Scalable - 4U DP 8 x PCIe Gen5 GPUs

# AI # AI Training # AI Inference # Visual Computing # HPC

NVIDIA-Certified Systems™ - OVX Servers
NVIDIA-Certified Systems™ - Data Center Servers
Supports up to 8 x Dual slot Gen5 GPUs
Dual 5th/4th Gen Intel^® Xeon^® Scalable Processors
Dual Intel^® Xeon^® CPU Max Series
8-Channel DDR5 RDIMM, 32 x DIMMs
Dual ROM Architecture
2 x 10Gb/s LAN ports via Intel^® X710-AT2
8 x 3.5"/2.5" Gen5 NVMe/SATA hot-swappable bays
4 x 3.5"/2.5" SATA hot-swappable bays
1 x M.2 slot with PCIe Gen3 x1 interface
8 x FHFL PCIe Gen5 x16 slots for GPUs
3+1 3000W 80 PLUS Titanium redundant power supplies

Get a Quote

comparare

Get a Quote

* Materialele oferite aici sunt doar pentru referinţă. GIGABYTE îşi rezervă dreptul de a modifica sau revizui continutul oricând fără notificare prealabilă.
* Perfomanţa prezentată este bazată pe valorile teoretice maxime ale interfeţei de la vendorii respectivi de Chipset-uri sau de la organizaţiile ce au definit specificaţiile interfeţei. Perfomanţele reale pot varia în funcţie de sistem.
* Toate mărcile inregistrate şi logo-urile sunt proprietatea deţinătorilor respectivi.
* Datorită arhitecturii standard PC, o anumită cantitate de memorie este rezervată pentru sistem şi de aceea mărimea actuală a memoriei este mai mică decât cea indicată.

SPECIFICATIONS

Dimensions (WxHxD, mm)

4U
448 x 176 x 880

Motherboard

MSB3-G40

CPU

5th Generation Intel^® Xeon^® Scalable Processors
4th Generation Intel^® Xeon^® Scalable Processors
Intel^® Xeon^® CPU Max Series
Dual processor, TDP up to 350W

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

2 x LGA 4677
Socket E

Chipset

Intel^® C741

Memory

32 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported

5th Gen Intel^® Xeon^®: Up to *5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel^® Xeon^®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel^® Xeon^® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

*5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.

LAN

Front side:
2 x 10Gb/s LAN ports (1 x Intel^® X710-AT2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video

Integrated in Aspeed^® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Storage

Front side:
8 x 3.5"/2.5" Gen5 NVMe/SATA hot-swappable bays
4 x 3.5"/2.5" SATA hot-swappable bays
- (4 x NVMe from CPU_0, 4 x NVMe from CPU_1)

SAS

N/A

RAID

Intel^® SATA RAID 0/1/10/5

Expansion Slots

4 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_0, for GPUs
4 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_1, for GPUs

- System is validated for population with a uniform GPU model.
- Support is not provided for mixed GPU populations.

1 x M.2 slot:
- M-key
- PCIe Gen3 x1, from PCH
- Supports 2280/22110 cards

Internal I/O

1 x TPM header
1 x VROC connector

Front I/O

2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED

Rear I/O

N/A

Backplane Board

Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s

TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

Power Supply

3+1 3000W 80 PLUS Titanium redundant power supplies

AC Input:
- 100-127V~/ 14.5A, 50/60Hz
- 200-220V~/ 16A, 50/60Hz
- 220-240V~/ 16A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 16A

DC Output:
- Max 1097.4W/ 100-127V~
+12.2V/ 87A
+12Vsb/ 3A
- Max 2598W/ 200-220V~
+12.2V/ 210A
+12Vsb/ 3A
- Max 3037.2W/ 220-240V~ or 240Vdc Input
+12.2V/ 246A
+12Vsb/ 3A

Note: The system power supply requires C19 power cord.

System Management

Aspeed^® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Please refer to OS compatibility table in support page

Additional certifications:
Windows Server 2022 (x64)

System Fans

12 x 60x60x38mm (23,000rpm)*

*Two fans share a single power connector.

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Weight

L6 Net Weight: 35.38 kg
L6 Gross Weight: 49.78 kg
Gross Weight: 85.6 kg

Packaging Dimensions

1200 x 800 x 444 mm w/ pallet

Packaging Content

1 x G493-SB0-AAP1
2 x CPU fansinks
8 x GPU power cables (12VHPWR, 150mm)
6 x Carriers
1 x L-shape Rail kit

Part Numbers

- Barebone package (5th/4th Gen): 6NG493SB0DR000ABP1*
- Barebone package (4th Gen): 6NG493SB0DR000AAP1*
- Motherboard: 9MSB3G40NR-000
- L-shape Rail kit: 25HB2-A96100-K0R
- CPU fansink: 25ST1-363204-C1R
- Backplane board - CBP20C7: 9CBP20C7NR-00
- Fan module: 25ST2-663823-F1R
- PCIe bridge board - CPBG084: 9CPBG084NR-00
- G-SCM board - CDCG120: 9CDCG120UR-00
- GPU power cable (12VHPWR, 150mm): 25CRI-150004-Y4R
- Power supply: 25EP0-23000C-D0S

Optional parts:

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NG493SB0SR-RMA-A100
