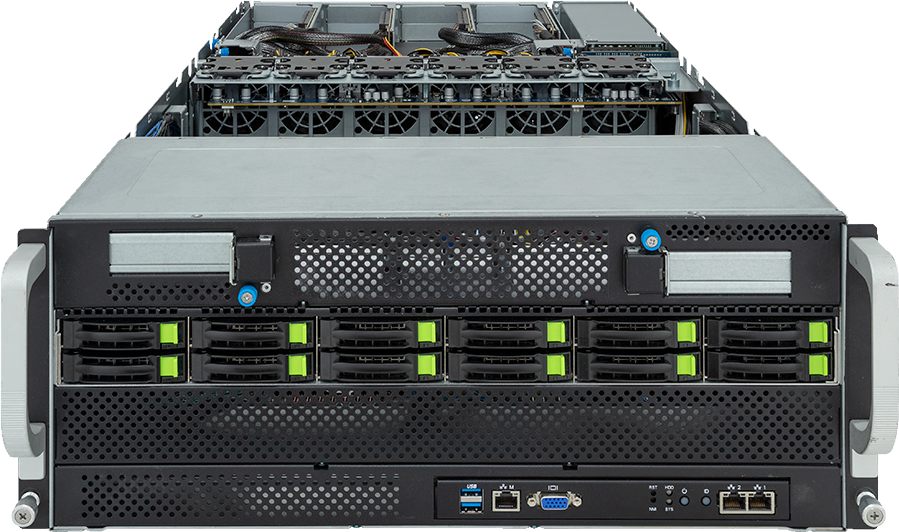

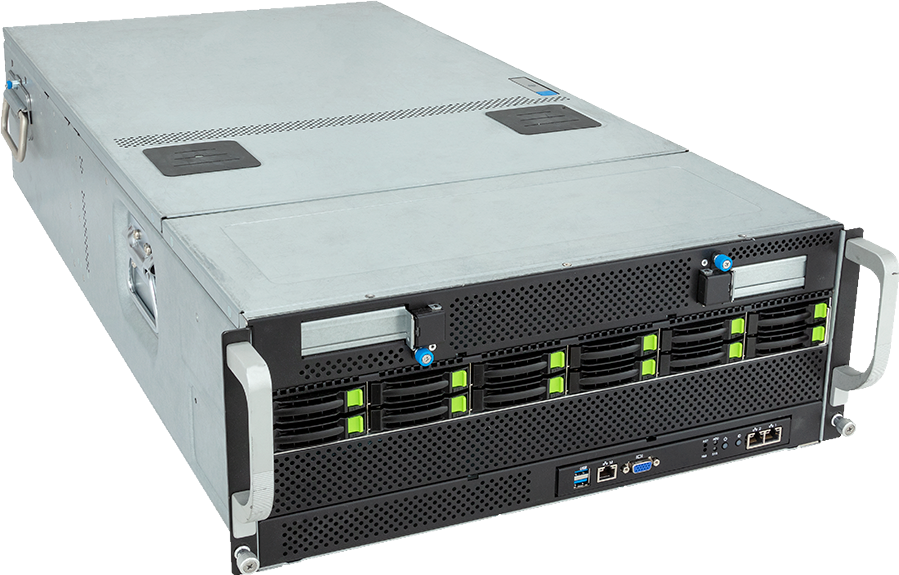

G493-ZB3-AAP1

Rev. 1.x Rev. 3.x

HPC/AI Server - AMD EPYC™ 9004 - 4U DP 8 x PCIe Gen5 GPUs (with PCIe switches)

# AI # AI Training # AI Inference # Visual Computing # HPC

NVIDIA-Certified Systems™ - Data Center Servers
Supports up to 8 x Dual slot Gen5 GPUs
Dual AMD EPYC™ 9004 Series Processors
12-Channel DDR5 RDIMM, 48 x DIMMs
Dual ROM Architecture
2 x 1Gb/s LAN ports via Intel^® I350-AM2
12 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
2 x M.2 slots with PCIe Gen3 x4 interface
8 x FHFL PCIe Gen5 x16 slots for GPUs
8 x LP PCIe Gen5 x16 slots
2 x LP PCIe Gen5 x16 slots on the front side
3+1 3000W 80 PLUS Titanium redundant power supplies

Get a Quote

Compare

Get a Quote

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)

4U
448 x 176 x 880

Motherboard

MZB3-G41

CPU

AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors

Dual processor, cTDP up to 400W^[1]

^[1]Please refer to the QVL on the support page or contact our sales representatives for verified CPU SKUs.

^[Note]If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

2 x LGA 6096
Socket SP5

Chipset

System on Chip

Memory

48 x DIMM slots
DDR5 memory supported
12-Channel memory architecture

AMD EPYC™ 9005:
RDIMM: Up to 4800 MT/s (1DPC)
RDIMM: Up to 4400 MT/s (1R 2DPC), 4000 MT/s (2R 2DPC)

AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)

LAN

Front (G-SCM board - CDCG110):
2 x 1Gb/s LAN (1 x Intel^® I350-AM2)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video

Integrated in Aspeed^® AST2600
- 1 x VGA port

Storage

Front hot-swap:
12 x 2.5" Gen5 NVMe/SATA/SAS-4^[1]
- (6 x NVMe from CPU_0, 6 x NVMe from CPU_1)
- (8 x SATA from CPU_0, 4 x SATA from CPU_1)

Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1

^[1]SAS card is required to support SAS drives.

SAS

Require SAS add-in cards

RAID

Require RAID add-in cards

PCIe Expansion Slots

Front:
1 x LP x16 (Gen5 x16), from CPU_0
1 x LP x16 (Gen5 x16), from CPU_1

Rear:
4 x FHFL x16 (Gen5 x16), from PEX89144_0, for GPUs
4 x FHFL x16 (Gen5 x16), from PEX89144_1, for GPUs
4 x LP x16 (Gen5 x16), from PEX89144_0
4 x LP x16 (Gen5 x16), from PEX89144_1

^[Note]The system is validated for use with a single GPU model.

Front I/O

G-SCM board - CDCG110:
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED

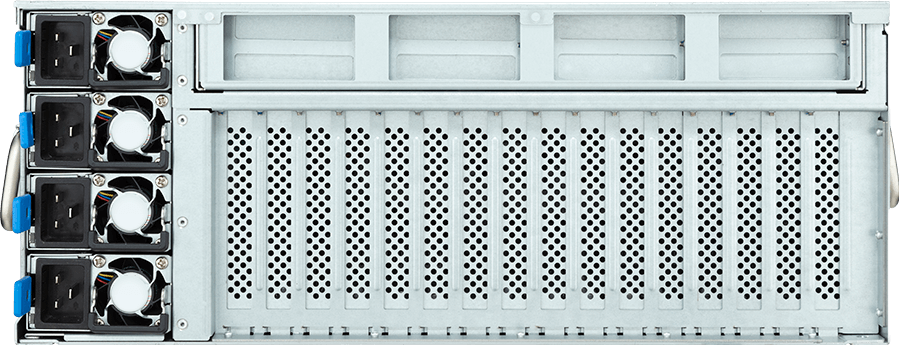

Rear I/O

N/A

Backplane Board

Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

Security Modules

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

Power Supply

3+1 3000W 80 PLUS Titanium redundant power supplies^[1]

AC Input:
- 100-127V~/ 14.5A, 50/60Hz
- 200-220V~/ 16A, 50/60Hz
- 220-240V~/ 16A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 16A

DC Output:
- Max 1097.4W/ 100-127V~
+12.2V/ 87A
+12Vsb/ 3A
- Max 2598W/ 200-220V~
+12.2V/ 210A
+12Vsb/ 3A
- Max 3037.2W/ 220-240V~ or 240Vdc Input
+12.2V/ 246A
+12Vsb/ 3A

^[1]The system power supply requires C19 power cord.

System Management

Aspeed^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Please refer to OS compatibility table in support page

Additional certifications:
Red Hat Enterprise Linux 9.0 or later
VMware ESXi 8.0

System Fans

12 x 60x60x38mm (23,000rpm)^[1]

^[1]Two fans share a single power connector.

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

1200 x 800 x 444 mm w/ pallet

Packaging Content

1 x G493-ZB3-AAP1
2 x CPU fansinks
8 x GPU power cables (12VHPWR, 150mm)
1 x L-shape Rail kit

Part Numbers

- Barebone package (EPYC 9005/9004): 6NG493ZB3DR000ABP1*
- Barebone package (EPYC 9004): 6NG493ZB3DR000AAP1*
- Motherboard: 9MZB3G41UR-000*
- L-shape Rail kit: 25HB2-A96100-K0R
- CPU fansink: 25ST0-0Z6023-C1R/25ST0-0Z6024-C1R
- Backplane board - CBP10C2: 9CBP10C2NR-00*
- Fan module: 25ST2-663823-F1R
- PCIe bridge board - CPBG000: 9CPBG000NR-00*
- PCIe switch board - CPB4AG0: 9CPB4AG0NR-00*
- G-SCM board - CDCG110: 9CDCG110UR-00*
- GPU power cable (12VHPWR, 150mm): 25CRI-1500B3-Y4R
- Power supply: 25EP0-203K02-D0S

Optional parts:

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NG493ZB3SR-RMA-A100
