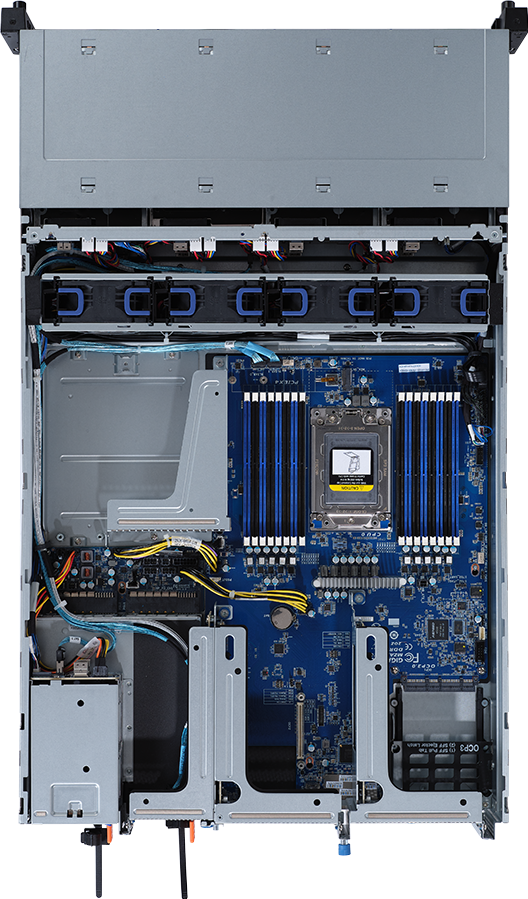

R262-ZA1

Discontinued

Rack Server - AMD EPYC™ 7002 - 2U UP 14-Bay SATA/SAS
  • Hardware-level root of trust support
  • AMD EPYC™ 7002 Series processors
  • Single processor, 7nm technology
  • 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
  • 2 x 1Gb/s LAN ports (Intel® I350-AM2)
  • 1 x Dedicated management port
  • 12 x 3.5" SATA/SAS hot-swappable bays
  • 2 x 2.5" SATA/SAS hot-swappable bays on rear side
  • 1 x M.2 slot with PCIe Gen4 x4 interface
  • 6 x FHHL PCIe Gen4 x16 and x8 slots
  • 1 x FHHL PCIe Gen3 x16 or x8 slot
  • 2 x LP PCIe Gen4 x8 slots
  • 1 x OCP 3.0 Gen4 x16 slot
  • 1 x OCP 2.0 Gen3 x8 mezzanine slot
  • 1+1 1200W 80 PLUS Platinum redundant power supplies
* 사이트에서 제공되는 모든 자료는 참조용일 뿐입니다. 기가바이트는 사이트의 자료를 사전 통지없이 언제든지 수정할 권리를 지닙니다.
* 모든 상표와 로고는 해당 소유자의 자산입니다.
* PC의 표준 아키텍쳐에 의해, 메모리의 특정 부분이 시스템에 사용되어 실제 메모리 크기는 표준보다 적게 표시될 수 있습니다.

SPECIFICATIONS

Dimensions (WxHxD, mm)
2U
438 x 87.5 x 730
Motherboard
MZA2-CE0
CPU
AMD EPYC™ 7002 Series processors
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
cTDP up to 240W
Socket
1 x LGA 4094
Socket SP3
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/2933 MHz

*Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
LAN
Rear side:
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Front side:
12 x 3.5" SATA/SAS hot-swappable bays*

Rear side:
2 x 2.5" SATA/SAS hot-swappable bays

SAS card is required to enable the drive bays

Default configuration supports:
4 x 3.5" SATA/SAS drives on front side
2 x 2.5" SATA/SAS drives on rear side

Recommended 12Gb/s SAS cards:
CRA4448
CRA3338

* NOTE: 8 x trays are enabled by optional SAS Card
SAS
Supported
RAID
Depends on SAS add-on card
Expansion Slots
Riser Card CRS2027:
- 2 x PCIe x8 (Gen4 x8) low-profile slots

Riser Card CRS2225 x 2:
- 2 x PCIe x16 (Gen4 x16 or x8) FHHL slots
- 2 x PCIe x8 (Gen4 x0 or x8) FHHL slots
- 1 x PCIe x16 (Gen4 x16) FHHL slot
- 1 x PCIe x16 (Gen3 x16 or x8) FHHL slot, shared with OCP2.0 mezzanine slot

Internal Riser Card CRS101H:
- 1 x PCIe x16 (Gen4 x16) FHHL slot

1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x0 or x8 bandwidth, shared with CRS2225

1 x M.2 slot:
- M-key
- PCIe Gen4 x4
- Supports 2280/22110 cards
Internal I/O
1 x M.2 slot
1 x USB 3.0 header
1 x COM header
1 x TPM header
1 x OCP 3.0 slot
1 x OCP 2.0 mezzanine slot
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED

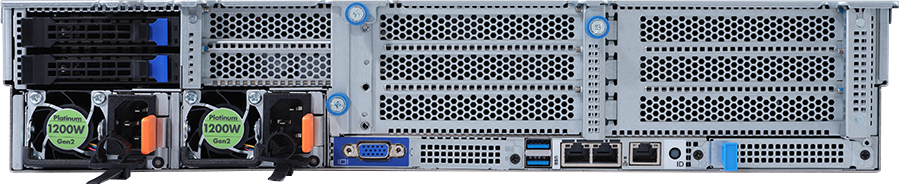

Rear I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
Front side - CBP20C5: SATA 6Gb/s or SAS 12Gb/s
Rear side - CBP2022: SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply
1+1 1200W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-127V~/ 12.47A, 47-63Hz
- 200-240V~/ 7.08a, 47-63Hz

DC Output:
- Max 1000W/ 100-127V~
+ 12V/ 82A
+ 12Vsb/ 2A
- Max 1200W/ 200-240V~
+ 12V/ 98A
+ 12Vsb/ 2A
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • JAVA Based Serial Over LAN
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019

Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP4 (x64) or later
SUSE Linux Enterprise Server 15 SP1 (x64) or later

Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.1.0 or later
System Fans
4 x 80x80x38mm (16,300rpm), 2-ball
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
982 x 588 x 268 mm
Packaging Content
1 x R262-ZA1
1 x CPU heatsink
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR262ZA1MR-00-1*
- Motherboard: 9MZA2CE0NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board (Front) - CBP20C5: 9CBP20C5NR-00
- Backplane board (Rear) - CBP2022: 9CBP2022NR-00
- Fan module: 25ST2-883829-D0R
- Riser card - CRS2027: 9CRS2027NR-00
- Riser card - CRS2225: 9CRS2225NR-00
- Riser card - CRS101H: 9CRS101HNR-00
- Power supply: 25EP0-212008-D0S

Optional parts:

- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR262ZA1SR-RMA-A100
