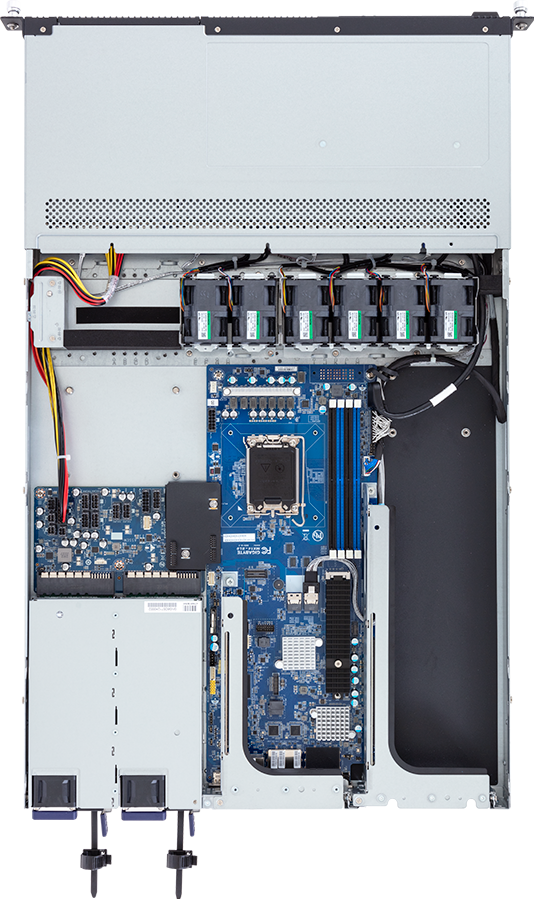

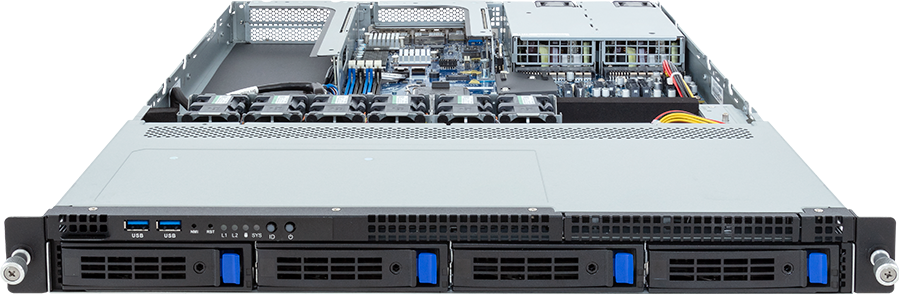

R133-X13-AAB1

Rack Server - Intel^® Xeon^® E-2400 - 1U UP 1 x PCIe Gen5 GPU

# AI Inference # Edge # Hybrid/Private Cloud Server

Supports 1 x Dual slot Gen5 GPU
Single Intel^® Xeon^® E-2400 Processors
Single Intel^® Pentium^® Gold G7400 / G7400T Processor
Dual Channel DDR5 ECC UDIMM, 4 x DIMMs
2 x 1Gb/s LAN ports via Intel^® I210-AT
4 x 3.5"/2.5" SATA hot-swappable bays
1 x M.2 slot with PCIe Gen4 x4 interface
1 x FHFL PCIe Gen5 x16 or 2 x FHFL PCIe Gen5 x8 slots for GPUs
1 x FHHL PCIe Gen4 x4 slot
1+1 800W 80 PLUS Platinum redundant power supplies

Get a Quote

비교

Get a Quote

* 사이트에서 제공되는 모든 자료는 참조용일 뿐입니다. 기가바이트는 사이트의 자료를 사전 통지없이 언제든지 수정할 권리를 지닙니다.
* 모든 상표와 로고는 해당 소유자의 자산입니다.
* PC의 표준 아키텍쳐에 의해, 메모리의 특정 부분이 시스템에 사용되어 실제 메모리 크기는 표준보다 적게 표시될 수 있습니다.

SPECIFICATIONS

Dimensions (WxHxD, mm)

1U
438 x 43.5 x 710

Motherboard

MX14-BL1

CPU

Intel^® Xeon^® E-2400 Processors
Intel^® Pentium^® Gold G7400 / G7400T Processor
Single processor, TDP up to 95W

Socket

1 x LGA 1700

Chipset

Intel^® C262

Memory

4 x DIMM slots
DDR5 memory supported only
Dual Channel memory architecture
DIMM up to 32GB supported
ECC UDIMM supported only
Memory speed: Up to 4400 MT/s (1DPC), 4000 MT/s (2DPC/1R), 3600 MT/s (2DPC/2R)

LAN

Rear side:
2 x 1Gb/s LAN ports (2 x Intel^® I210-AT)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video

Integrated in Aspeed^® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Storage

Front side:
4 x 3.5"/2.5" SATA hot-swappable bays

SATA supported only

SAS

N/A

RAID

Intel^® SATA RAID 0/1/10/5

Expansion Slots

Riser Card CRCE021:
- 1 x PCIe x16 (Gen5 x16) FHFL slot or 2 x PCIe x16 (Gen5 x8) FHFL slots, from CPU, for GPUs*

Riser Card CRSE016:
- 1 x PCIe x4 (Gen4 x4) FHHL slot, from PCH

1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU
- Supports 2280/22110 cards

*Only supports GPUs up to 300W.

Internal I/O

1 x TPM header

Front I/O

2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

Rear I/O

2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID button with LED

Backplane Board

Speed and bandwidth:
SATA 6Gb/s

TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

Power Supply

1+1 800W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-240V~/ 10-5A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 4A

DC Output:
- Max 800W
+12V/ 65A
+12Vsb/ 2.1A

System Management

Aspeed^® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced Power Capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Please refer to OS compatibility table in support page

System Fans

4 x 40x40x56mm (29,700rpm)
2 x 40x40x56mm (32,000rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

977 x 588 x 236 mm

Packaging Content

1 x R133-X13-AAB1
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
1 x GPU power cable (2x PCIe 8pin, 700mm)
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR133X13MR000AAB1*
- Motherboard: 9MX14BL1NR-000
- 2-Section Rail kit (CMA not supported): 25HB2-3A0203-K0R
- CPU heatsink: 25ST1-12311H-A7R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP1010: 9CFP1010NR-00
- Backplane board - CBP1047: 9CBP1047NR-00
- Fan module: 25ST2-405622-A0R
- Fan module: 25ST2-40562H-A0R
- Riser card - CRCE021: 9CRCE021NR-00
- Riser card - CRSE016: 9CRSE016NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (2x PCIe 8pin, 700mm): 25CRI-700004-G5R
- Power supply: 25EP0-208009-F3S

Optional parts:

- 3-Section Rail kit (Supports CMA): 25HB2-A56120-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
