- H262-Z61

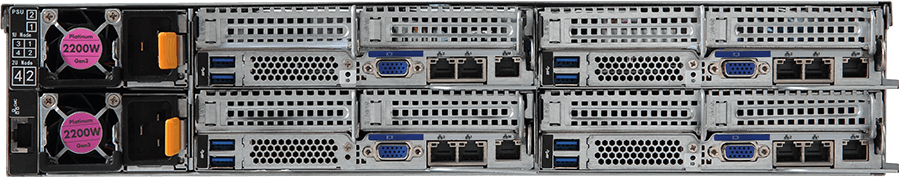

- 2U 4-node rear access server system
- Dual AMD EPYC™ 7003/7002 Series Processors per node
- 8-Channel DDR4 RDIMM/LRDIMM, 64 x DIMMs
- 8 x 1Gb/s LAN ports via Intel® I350-AM2
- 1 x CMC port
- 24 x 2.5" SATA/SAS hot-swappable bays
- 8 x M.2 slots with PCIe Gen3 x4 interface
- 8 x LP PCIe Gen4 x16 slots
- 4 x OCP 2.0 Gen3 x16 mezzanine slots
- Dual 2200W 80 PLUS Platinum redundant power supply
* 사이트에서 제공되는 모든 자료는 참조용일 뿐입니다. 기가바이트는 사이트의 자료를 사전 통지없이 언제든지 수정할 권리를 지닙니다.
* 모든 상표와 로고는 해당 소유자의 자산입니다.
* PC의 표준 아키텍쳐에 의해, 메모리의 특정 부분이 시스템에 사용되어 실제 메모리 크기는 표준보다 적게 표시될 수 있습니다.
* 모든 상표와 로고는 해당 소유자의 자산입니다.
* PC의 표준 아키텍쳐에 의해, 메모리의 특정 부분이 시스템에 사용되어 실제 메모리 크기는 표준보다 적게 표시될 수 있습니다.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U 4-Node - Rear access
440 x 87.5 x 840
440 x 87.5 x 840
Motherboard
MZ62-HD0 Rev. 3.0
CPU
AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Dual processor per node, 7nm technology
Up to 64 cores, 128 threads per processor
TDP up to 200W
Note:
1) If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
2) Contact GIGABYTE sales rep or technical support for more details about supporting cTDP 240W CPU.
AMD EPYC™ 7002 Series Processors
Dual processor per node, 7nm technology
Up to 64 cores, 128 threads per processor
TDP up to 200W
Note:
1) If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
2) Contact GIGABYTE sales rep or technical support for more details about supporting cTDP 240W CPU.
Socket
Per Node:
2 x LGA 4094
Total:
8 x LGA 4094
Socket SP3
2 x LGA 4094
Total:
8 x LGA 4094
Socket SP3
Chipset
System on Chip
Memory
Per node:
16 x DIMM slots
Total:
64 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200 MT/s
16 x DIMM slots
Total:
64 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200 MT/s
LAN
Per node:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management port
Total:
8 x 1Gb/s LAN ports (4 x Intel® I350-AM2)
Support NCSI function
4 x 10/100/1000 Mbps Management ports
1 x CMC port
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management port
Total:
8 x 1Gb/s LAN ports (4 x Intel® I350-AM2)
Support NCSI function
4 x 10/100/1000 Mbps Management ports
1 x CMC port
Video
Integrated in Aspeed® AST2500 x 4
- 4 x VGA ports
- 4 x VGA ports
Storage
Per node:
6 x 2.5" SATA/SAS hot-swappable bays, from CPU_0
Total:
24 x 2.5" SATA/SAS hot-swappable bays, from CPU_0
SAS card is required for SAS devices support
6 x 2.5" SATA/SAS hot-swappable bays, from CPU_0
Total:
24 x 2.5" SATA/SAS hot-swappable bays, from CPU_0
SAS card is required for SAS devices support
SAS
Depends on SAS add-in cards
RAID
N/A
Expansion Slots
Per node:
2 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth, from CPU_0 (Type1, P1, P2, P3, P4 with NCSI supported)
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 155W if using M.2 device
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 155W if using M.2 device
Total:
8 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0
4 x OCP 2.0 mezzanine slots with PCIe Gen3 x16 bandwidth, from CPU_0 (Type1, P1, P2, P3, P4 with NCSI supported)
4 x M.2 slots:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 155W if using M.2 device
4 x M.2 slots:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 155W if using M.2 device
2 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth, from CPU_0 (Type1, P1, P2, P3, P4 with NCSI supported)
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 155W if using M.2 device
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 155W if using M.2 device
Total:
8 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0
4 x OCP 2.0 mezzanine slots with PCIe Gen3 x16 bandwidth, from CPU_0 (Type1, P1, P2, P3, P4 with NCSI supported)
4 x M.2 slots:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 155W if using M.2 device
4 x M.2 slots:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 155W if using M.2 device
Internal I/O
Per node:
1 x TPM header
1 x TPM header
Front I/O
Per node:
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
Total:
4 x Power buttons with LED
4 x ID buttons with LED
4 x Reset buttons
4 x System status LEDs
*1 x CMC status LED
*Only one CMC status LED per system.
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
Total:
4 x Power buttons with LED
4 x ID buttons with LED
4 x Reset buttons
4 x System status LEDs
*1 x CMC status LED
*Only one CMC status LED per system.
Rear I/O
Per node:
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
Total:
8 x USB 3.0
4 x VGA
8 x RJ45
4 x MLAN
*1 x CMC port
*Only one CMC port per system.
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
Total:
8 x USB 3.0
4 x VGA
8 x RJ45
4 x MLAN
*1 x CMC port
*Only one CMC port per system.
Backplane Board
Speed and bandwidth:
SATA 6Gb/s or SAS 12Gb/s
SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
Dual 2200W 80 PLUS Platinum redundant power supply
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 12.6A
DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V~ or 240Vdc Input
+12.12V/ 178.1A
+12Vsb/ 3.5A
Note: System power supply requires C19 power cord.
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 12.6A
DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V~ or 240Vdc Input
+12.12V/ 178.1A
+12Vsb/ 3.5A
Note: System power supply requires C19 power cord.
System Management
Aspeed® AST2500 Baseboard Management Controller
Aspeed® AST2520 Chassis Management Controller
GIGABYTE Management Console web interface
Aspeed® AST2520 Chassis Management Controller
GIGABYTE Management Console web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04 LTS
Ubuntu 20.04 LTS
Ubuntu 22.04 LTS
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04 LTS
Ubuntu 20.04 LTS
Ubuntu 22.04 LTS
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
System Fans
8 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 47.63 kg
Gross Weight: 49.63 kg
Gross Weight: 49.63 kg
Packaging Dimensions
1180 x 779 x 300 mm
Packaging Content
1 x H262-Z61
8 x CPU heatsinks
1 x 3-Section Rail kit
8 x CPU heatsinks
1 x 3-Section Rail kit
Part Numbers
- Barebone package: 6NH262Z61MR-00-A*
- Motherboard: 9MZ62HD0NR-00
- 3-Section Rail kit: 25HB2-AN6103-K0R
- CPU heatsink: 25ST1-44320H-A0R/25ST1-44320I-A0R
- Backplane board - CBPH0O4: 9CBPH0O4NR-00
- Fan module: 25ST2-883828-D0R/25ST2-88382A-D0R
- Power supply: 25EP0-222003-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 250V/15A (US): 25CP1-018300-Q0R
- M.2 expansion card - CMTP04R: 9CMTP04RNR-00
- Ring topology kit: 6NH262Z65SR-00-100
- RMA packaging: 6NH262Z61SR-RMA-A100
- Motherboard: 9MZ62HD0NR-00
- 3-Section Rail kit: 25HB2-AN6103-K0R
- CPU heatsink: 25ST1-44320H-A0R/25ST1-44320I-A0R
- Backplane board - CBPH0O4: 9CBPH0O4NR-00
- Fan module: 25ST2-883828-D0R/25ST2-88382A-D0R
- Power supply: 25EP0-222003-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 250V/15A (US): 25CP1-018300-Q0R
- M.2 expansion card - CMTP04R: 9CMTP04RNR-00
- Ring topology kit: 6NH262Z65SR-00-100
- RMA packaging: 6NH262Z61SR-RMA-A100
* 사이트에서 제공되는 모든 자료는 참조용일 뿐입니다. 기가바이트는 사이트의 자료를 사전 통지없이 언제든지 수정할 권리를 지닙니다.
* 모든 상표와 로고는 해당 소유자의 자산입니다.
* PC의 표준 아키텍쳐에 의해, 메모리의 특정 부분이 시스템에 사용되어 실제 메모리 크기는 표준보다 적게 표시될 수 있습니다.
* 모든 상표와 로고는 해당 소유자의 자산입니다.
* PC의 표준 아키텍쳐에 의해, 메모리의 특정 부분이 시스템에 사용되어 실제 메모리 크기는 표준보다 적게 표시될 수 있습니다.
SUPPORT
드라이버
BIOS
유틸리티
Firmware
QVL
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 64bit
Chipset
LAN
BIOS
설명
버전
사이즈
날짜
1) Updated to AGESA RomePI 1.0.0.J.
2) Updated to AGESA MilanPI 1.0.0.D.
3) Included multiple security updates.
2) Updated to AGESA MilanPI 1.0.0.D.
3) Included multiple security updates.
Version : M20_R34
35.35 MB
Nov 04, 2024
1) Fixed PKfail Vulnerability.
2) Optimized BcpPro tool compatibility.
2) Optimized BcpPro tool compatibility.
Version : M17_R31
35.29 MB
Aug 26, 2024
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
경고:
BIOS 플래시는 잠재적인 위험요소가 있기 때문에 현재 버전의 BIOS를 사용하는 동안 문제가 발생하지 않았다면 BIOS를 플래시하지 않는 것을 권장합니다. BIOS를 플래시하려면 조심해야 하며 부적절한 BIOS 플래시는 시스템에 고장을 일으킬 수 있습니다.
What is a BETA?
BETA는 최종 제품의 기능 중 일부는 포함되지 않을 수도 있습니다. BETA 서비스 동안에 제품의 새로운 특징을 미리 살펴볼 수 있으며 기가바이트의 제품을 최대한 경험할 수 있습니다.
BIOS 플래시는 잠재적인 위험요소가 있기 때문에 현재 버전의 BIOS를 사용하는 동안 문제가 발생하지 않았다면 BIOS를 플래시하지 않는 것을 권장합니다. BIOS를 플래시하려면 조심해야 하며 부적절한 BIOS 플래시는 시스템에 고장을 일으킬 수 있습니다.
What is a BETA?
BETA는 최종 제품의 기능 중 일부는 포함되지 않을 수도 있습니다. BETA 서비스 동안에 제품의 새로운 특징을 미리 살펴볼 수 있으며 기가바이트의 제품을 최대한 경험할 수 있습니다.
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
유틸리티
설명
버전
사이즈
날짜
GSM CLI
Version : 2.1.77
147.89 MB
Sep 27, 2024
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
Firmware
설명
버전
사이즈
날짜
BMC Firmware with embedded GIGABYTE Management Console
(AST2500 AMI)
(AST2500 AMI)
Version : 12.61.21
105.38 MB
Apr 11, 2024
English
CMC Firmware (AST2520)
Note: Please make sure the system CMC firmware version is 12.40.19 or later before updating BMC firmware
Note: Please make sure the system CMC firmware version is 12.40.19 or later before updating BMC firmware
Version : 12.41.36
83.16 MB
Nov 02, 2023
English
매뉴얼
설명
버전
사이즈
날짜
설명
버전
사이즈
날짜
RESOURCES
Success Case
Articles
Solutions
Video
News
Others
Back to H262-Z61
