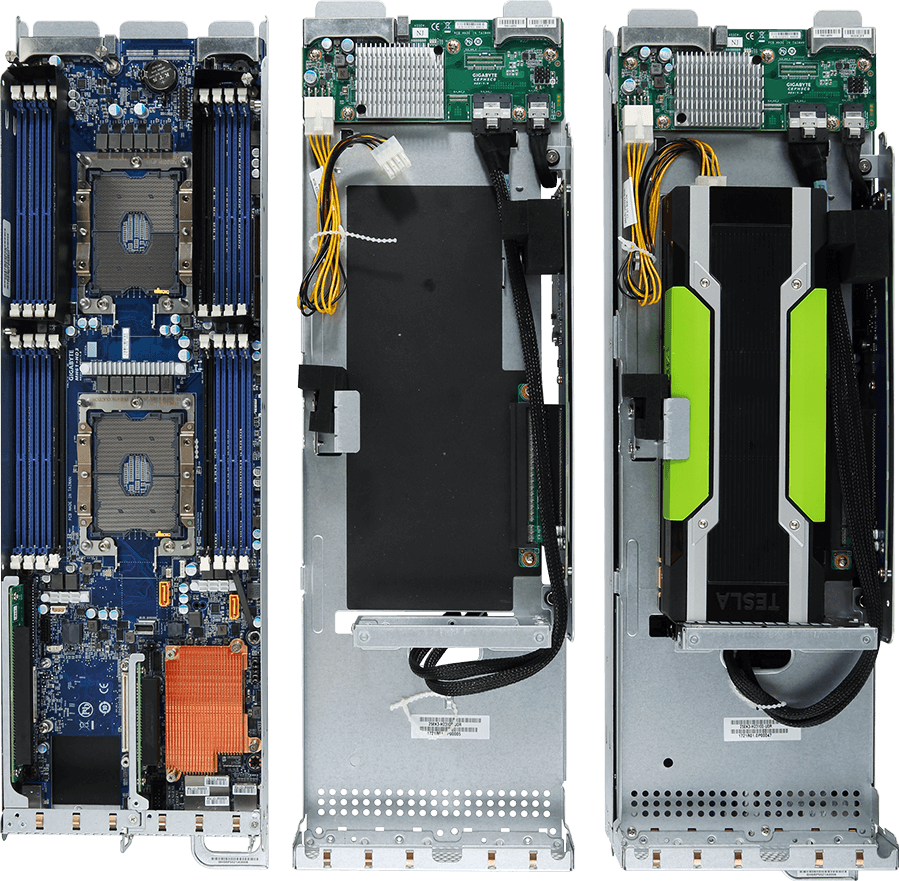

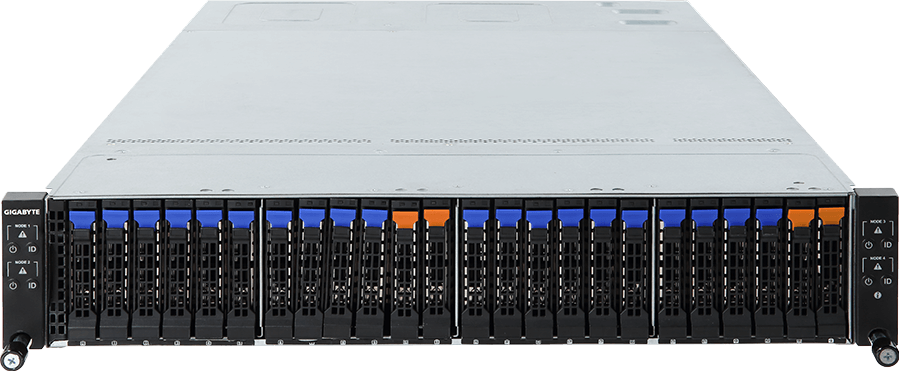

H231-H60
HPC/AI Server - 2nd/1st Intel® Xeon® Scalable - 2U 2-Node DP 2 x PCIe Gen3 GPUs
- Supports up to 2 x Dual slot Gen3 GPUs
- NVIDIA® validated GPU platform; Supports for NVIDIA® Tesla® GPUs
- 2U 2-node rear access server system
- Dual 2nd/1st Gen Intel® Xeon® Scalable Processors per node
- 6-Channel DDR4 RDIMM/LRDIMM, 32 x DIMMs
- Supports Intel® Optane™ DC Persistent Memory
- 1 x CMC port
- 4 x 2.5" Gen3 NVMe/SATA/SAS hot-swappable bays
- 20 x 2.5" SATA/SAS hot-swappable bays
- 2 x LP PCIe Gen3 x16 slots
- 2 x LP PCIe Gen3 x8 slots
- 2 x OCP Gen3 x16 mezzanine slots
- Dual 2200W 80 PLUS Platinum redundant power supply
- Optimized performance with Mellanox Infiniband EDR 100G or Ethernet 100G products
* 사이트에서 제공되는 모든 자료는 참조용일 뿐입니다. 기가바이트는 사이트의 자료를 사전 통지없이 언제든지 수정할 권리를 지닙니다.
* 모든 상표와 로고는 해당 소유자의 자산입니다.
* PC의 표준 아키텍쳐에 의해, 메모리의 특정 부분이 시스템에 사용되어 실제 메모리 크기는 표준보다 적게 표시될 수 있습니다.
* 모든 상표와 로고는 해당 소유자의 자산입니다.
* PC의 표준 아키텍쳐에 의해, 메모리의 특정 부분이 시스템에 사용되어 실제 메모리 크기는 표준보다 적게 표시될 수 있습니다.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U 2-Node - Rear access
440 x 87 x 820
440 x 87 x 820
Motherboard
MH61-HD5
CPU
2nd Generation Intel® Xeon® Scalable Processors
Intel® Xeon® Scalable Processors
Dual processor per node, TDP up to 165W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Note: This device does not support Intel Omni-Path function.
Intel® Xeon® Scalable Processors
Dual processor per node, TDP up to 165W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Note: This device does not support Intel Omni-Path function.
Socket
Per Node:
2 x LGA 3647
Total:
4 x LGA 3647
Socket P
2 x LGA 3647
Total:
4 x LGA 3647
Socket P
Chipset
Intel® C621
Memory
Per node:
16 x DIMM slots
Total:
32 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM up to 64GB supported
LRDIMM up to 128GB supported
Supports Intel® Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 2933/2666/2400/2133 MT/s
Maximum verified DCPMM configuration:
*Ambient temperature 35°C
*2nd Generation Intel® Xeon® Scalable processor 165W (Max.)
*DCPMM 256GB x2 pcs (Per Node)
DCPMM installation locations:
DIMM_P1_(G1, J1)
Note:
1. 2933MT/s memory is supported only with 2nd Generation Intel® Xeon® Scalable Processors.
2. Intel® Optane™ DC Persistent Memory for 2nd Generation Intel® Xeon® Scalable Processors only.
3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 35°C.
4. To enquire about installing a greater number of DCPMM, please consult with your GIGABYTE technical or sales representative.
16 x DIMM slots
Total:
32 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM up to 64GB supported
LRDIMM up to 128GB supported
Supports Intel® Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 2933/2666/2400/2133 MT/s
Maximum verified DCPMM configuration:
*Ambient temperature 35°C
*2nd Generation Intel® Xeon® Scalable processor 165W (Max.)
*DCPMM 256GB x2 pcs (Per Node)
DCPMM installation locations:
DIMM_P1_(G1, J1)
Note:
1. 2933MT/s memory is supported only with 2nd Generation Intel® Xeon® Scalable Processors.
2. Intel® Optane™ DC Persistent Memory for 2nd Generation Intel® Xeon® Scalable Processors only.
3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 35°C.
4. To enquire about installing a greater number of DCPMM, please consult with your GIGABYTE technical or sales representative.
LAN
Per node:
1 x 10/100/1000 Mbps Management port
Total:
2 x 10/100/1000 Mbps Management ports
1 x 10/100/1000 Mbps CMC port
Note: Please contact FAE if NCSI function of OCP mezzanine card is needed.
1 x 10/100/1000 Mbps Management port
Total:
2 x 10/100/1000 Mbps Management ports
1 x 10/100/1000 Mbps CMC port
Note: Please contact FAE if NCSI function of OCP mezzanine card is needed.
Video
Integrated in Aspeed® AST2500 x 2
- 2 x VGA ports
- 2 x VGA ports
Storage
Per node:
2 x 2.5" Gen3 NVMe/SATA/SAS hot-swappable bays
10 x 2.5" SATA/SAS hot-swappable bays
1 x Broadcom SAS35x24R expander
Default configuration supports:
2 x U.2 and 0 x SAS/SATA drives
Onboard SATA DOM support (PIN_7, PIN_8 or external cable)
Total:
4 x 2.5" Gen3 NVMe/SATA/SAS hot-swappable bays
20 x 2.5" SATA/SAS hot-swappable bays
2 x Broadcom SAS35x24R expander
Default configuration supports:
4 x U.2 and 0 x SAS/SATA drives
SAS card is required to enable the drive bays
2 x 2.5" Gen3 NVMe/SATA/SAS hot-swappable bays
10 x 2.5" SATA/SAS hot-swappable bays
1 x Broadcom SAS35x24R expander
Default configuration supports:
2 x U.2 and 0 x SAS/SATA drives
Onboard SATA DOM support (PIN_7, PIN_8 or external cable)
Total:
4 x 2.5" Gen3 NVMe/SATA/SAS hot-swappable bays
20 x 2.5" SATA/SAS hot-swappable bays
2 x Broadcom SAS35x24R expander
Default configuration supports:
4 x U.2 and 0 x SAS/SATA drives
SAS card is required to enable the drive bays
RAID
For SATA drives:
Intel® SATA RAID 0/1/5/10
For U.2 drives:
Intel® Virtual RAID On CPU (VROC) RAID 0/1
Note: VROC module is for Intel® SSD only.
Intel® SATA RAID 0/1/5/10
For U.2 drives:
Intel® Virtual RAID On CPU (VROC) RAID 0/1
Note: VROC module is for Intel® SSD only.
Expansion Slots
Per node:
1 x PCIe x16 (Gen3 x16) FHFL slot, for GPUs
1 x PCIe x16 (Gen3 x16) low-profile slot
1 x PCIe x8 (Gen3 x8) low-profile slot
1 x OCP mezzanine slot with PCIe Gen3 x16 bandwidth
Total:
2 x PCIe x16 (Gen3 x16) FHFL slots, for GPUs
2 x PCIe x16 (Gen3 x16) low-profile slots
2 x PCIe x8 (Gen3 x8) low-profile slots
2 x OCP mezzanine slots with PCIe Gen3 x16 bandwidth
Note: For the latest GPU QVL, please contact your GIGABYTE representative.
1 x PCIe x16 (Gen3 x16) FHFL slot, for GPUs
1 x PCIe x16 (Gen3 x16) low-profile slot
1 x PCIe x8 (Gen3 x8) low-profile slot
1 x OCP mezzanine slot with PCIe Gen3 x16 bandwidth
Total:
2 x PCIe x16 (Gen3 x16) FHFL slots, for GPUs
2 x PCIe x16 (Gen3 x16) low-profile slots
2 x PCIe x8 (Gen3 x8) low-profile slots
2 x OCP mezzanine slots with PCIe Gen3 x16 bandwidth
Note: For the latest GPU QVL, please contact your GIGABYTE representative.
Internal I/O
Per node:
1 x TPM header
1 x TPM header
Front I/O
Per node:
1 x Power button with LED
1 x ID button with LED
1 x Status LED
Total:
2 x Power buttons with LED
2 x ID buttons with LED
2 x Status LEDs
*1 x CMC status LED
*Only one CMC status LED per system.
1 x Power button with LED
1 x ID button with LED
1 x Status LED
Total:
2 x Power buttons with LED
2 x ID buttons with LED
2 x Status LEDs
*1 x CMC status LED
*Only one CMC status LED per system.

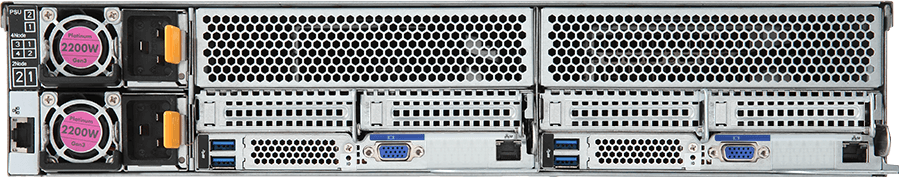

Rear I/O
Per node:
2 x USB 3.0
1 x VGA
1 x MLAN
1 x ID LED
Total:
4 x USB 3.0
2 x VGA
2 x MLAN
2 x ID LEDs
*1 x CMC port
*Only one CMC port per system.
2 x USB 3.0
1 x VGA
1 x MLAN
1 x ID LED
Total:
4 x USB 3.0
2 x VGA
2 x MLAN
2 x ID LEDs
*1 x CMC port
*Only one CMC port per system.
Backplane Board
Speed and bandwidth:
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with LPC interface
- Optional TPM2.0 kit: CTM000
- Optional TPM2.0 kit: CTM000
Power Supply
Dual 2200W 80 PLUS Platinum redundant power supply
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 12.6A
DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V~ or 240Vdc Input
+12.12V/ 178.1A
+12Vsb/ 3.5A
Note:
1) The system power supply requires C19 power cord.
2) 2000W 80 PLUS Titanium power supply as an option.
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 12.6A
DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V~ or 240Vdc Input
+12.12V/ 178.1A
+12Vsb/ 3.5A
Note:
1) The system power supply requires C19 power cord.
2) 2000W 80 PLUS Titanium power supply as an option.
System Management
Aspeed® AST2500 Baseboard Management Controller
Aspeed® AST1250 Chassis Management Controller (-100/A00)
Aspeed® AST2520 Chassis Management Controller (-B00)
Avocent® MergePoint IPMI 2.0 web interface:
Aspeed® AST1250 Chassis Management Controller (-100/A00)
Aspeed® AST2520 Chassis Management Controller (-B00)
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Hardware information
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Fan profiles
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (HTML5)
OS Compatibility
For Skylake processors:
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later
Red Hat Enterprise Linux 6.9 or later
Red Hat Enterprise Linux 7.3 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 11 SP4 or later
SUSE Linux Enterprise Server 12 SP2 or later
SUSE Linux Enterprise Server 15 or later
Ubuntu 16.04.1 LTS or later
Ubuntu 18.04 LTS or later
Ubuntu 20.04 LTS or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
For Cascade Lake processors:
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.5.0 or later
Citrix Hypervisor 8.0.0 or later
Red Hat Enterprise Linux 7.6 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP3 or later
SUSE Linux Enterprise Server 15 or later
Ubuntu 18.04 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 Update2 or later
VMware ESXi 6.7 Update1 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later
Red Hat Enterprise Linux 6.9 or later
Red Hat Enterprise Linux 7.3 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 11 SP4 or later
SUSE Linux Enterprise Server 12 SP2 or later
SUSE Linux Enterprise Server 15 or later
Ubuntu 16.04.1 LTS or later
Ubuntu 18.04 LTS or later
Ubuntu 20.04 LTS or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
For Cascade Lake processors:
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.5.0 or later
Citrix Hypervisor 8.0.0 or later
Red Hat Enterprise Linux 7.6 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP3 or later
SUSE Linux Enterprise Server 15 or later
Ubuntu 18.04 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 Update2 or later
VMware ESXi 6.7 Update1 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
System Fans
8 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Note: Please contact Technical Support for more information about optimized GPU system operating temperature.
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Note: Please contact Technical Support for more information about optimized GPU system operating temperature.
Weight
30 kg (full packaging)
Packaging Dimensions
1167 x 700 x 309 mm
Packaging Content
1 x H231-H60
4 x CPU heatsinks
1 x Rail kit
1 x VROC module
4 x Non-Fabric CPU carriers
4 x CPU heatsinks
1 x Rail kit
1 x VROC module
4 x Non-Fabric CPU carriers
Part Numbers
- Barebone package: 6NH231H60MR-00*
- Motherboard: 9MH61HD5NR-00
- VROC module: 25FD0-R181N0-10R
- Rail kit: 25HB2-NJ2102-N1R
- CPU heatsink: 25ST1-253208-F2R/25ST1-253209-F2R
- Backplane board - CBPH0O0: 9CBPH0O0NR-NJ
- Fan module: 25ST2-883828-D0R/25ST2-88382A-D0R
- Power supply: 25EP0-222001-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/15A (US): 25CP1-018300-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- Ring topology kit: 6NH23NR48SR-00
- Motherboard: 9MH61HD5NR-00
- VROC module: 25FD0-R181N0-10R
- Rail kit: 25HB2-NJ2102-N1R
- CPU heatsink: 25ST1-253208-F2R/25ST1-253209-F2R
- Backplane board - CBPH0O0: 9CBPH0O0NR-NJ
- Fan module: 25ST2-883828-D0R/25ST2-88382A-D0R
- Power supply: 25EP0-222001-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/15A (US): 25CP1-018300-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- Ring topology kit: 6NH23NR48SR-00
* 사이트에서 제공되는 모든 자료는 참조용일 뿐입니다. 기가바이트는 사이트의 자료를 사전 통지없이 언제든지 수정할 권리를 지닙니다.
* 모든 상표와 로고는 해당 소유자의 자산입니다.
* PC의 표준 아키텍쳐에 의해, 메모리의 특정 부분이 시스템에 사용되어 실제 메모리 크기는 표준보다 적게 표시될 수 있습니다.
* 모든 상표와 로고는 해당 소유자의 자산입니다.
* PC의 표준 아키텍쳐에 의해, 메모리의 특정 부분이 시스템에 사용되어 실제 메모리 크기는 표준보다 적게 표시될 수 있습니다.
SUPPORT
드라이버
BIOS
유틸리티
Firmware
QVL
- All
- All
- Windows Server 2019
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Linux
Chipset
Chipset
버전
사이즈
날짜
Intel® Chipset Driver
Version : 10.1.17861.8101
3.34 MB
Apr 18, 2019
OS: Windows Server 2012 R2 64bit,Windows Server 2016 64bit,Windows Server 2019
Intel® Chipset Driver
Version : 10.1.18228.8176
3.12 MB
Dec 29, 2019
OS: Windows Server 2012 R2 64bit,Windows Server 2016 64bit,Windows Server 2019
SATA RAID/AHCI
SATA RAID/AHCI
버전
사이즈
날짜
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 6.0.0.1357
6.54 MB
Apr 19, 2019
OS: Windows Server 2012 R2 64bit,Windows Server 2016 64bit,Windows Server 2019
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 6.0.0.1357
265.09 MB
Apr 21, 2019
OS: Windows Server 2012 R2 64bit,Windows Server 2016 64bit,Windows Server 2019
Utility
BIOS
설명
버전
사이즈
날짜
1) Includes multiple security updates:
- CVE-2024-28047, CVE-2024-28956
- CWE-190, iSCSI Remote Memory Corruption and Dos.
- CWE-269, UEFI Variable Access - PlatformLang and Timeout.
2) Includes multiple feature updates.
Version : R23
18.88 MB
Nov 27, 2024
Update for security: Vulnerabilities in EDK2 NetworkPkg include CVE-2023-45236, CVE- 2023-45237.
Version : R21
18.87 MB
May 27, 2024
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
경고:
BIOS 플래시는 잠재적인 위험요소가 있기 때문에 현재 버전의 BIOS를 사용하는 동안 문제가 발생하지 않았다면 BIOS를 플래시하지 않는 것을 권장합니다. BIOS를 플래시하려면 조심해야 하며 부적절한 BIOS 플래시는 시스템에 고장을 일으킬 수 있습니다.
What is a BETA?
BETA는 최종 제품의 기능 중 일부는 포함되지 않을 수도 있습니다. BETA 서비스 동안에 제품의 새로운 특징을 미리 살펴볼 수 있으며 기가바이트의 제품을 최대한 경험할 수 있습니다.
BIOS 플래시는 잠재적인 위험요소가 있기 때문에 현재 버전의 BIOS를 사용하는 동안 문제가 발생하지 않았다면 BIOS를 플래시하지 않는 것을 권장합니다. BIOS를 플래시하려면 조심해야 하며 부적절한 BIOS 플래시는 시스템에 고장을 일으킬 수 있습니다.
What is a BETA?
BETA는 최종 제품의 기능 중 일부는 포함되지 않을 수도 있습니다. BETA 서비스 동안에 제품의 새로운 특징을 미리 살펴볼 수 있으며 기가바이트의 제품을 최대한 경험할 수 있습니다.
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
유틸리티
설명
버전
사이즈
날짜
GSM CLI
Version : 2.1.78
147.79 MB
Dec 12, 2024
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
Firmware
설명
버전
사이즈
날짜
BMC Firmware with embedded GIGABYTE Management Console
(AST2500 AMI)
(AST2500 AMI)
Version : 12.61.21
105.38 MB
Apr 11, 2024
English
CMC Firmware (AST2520)
Note: Please make sure the system CMC firmware version is 12.40.19 or later before updating BMC firmware
Note: Please make sure the system CMC firmware version is 12.40.19 or later before updating BMC firmware
Version : 12.41.36
83.16 MB
Nov 02, 2023
English
BMC Firmware (AST1250) for CMC module
NOTE: For System Part Number -100/-A00, please download this file for AST1250 controller
NOTE: For System Part Number -100/-A00, please download this file for AST1250 controller
Version : 1.36
30.83 MB
Jul 22, 2020
English
매뉴얼
설명
버전
사이즈
날짜
User Guide - GIGABYTE Management Console (Vertiv)
Version : 1.2
3.92 MB
Oct 26, 2018
English
User Guide - BIOS setup manual (Intel Purley platform)
Version : 1.0
19.52 MB
Aug 17, 2017
English
설명
버전
사이즈
날짜
RESOURCES
Success Case
Articles
Video
News
Security & Technical Advisory
Others
Back to H231-H60
