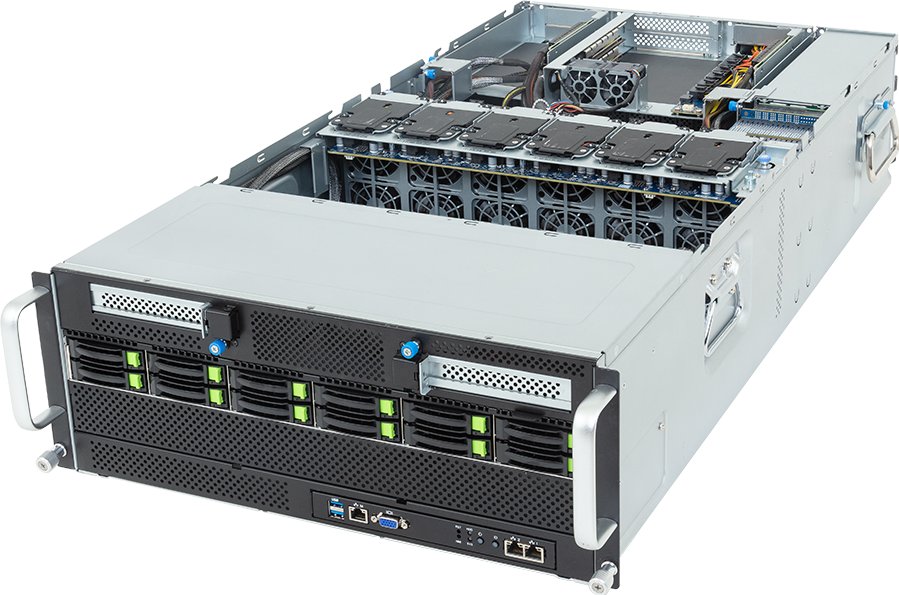

G494-ZB4-AAP2

4U
448 x 176 x 880

MZB3-G41

AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors

Dual processor, cTDP TBD

- NVIDIA OVX Specifications: 2 x AMD EPYC™ 9554

^[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

2 x LGA 6096
Socket SP5

System on Chip

48 x DIMM slots
DDR5 memory supported
12-Channel memory architecture

AMD EPYC™ 9005:
RDIMM: Up to 5200 MT/s (1DPC)
RDIMM: Up to 4400 MT/s (1R 2DPC), 4000 MT/s (2R 2DPC)

AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)

- NVIDIA OVX Specifications: Minimum 768GB DDR5 ECC (1 DIMM per slot)

Front (G-SCM board - CDCG110):
2 x 1Gb/s LAN (1 x Intel^® I350-AM2)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Integrated in Aspeed^® AST2600
- 1 x VGA port

Front hot-swap:
12 x 2.5" Gen5 NVMe/SATA/SAS-4 ^[1]
- (4 x NVMe from PEX89144_0, 4 x NVMe from PEX89144_1)
- (2 x NVMe from CPU_0, 2 x NVMe from CPU_1)
- (SATA from CPU_0)

Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1

- NVIDIA OVX Specifications: 1 x 1TB NVMe Host Boot Drive
- NVIDIA OVX Specifications: 2 x 4TB NVMe Host Storage

^[1] SAS card is required to support SAS drives.

Require SAS add-in cards

Require RAID add-in cards

4 x FHFL x16 (Gen5 x16), from PEX89144_0, for GPUs
4 x FHFL x16 (Gen5 x16), from PEX89144_1, for GPUs

- NVIDIA OVX Specifications: 8 x NVIDIA L40S

1 x FHHL x16 (Gen5 x16), from CPU_0
1 x FHHL x16 (Gen5 x16), from CPU_1

- NVIDIA OVX Specifications: 1 x BlueField-3, B3220 (2x200Gb)

2 x LP x16 (Gen5 x16), from PEX89144_0
2 x LP x16 (Gen5 x16), from PEX89144_1

- NVIDIA OVX Specifications: 4 x ConnectX-7 (2x200Gb)

^[Note] The system supports 8 x NVIDIA H200 NVL PCIe GPUs at 25°C ambient, arranged as two 4-GPU sets, each with a 4-way NVLink bridge.

^[Note] The system is only validated with a uniform GPU model.

G-SCM board - CDCG110:
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED

N/A

Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

4 x 3000W 80 PLUS Titanium redundant power supplies <sup>[1]

[1]</sup> The system power supply requires C19 power cord.

Aspeed^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced power capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

Please refer to OS compatibility table in support page

TBD

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

1200 x 800 x 444 mm w/ pallet

1 x G494-ZB4-AAP2
2 x CPU fansinks
8 x GPU power cables (12VHPWR, 150mm)
1 x L-shape Rail kit

- Barebone package: 6NG494ZB4DR000AAP2*
- Motherboard: 9MZB3G41UR-000-3*
- L-shape Rail kit: 25HB2-A96100-K0R

Optional parts:

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
