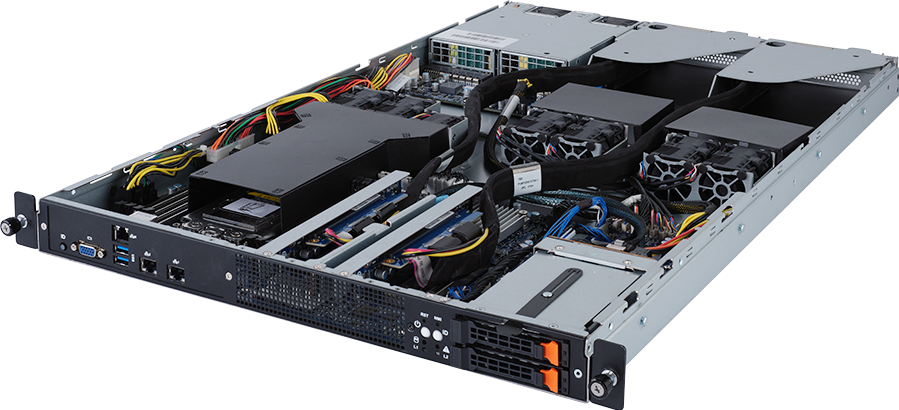

G182-C20
AMD Ryzen™ Threadripper™ Server System
- Up to 2 x PCIe Gen4 GPU cards
- 3rd Gen AMD Ryzen™ Threadripper™ Processors
- Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs
- 2 x 10Gb/s LAN ports (Intel® X550-AT2)
- 1 x Dedicated management port
- 2 x 2.5" Gen3 NVMe/SATA hot-swappable bays
- 1 x M.2 slot with PCIe Gen4 x4 interface
- 2 x FHFL PCIe Gen4 x16 slots for GPUs
- 2 x 1600W 80 PLUS Platinum redundant power supplies
* 사이트에서 제공되는 모든 자료는 참조용일 뿐입니다. 기가바이트는 사이트의 자료를 사전 통지없이 언제든지 수정할 권리를 지닙니다.
* 모든 상표와 로고는 해당 소유자의 자산입니다.
* PC의 표준 아키텍쳐에 의해, 메모리의 특정 부분이 시스템에 사용되어 실제 메모리 크기는 표준보다 적게 표시될 수 있습니다.
* 모든 상표와 로고는 해당 소유자의 자산입니다.
* PC의 표준 아키텍쳐에 의해, 메모리의 특정 부분이 시스템에 사용되어 실제 메모리 크기는 표준보다 적게 표시될 수 있습니다.
SPECIFICATIONS
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 700
438 x 43.5 x 700
Motherboard
MC22-HS1
CPU
Support 3rd Generation AMD Ryzen™ Threadripper™ processors
cTDP up to 280W
cTDP up to 280W
Socket
sTRX4
Chipset
AMD TRX40
Memory
8 x DIMM slots
DDR4 memory supported only
Quad Channel memory architecture
Support for ECC Un-buffered DIMM, non-ECC Un-buffered DIMM modules
Total up to 256GB of system memory (32 GB single DIMM capacity)
Memory speed: Up to 2133/2400/2667/2933/3200 MHz
DDR4 memory supported only
Quad Channel memory architecture
Support for ECC Un-buffered DIMM, non-ECC Un-buffered DIMM modules
Total up to 256GB of system memory (32 GB single DIMM capacity)
Memory speed: Up to 2133/2400/2667/2933/3200 MHz
LAN
Front side:
2 x 10GbE LAN ports ( Intel® X550-AT2), NCSI supported
1 x 10/100/1000 management LAN
2 x 10GbE LAN ports ( Intel® X550-AT2), NCSI supported
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage
Front side:
2 x 2.5" Gen3 NVMe/SATA hot-swappable bays
2 x 2.5" Gen3 NVMe/SATA hot-swappable bays
SAS
N/A
RAID
N/A
Expansion Slots
2 x PCIe x16 (Gen4 x16) FHFL slots, for GPUs
1 x M.2 slot:
- M-key
- PCIe Gen4 x4
- Supports 2280/ 22110 cards
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
1 x M.2 slot:
- M-key
- PCIe Gen4 x4
- Supports 2280/ 22110 cards
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
Internal I/O
1 x TPM header
1 x M.2 slot
1 x Front panel header
1 x M.2 slot
1 x Front panel header
Front I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID LED
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
1 x VGA
2 x RJ45
1 x MLAN
1 x ID LED
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
Rear I/O
N/A
Backplane Board
Speed and bandwidth:
PCIe Gen3 x4 or SATA 6Gb/s
PCIe Gen3 x4 or SATA 6Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
2 x 1600W 80 PLUS Platinum power supplies
AC Input:
- 100-120V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz
DC Input:
- 240Vdc/ 10A
DC Output: - Max 1000W/ 100-120V~ + 12V/ 81.5A + 12Vsb/ 2.5A - Max 1600W/ 200-240V~ or 240Vdc Input
+ 12V/ 133A + 12Vsb/ 2.5A
DC Input:
- 240Vdc/ 10A
DC Output: - Max 1000W/ 100-120V~ + 12V/ 81.5A + 12Vsb/ 2.5A - Max 1600W/ 200-240V~ or 240Vdc Input
+ 12V/ 133A + 12Vsb/ 2.5A
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Windows 10 64-bit
Ubuntu 18.04
Red Hat 7.6
Ubuntu 18.04
Red Hat 7.6
System Fans
1 x 40x40x28mm (25,000rpm)
4 x 40x40x56mm (23,000rpm)
2 x 40x40x56mm (25,000rpm)
4 x 40x40x56mm (23,000rpm)
2 x 40x40x56mm (25,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
985 x 588 x 250 mm
Packaging Content
1 x G182-C20
1 x CPU heatsink
1 x Rail kit
1 x CPU heatsink
1 x Rail kit
Part Numbers
- Barebone package: 6NG182C20MR-00-1*
- Motherboard: 9MC22HS1NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-44320J-A0R
- Front panel board - CFP1000: 9CFP1000NR-00
- Backplane board - CBPG021: 9CBPG021NR-00
- Fan module: 25ST2-442827-D0R/25ST2-445627-D0R/25ST2-44562Q-D0R
- Riser card - CRSG213: 9CRSG213NR-00
- CPU Airduct: 25HA8-G18200-S5R
- GPU Airduct: 25HA8-G18203-TBR
- Power supply: 25EP0-216008-L0S
- Motherboard: 9MC22HS1NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-44320J-A0R
- Front panel board - CFP1000: 9CFP1000NR-00
- Backplane board - CBPG021: 9CBPG021NR-00
- Fan module: 25ST2-442827-D0R/25ST2-445627-D0R/25ST2-44562Q-D0R
- Riser card - CRSG213: 9CRSG213NR-00
- CPU Airduct: 25HA8-G18200-S5R
- GPU Airduct: 25HA8-G18203-TBR
- Power supply: 25EP0-216008-L0S
