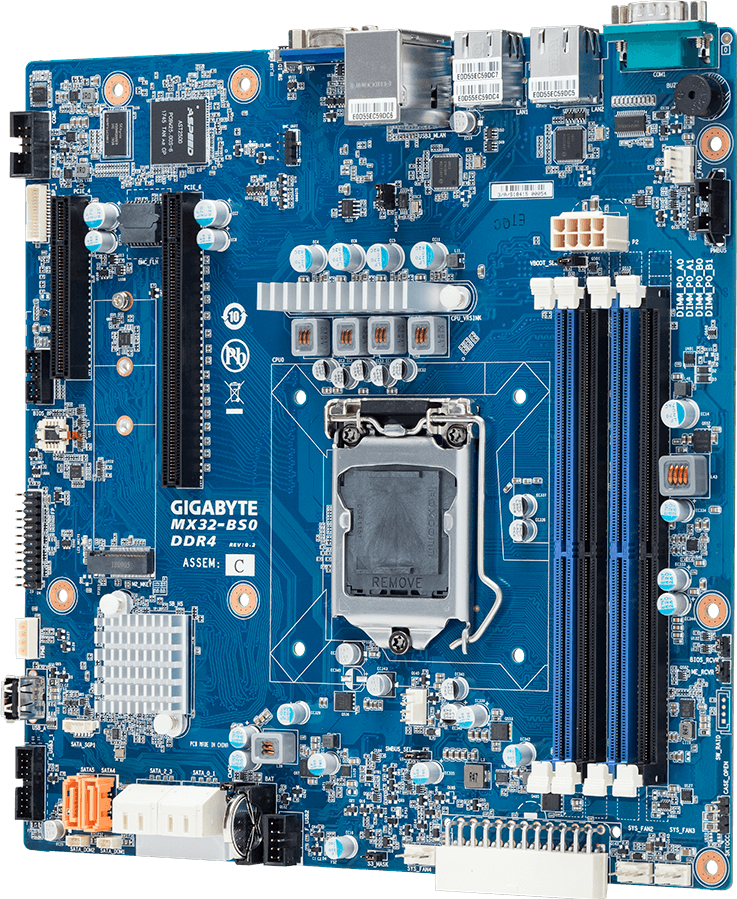

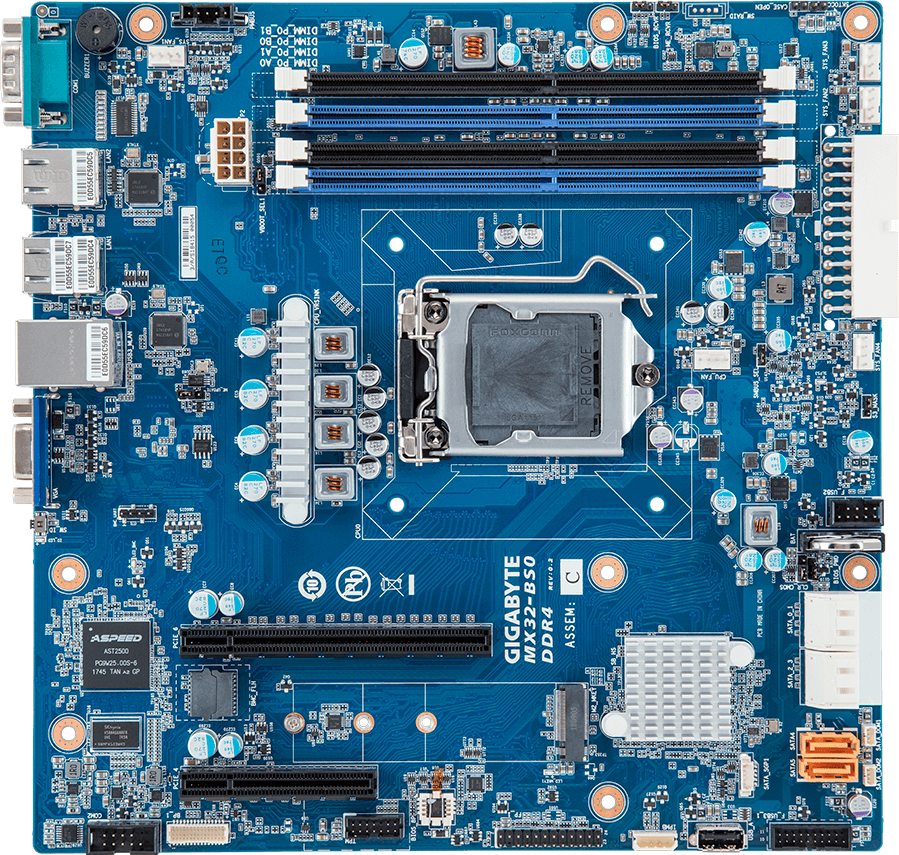

MX32-BS0

Rev. 1.0

Intel^® C242 chipset

Entry and small business server board
microATX form factor
Intel^® Xeon^® Processor E-2100/E-2200 series
Single processor, LGA 1151
Intel® C242 Chipset
4 x UDIMM slots, DDR4 2666/2400MHz
2 x GbE LAN ports (Intel^® I210)
1 x Dedicated management port
6 x SATA III 6Gb/s ports, 2 x SATA DOM supported
1 x M.2 slot PCIe Gen3 x2 interface
2 x PCIe Gen3 x16 and x4 expansion slots
Aspeed^® AST2500 remote management controller

Get a Quote

比較リストに追加

Get a Quote

* ここに記載されている全ての資料は参考用です。 GIGABYTEは、予告なしに変更する場合があります。
* パフォーマンスについては、インターフェイス仕様の理論上の最大値に基づいています。実際のパフォーマンスは、システム構成によって異なる場合があります。
* 記載されている会社名、商品名、およびロゴは各社の商標または登録商標です。
* メモリー容量は、システムリソースに予約され実際の搭載メモリーより少なくなる場合があります。

SPECIFICATIONS

Form Factor

microATX
244W x 244D (mm)

CPU

Intel^® Xeon^® Processor E-2100/E-2200 series
8th Gen. Intel Core™ i3/ Pentium^®/ Celeron^® Processors
Single processor

Socket

1 x LGA 1151

Chipset

Intel^® C242 Chipset

Memory

4 x DIMM slots
Dual channel memory architecture
Supports 1.2V DDR4 memory
ECC UDIMM modules supported
Up to 64GB
Supported speeds: 2666/2400 MHz

LAN

2 x GbE LAN ports (Intel^® I210)
1 x 10/100/1000 management LAN

Video

Integrated in Aspeed^® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Audio

N/A

SAS

N/A

SATA

6 x SATA III 6Gb/s ports
SATA4/SATA5 support SATA DOM

RAID

Intel^® SATA RAID 0/1/10/5

Expansion Slots

1 x PCIe x16 (Gen3 x16 bus) slot
1 x PCIe x8 (Gen3 x4 bus) slot

1 x M.2 slot:
- M-key
- PCIe Gen3 x2 per slot
- Supports NGFF-2242/2260/2280 cards

Internal I/O

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA III 6Gb/s ports
1 x M.2 slot
1 x USB 2.0 vertical port
1 x CPU fan header
4 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM port header
1 x back panel header
1 x TPM header
1 x SATA SGPIO header
2 x SATA DOM headers
1 x Front panel header
1 x JTAG BMC header
1 x Chassis intrusion header
1 x Vboot selection jumper
1 x BIOS recovery jumper
1 x ME recovery jumper
1 x ME update jumper
1 x Force EN jumper
1 x SMBus selection jumper
1 x Clear CMOS jumper
1 x BIOS password jumper
1 x M3 mask jumper
1 x IPMB connector
1 x PMBus connector
1 x Buzzer

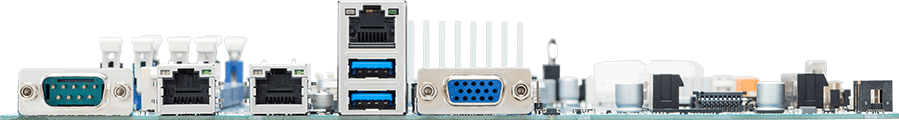

Rear I/O

1 x COM
1 x VGA
2 x RJ45
1 x MLAN
2 x USB 3.0
1 x ID switch

TPM

1 x TPM header

OS Supported

Windows Server 2012 R2 with Update
Windows Server 2016

Red Hat Enterprise Linux 6.9 (x64)
Red Hat Enterprise Linux 7.3 (x64)

SUSE Linux Enterprise Server 11.4 (x64)
SUSE Linux Enterprise Server 12.2 (x64)

Ubuntu 16.04.2 LTS (x64)

VMware ESXi 6.5

Board Management

Aspeed^® AST2500 management controller
AMI MegaRAC SP-X Solution Web interface

Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

PSU Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

Operating Properties

Operating temperature: 0°C to 40°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Retail Packaging Content

1 x MX32-BS0
1 x I/O shield
1 x Quick start guide
4 x SATA III 6Gb/s cables
Box dimensions: 321 x 308.5 x 78.5 mm

Bulk Packaging Content

10 x MX32-BS0
10 x I/O shields
Carton dimensions: 609 x 581 x 362 mm

Reference Numbers

Retail: 9MX32BS0MR-00
Bulk: 9MX32BS0NR-00
TPM module: 9CTM000NR-00 (optional)
