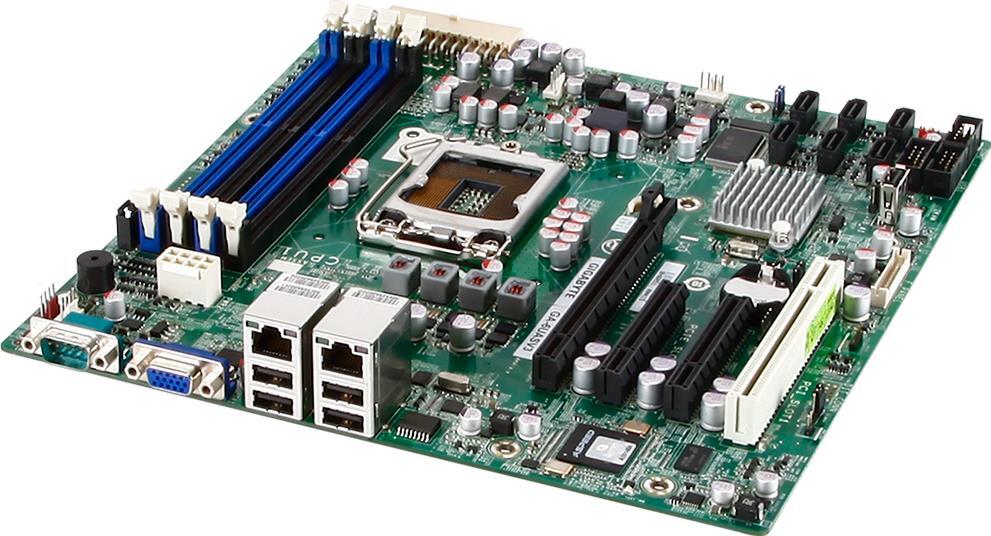

GA-6UASV3

Discontinued

Rev. 1.0

Intel^® C202 chipset

Intel^® Xeon^® processor E3-1200 & E3-1200 V2 product families
4 x UDIMM ECC DIMM slots
2 x GbE LAN ports (Intel^® 82574L & Intel^® 82579LM)
6 x SATA II 3Gb/s ports
Aspeed AST2150
Buy online

The Ideal Base for SMB Server Infrastructure

The GA-6UASV3 is a single socket motherboard addressed to small and medium businesses wishing to benefit from all the main features expected from an entry-level server or workstation of today's technological standards, but at an efficient cost and without compromising high performances.
It answers the main needs of small and medium businesses applications in terms of memory intensity, expansion possibilities and server management capabilities, and is therefore the perfect candidate to gear your server base for the future.
Intel Xeon Inside

Intel Xeon Inside
PCIe Gen.3
Server Management
The GA-6UASV4 is equipped with an ASPEED AST2150 board management controller (BMC), providing support for:
- iKVM
- Native PCIe
- 2D Video Graphic Adapter with PCIe bus interface
Red Hat Certified Hardware

GIGABYTE certifies its server hardware with Red Hat Enterprise Linux to provide its customers with the confidence of knowing that their hardware systems are supported by Red Hat when they run Red Hat Enterprise Linux.
VMware Ready

The VMware Ready program allows customers to quickly identify products and solutions from VMware's partners, which are optimized for VMware vSphere.
The VMware Ready logo certifies that this product addresses VMware's specific criteria in terms of integration and compatibility, and that it is ready to execute mission-critical applications and operations.

* ここに記載されている全ての資料は参考用です。 GIGABYTEは、予告なしに変更する場合があります。
* パフォーマンスについては、インターフェイス仕様の理論上の最大値に基づいています。実際のパフォーマンスは、システム構成によって異なる場合があります。
* 記載されている会社名、商品名、およびロゴは各社の商標または登録商標です。
* メモリー容量は、システムリソースに予約され実際の搭載メモリーより少なくなる場合があります。

SPECIFICATIONS

Form Factor

microATX
244W x 244D (mm)

CPU

Supports Intel^® Xeon^® processor E3-1200 & E3-1200 V2 product families

Socket

1 x LGA 1155

Chipset

Intel^® C202

Memory

4 x DIMM DDR3 slots
Dual channel memory architecture
Supports ECC UDIMM modules only
Supports single rank and dual rank UDIMM modules
Up to 32GB
1.5V modules: 1600/1333/1066 MHz

LAN

2 x GbE LAN ports (Intel^® 82574L & Intel^® 82579LM)

Video

Integrated in Aspeed^® AST2150
2D Video Graphic Adapter with PCIe bus interface
1920x120060Hz 32bpp

Audio

SAS

SATA

6 x SATA II 3Gb/s ports

RAID

Intel^® SATA RAID 0/1/10/5

Expansion Slots

1 x PCIe x16 (Gen3 x8 bus) slot
1 x PCIe x8 (Gen3 x8 bus)slot
1 x PCIe x8 (Gen2 x4 bus)slot
1 x PCI slot

Internal I/O

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA II 3Gb/s connectors
1 x PSMI header
1 x CPU fan header
3 x System fan headers
1 x Front panel header
4 x USB 2.0 headers
1 x Type A USB connector
1 x Serial header
1 x SPGIO header
1 x HDD LED header

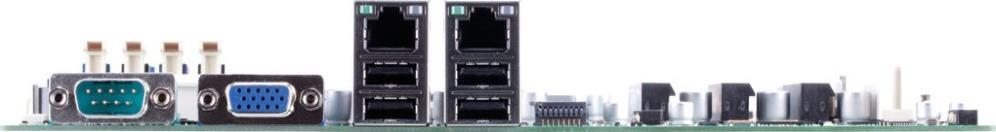

Rear I/O

4 x USB 2.0
1 x Serial
1 x VGA
2 x RJ45
1 x ID button with LED

TPM

OS Supported

Windows Server 2003 R2 + SP2 (x86/x64)
Windows Server 2008 SP2 (x86/x64)
Windows Server 2008 R2 (x64)
Windows Server 2008 R2 SP1 (x64)

Red Hat Enterprise Linux 5.6 (x86/x64)
Red Hat Enterprise Linux 6 (x86/x64)

SUSE Linux Enterprise Server 11.1 (x86/x64)

Board Management

Aspeed^® AST2150 management controller
Avocent^® MergePoint IPMI 2.0 web interface:

Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)

PSU Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

Retail Packaging Content

1 x Driver CD
1 x I/O shield
2 x SATA II 3Gb/s cables (500mm)
1 x Signal cable (200mm)

Reference Numbers

Retail: 9M6UASV3MR-00
Bulk: 9M6UASV3NR-00
