R282-Z97

Rev. A00

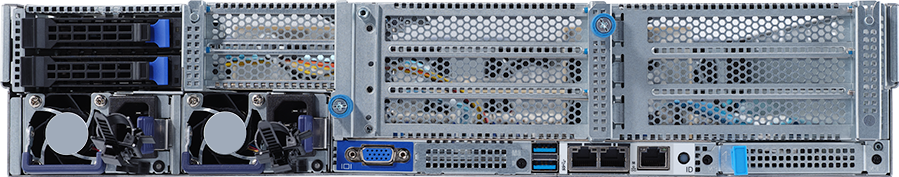

Rack Server - AMD EPYC™ 7003 - 2U DP 12+2-Bay SATA/SAS (Supports Tri-Mode NVMe Storage Adapters)

# Networking

AMD EPYC™ 7003 Series processors
AMD EPYC™ 7003 Series processors with AMD 3D V-Cache™ Technology
Dual processor, 7nm technology
8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
Hardware-level root of trust (optional)
Dual ROM Architecture
2 x 1Gb/s LAN ports (Intel^® I350-AM2)
1 x Dedicated management port
12 x 2.5" SATA/SAS hot-swappable bays
Upgradable for 24 x 2.5" Gen4 NVMe hot-swappable bays
2 x 2.5" SATA hot-swappable bays on rear side
1 x M.2 slot with PCIe Gen4 x4 interface
6 x FHHL PCIe Gen4 x16 and x8 slots
2 x LP PCIe Gen4 x8 slots
1 x OCP 3.0 Gen4 x16 slot
1 x OCP 2.0 Gen3 x8 mezzanine slot
1+1 1600W 80 PLUS Platinum redundant power supplies

Get a Quote

比較リストに追加

Get a Quote

* ここに記載されている全ての資料は参考用です。 GIGABYTEは、予告なしに変更する場合があります。
* パフォーマンスについては、インターフェイス仕様の理論上の最大値に基づいています。実際のパフォーマンスは、システム構成によって異なる場合があります。
* 記載されている会社名、商品名、およびロゴは各社の商標または登録商標です。
* メモリー容量は、システムリソースに予約され実際の搭載メモリーより少なくなる場合があります。

SPECIFICATIONS

Dimensions (WxHxD, mm)

2U
438 x 87 x 730

Motherboard

MZ92-FS2 Rev. 3.0

CPU

AMD EPYC™ 7003 Series processors
AMD EPYC™ 7003 Series processors with AMD 3D V-Cache™ Technology
Dual processor, 7nm technology
Up to 64-core, 128 threads per processor
cTDP up to 280W*

*CPU TDP is limited to 225W if using M.2 device

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable

Compatible with AMD EPYC™ 7002 Series processors

Socket

2 x LGA 4094
Socket SP3

Chipset

System on Chip

Memory

32 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/2933 MHz

*Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC

LAN

Rear side:
2 x 1GbE LAN ports (1 x Intel^® I350-AM2)
Support NCSI function

1 x 10/100/1000 management LAN

Video

Integrated in Aspeed^® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Storage

Front side:
12 x 2.5" SATA/SAS hot-swappable bays
Upgradable for 24 x 2.5" Gen4 NVMe hot-swappable bays

Rear side:
2 x 2.5" SATA hot-swappable bays

SAS card is required for SAS devices support

SAS

Depends on SAS add-on card

RAID

N/A

Expansion Slots

Riser Card CRS2027:
- 2 x PCIe x8 (Gen4 x8) low-profile slots, from CPU_1, available for Tri-Mode NVMe Storage Adapters

Riser Card CRS2033 x 2:
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0
- 2 x PCIe x8 (Gen4 x8) FHHL slots, from CPU_0, available for Tri-Mode NVMe Storage Adapters
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1
- 2 x PCIe x8 (Gen4 x8) FHHL slots, from CPU_1, available for Tri-Mode NVMe Storage Adapters

1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth (Type1, P1, P2), from CPU_1
Supports NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 225W if using M.2 device

Internal I/O

1 x M.2 slot
1 x USB 3.0 header
1 x COM header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper

Front I/O

2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs

Rear I/O

2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED

Backplane Board

Speed and bandwidth:
Front side - CBP20O9: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
Rear side - CBP2022: SATA 6Gb/s or SAS 12Gb/s

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Power Supply

1+1 1600W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-120V~/ 12A, 50-60Hz
- 200-240V~/ 10.0A, 50-60Hz

DC Input:
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-120V~
+ 12V/ 81.5A
+ 12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+ 12V/ 133A
+ 12Vsb/ 2.5A

System Management

Aspeed^® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later

System Fans

4 x 80x80x38mm (16,300rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

982 x 588 x 268 mm

Packaging Content

1 x R282-Z97
2 x CPU heatsinks
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR282Z97MR-00-A*
- Motherboard: 9MZ92FS2NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20O9: 9CBP20O9NR-00
- Backplane board - CBP2022: 9CBP2022NR-00
- Fan module: 25ST2-883829-D0R
- Riser card - CRS2027: 9CRS2027NR-00
- Riser card - CRS2033: 9CRS2033NR-00
- Power supply: 25EP0-216008-L0S

Optional parts:

- Tri-Mode kit-A 600mm - 6NR282Z9HSR-00
- Tri-Mode kit-B 720mm - 6NR282Z9ISR-00
- Tri-Mode kit-C 760mm - 6NR282Z9JSR-00
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR282Z97SR-RMA-A100
