G262-ZR0

Discontinued

Rev. 800 Rev. 100 Rev. A00 Rev. G00

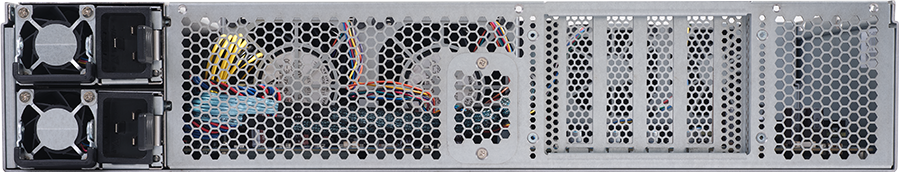

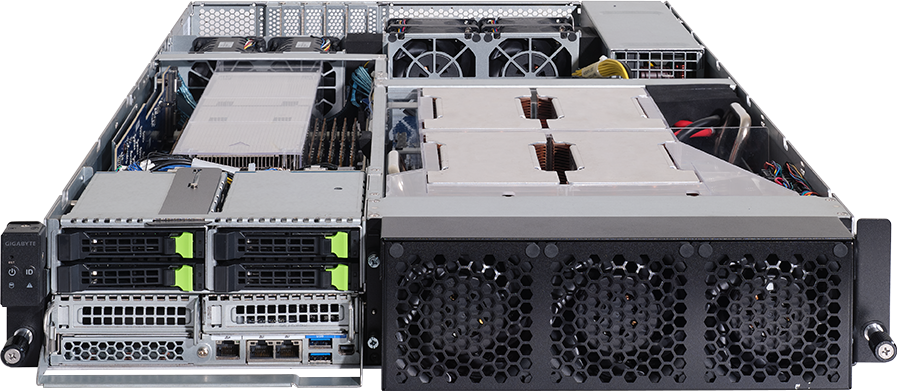

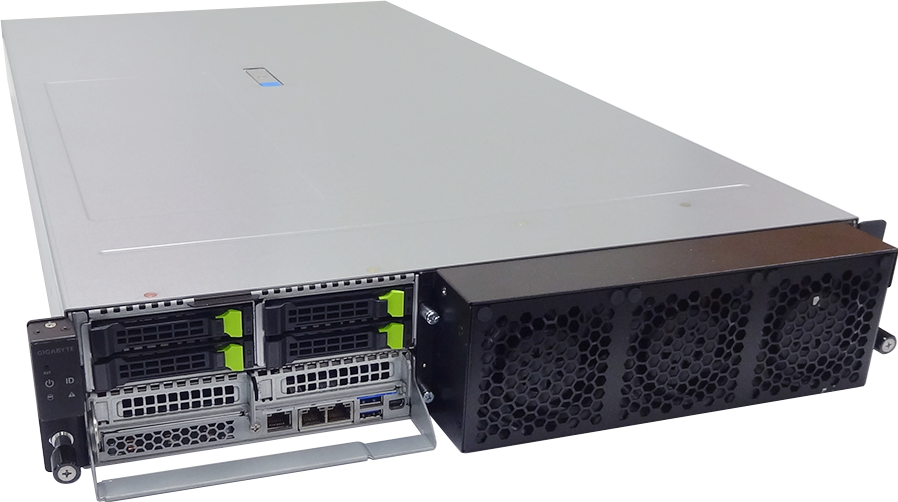

HPC/AI Server - AMD EPYC™ 7002 - 2U DP HGX™ A100 80GB 4-GPU

NVIDIA-Certified Systems™ - Data Center Servers
NVIDIA HGX™ A100 80GB with 4 x SXM4 GPUs
NVIDIA^® NVLink^® technology
Up to 600GB/s GPU to GPU interconnection
AMD EPYC™ 7002 Series processors
Dual processor, 7nm technology
8-Channel RDIMM/LRDIMM DDR4 per processor, 16 x DIMMs
2 x 1Gb/s LAN ports via Intel^® I350-AM2
1 x Dedicated management port
4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
3 x M.2 slots with PCIe Gen4 x4 interface
6 x LP PCIe Gen4 x16 slots
1 x OCP 3.0 Gen4 x16 slot
Dual 3000W 80 PLUS Platinum redundant power supply

* ここに記載されている全ての資料は参考用です。 GIGABYTEは、予告なしに変更する場合があります。
* パフォーマンスについては、インターフェイス仕様の理論上の最大値に基づいています。実際のパフォーマンスは、システム構成によって異なる場合があります。
* 記載されている会社名、商品名、およびロゴは各社の商標または登録商標です。
* メモリー容量は、システムリソースに予約され実際の搭載メモリーより少なくなる場合があります。

SPECIFICATIONS

Dimensions (WxHxD, mm)

2U
448 x 86.8 x 800

Motherboard

MZ62-HD5

CPU

AMD EPYC™ 7002 Series processors
Dual processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 240W, cTDP up to 280W

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable

Socket

2 x LGA 4094
Socket SP3

Chipset

System on Chip

Memory

16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
Total up to 4TB 3DS/RDIMM/LRDIMM modules supported
Memory speed: Up to 3200/2933 MHz

LAN

Front side:
2 x 1GbE LAN ports (1 x Intel^® I350-AM2)
Support NCSI function

1 x 10/100/1000 management LAN

Video

Integrated in Aspeed^® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Storage

Front side:
4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays

SAS card is required for SAS devices support

SAS

Depends on SAS add-on card

RAID

N/A

Expansion Slots

NVIDIA HGX™ A100 80GB with 4 x SXM4 GPUs

Front side:
1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_1

Rear side:
4 x PCIe x16 (Gen4 x16) low-profile slots, from PEX88096

1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function by onboard NCSI_SW

1 x M.2 slot (Onboard):
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2280/22110 cards

2 x M.2 slots (CMTP072):
- M-key
- PCIe Gen4 x4, from CPU_1
- Support 2242/2260/2280/22110 cards

Internal I/O

3 x M.2 slots
1 x TPM header
1 x Front panel header

Front I/O

2 x USB 3.0
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x HDD access LED

Rear I/O

N/A

Backplane Board

Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Power Supply

Dual 3000W 80 PLUS Platinum redundant power supply

AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-240V~/ 15.8A, 50-60Hz

DC Input:
- 240Vdc/ 14A

DC Output:
- Max 1200W/ 100-127V~
+ 54V/ 95.6A
+ 12Vsb/ 3.5A
- Max 3000W/ 200-240V~
+ 54V/ 178.1A
+ 12Vsb/ 3.5A

NOTE: The system power supply requires C19 power cord

System Management

Aspeed^® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019

Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP4 (x64) or later
SUSE Linux Enterprise Server 15 SP1 (x64) or later

Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.1.0 or later

System Fans

2 x 60x60x76mm (21,700rpm)
5 x 80x80x80mm (17,000rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Weight

Gross Weight: 43.5 kg

Packaging Dimensions

1077 x 679 x 300 mm

Packaging Content

1 x G262-ZR0
2 x CPU fansinks
1 x L-shape Rail kit

Part Numbers

- Barebone w/ 80GB module: 6NG262ZR0MR-00-8*
- Motherboard: 9MZ62HD5NR-00
- L-shape Rail kit: 25HB2-A86102-K0R
- CPU fansink: 25ST1-3532G0-M1R/25ST1-3532G1-M1R
- GPU heatsink: 25ST1-2532G0-F2R
- Front panel board - CFP1000: 9CFP1000NR-00
- Backplane board - CBP2023: 9CBP2023NR-00
- Fan module: 25ST2-667630-S1R
- Fan module: 25ST2-808034-S1R
- Fan module: 25ST2-808035-S1R
- Power supply: 25EP0-230003-D0S

Optional parts:

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- RMA packaging: 6NG262ZR0SR-RMA-A100
