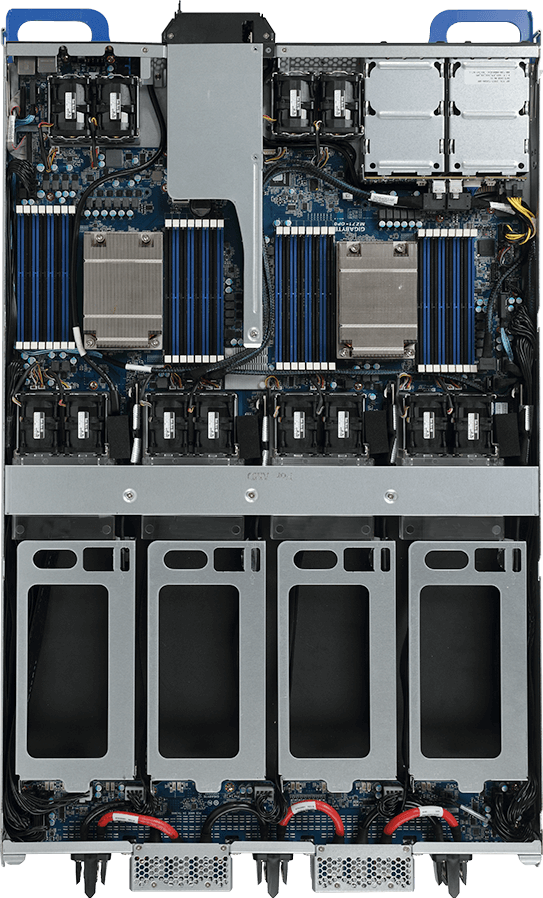

- T181-Z70
- Supports up to 4 x PCIe double slot GPU cards
- AMD EPYC™ 7003 series processor family
- 8-Channel RDIMM/LRDIMM DDR4, 32 x DIMMs
- 2 x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
- 1 x Dedicated management port
- 4 x 2.5" hot-swappable HDD/SSD bays
- 2 x low profile PCIe Gen3 expansion slots
- Aspeed® AST2500 remote management controller
* ここに記載されている全ての資料は参考用です。 GIGABYTEは、予告なしに変更する場合があります。
* パフォーマンスについては、インターフェイス仕様の理論上の最大値に基づいています。 実際のパフォーマンスは、システム構成によって異なる場合があります。
* 記載されている会社名、商品名、およびロゴは各社の商標または登録商標です。
* メモリー容量は、システムリソースに予約され実際の搭載メモリーより少なくなる場合があります。
* パフォーマンスについては、インターフェイス仕様の理論上の最大値に基づいています。 実際のパフォーマンスは、システム構成によって異なる場合があります。
* 記載されている会社名、商品名、およびロゴは各社の商標または登録商標です。
* メモリー容量は、システムリソースに予約され実際の搭載メモリーより少なくなる場合があります。
SPECIFICATIONS
Dimensions (WxHxD, mm)
1OU
537 x 46.5 x 799.2
537 x 46.5 x 799.2
Motherboard
MZ71-OP0 Rev. 3.0
CPU
AMD EPYC™ 7003 series processor family
Single processor, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Conditional support 280W
Ambient temperature limited to 25°C if using 280W CPU
Compatible with AMD EPYC™ 7002 series processor family
Single processor, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Conditional support 280W
Ambient temperature limited to 25°C if using 280W CPU
Compatible with AMD EPYC™ 7002 series processor family
Memory
32 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/ 2933 MHz
- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/ 2933 MHz
- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
LAN
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Storage
Front side: 4 x 2.5" hot-swap HDD/SSD bays
Supports SATA or NVMe hybrid mode
Supports SATA or NVMe hybrid mode
SAS
Depends on RAID card
RAID
Depends on RAID card
Expansion Slots
4 x PCIe x16 slots (Gen3 x16 bus) for GPUs
Riser Card CRS1026:
2 x PCIe x16 (Gen3 x16 bus) Half-length low-profile slots ( Front side)
NOTE: Support is not provided for mixed GPU populations
Riser Card CRS1026:
2 x PCIe x16 (Gen3 x16 bus) Half-length low-profile slots ( Front side)
NOTE: Support is not provided for mixed GPU populations
Front I/O
1 x VGA
2 x RJ45
1 x MLAN
2 x USB3.0
1 x Power Switch
1 x ID Switch
1 x NMI Switch
1 x Status LED
1 x Reset Switch
1 x HDD access LED
2 x RJ45
1 x MLAN
2 x USB3.0
1 x Power Switch
1 x ID Switch
1 x NMI Switch
1 x Status LED
1 x Reset Switch
1 x HDD access LED
Rear I/O
N/A
Power Supply
From bus-bar, supports OCP Version 1.0 power cable
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
System Fans
12 x 40x40x56mm (25000rpm) fan modules
Packaging Dimensions
1095 x 709 x 235 mm
Packaging Content
1 x T181-Z70
2 x CPU heatsinks
2 x CPU heatsinks
Part Numbers
Barebone package: 6NT181Z70MR-00 Rev. B00
Part Numbers:
- Motherboard: 9MZ71OP0NR-00 Rev. 3.0
- CPU heatsink: 25ST1-44320G-A0R
- Front Back plane board_4-port: 9COBPU40NR-00
- Front panel board: 9COFP420NR-00
- Riser card - CRS1026: 9CRS1026NR-00
Part Numbers:
- Motherboard: 9MZ71OP0NR-00 Rev. 3.0
- CPU heatsink: 25ST1-44320G-A0R
- Front Back plane board_4-port: 9COBPU40NR-00
- Front panel board: 9COFP420NR-00
- Riser card - CRS1026: 9CRS1026NR-00
* ここに記載されている全ての資料は参考用です。 GIGABYTEは、予告なしに変更する場合があります。
* パフォーマンスについては、インターフェイス仕様の理論上の最大値に基づいています。 実際のパフォーマンスは、システム構成によって異なる場合があります。
* 記載されている会社名、商品名、およびロゴは各社の商標または登録商標です。
* メモリー容量は、システムリソースに予約され実際の搭載メモリーより少なくなる場合があります。
* パフォーマンスについては、インターフェイス仕様の理論上の最大値に基づいています。 実際のパフォーマンスは、システム構成によって異なる場合があります。
* 記載されている会社名、商品名、およびロゴは各社の商標または登録商標です。
* メモリー容量は、システムリソースに予約され実際の搭載メモリーより少なくなる場合があります。
SUPPORT
ドライバー
BIOS
ユーティリティリスト
Firmware
QVL
- All
- All
- Windows Server 2019
- Windows Server 2016 64bit
Chipset
LAN
LAN
バージョン
サイズ
日付
Intel® LAN Driver and Utility
Version : 24.0
542.58 MB
Aug 06, 2019
OS: Windows Server 2016 64bit,Windows Server 2019
VGA
VGA
バージョン
サイズ
日付
ASPEED Graphic Driver
Version : 1.06
1.78 MB
Aug 06, 2019
OS: Windows Server 2016 64bit,Windows Server 2019
BIOS
詳細
バージョン
サイズ
日付
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
注意:
BIOSのアップデートは注意して行ってください。
なお、現在のBIOSバージョンで問題が発生していない場合は、アップデートを行う必要はありません。BIOSアップデートに失敗すると、PCが起動しなくなる可能性があります。
BETAとは何ですか?
BETAは仕様確定前の機能プレビュー版です。このバージョンは、新機能に対するお客様からのご要望やご意見を頂くためのものです。
BIOSのアップデートは注意して行ってください。
なお、現在のBIOSバージョンで問題が発生していない場合は、アップデートを行う必要はありません。BIOSアップデートに失敗すると、PCが起動しなくなる可能性があります。
BETAとは何ですか?
BETAは仕様確定前の機能プレビュー版です。このバージョンは、新機能に対するお客様からのご要望やご意見を頂くためのものです。
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
ユーティリティリスト
詳細
バージョン
サイズ
日付
GSM CLI
Version : 2.1.76
147.87 MB
May 22, 2024
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
Firmware
詳細
バージョン
サイズ
日付
BMC Firmware with embedded GIGABYTE Management Console
(AST2500 AMI)
(AST2500 AMI)
Version : 12.61.21
105.38 MB
Apr 11, 2024
