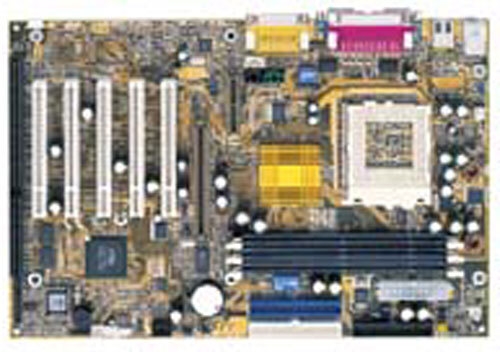

GA-6VX7-4X (Rev. 1.2)

SpecificheSupportoNotizie/RiconoscimentiWhere to Buy

Specifiche

  • CPU
    1. Socket 370 for Intel® and other compatible processors
    2. Supports CPU multiplier 3.0~8.0 for future processors
    3. Auto/66/75*/83*/100/112*/124*/133/140*/150* MHz FSB
    4. AUTO Detect CPU Voltage
  • Chipset
    1. VIA Apollo Pro Family AGPset; AC97 codec
  • Memory
    1. 8MB to 1.5GB SDRAM size
    2. 3 x 3.3V DIMM sockets
    3. Supports 8/16/32/64/128/256/512 MB SDRAM DIMM module
    4. Supports ECC type DIMM module (72bits)
  • Expansion Slots
    1. 1 x AMR (Audio Modem Riser) slot
    2. 1 x AGP slot supports 2X / 4X mode
    3. 5 x PCI slots support 33MHz & PCI 2.2 compliant
    4. 1 x ISA slot
  • I/O Controller
    1. 2 x Ultra DMA 33/66 Bus Master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 2 x USB ports on board
    5. 2 x USB ports by cable (optional accessary)
    6. IrDA TX / RX Header ready
  • H/W Monitoring
    1. Auto speed down and alarm when CPU overheat or fan failure (OS independent & driverless)
    2. 3 fan power & speed detection connectors
    3. System health status detect & report by BIOS
    4. H/W detect +5V, +12V, CPU voltage & CMOS battery status
  • BIOS
    1. 2Mbit flash RAM
    2. AMI BIOS with enhanced ACPI feature for PC98/Win98 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
  • Form Factor
    1. ATX , 4 layer PCB (30.5*20.3 cm)
  • Driver
    1. VIA Ultra DMA 33/66 Bus Master IDE driver
    2. VIA AGP GART VxD & power management controller driver
    3. VIA patch 95 driver
    4. VIA Windows 98 IRQ routing driver
  • Other Features
    1. Suspend-To-RAM (STR)
    2. Includes Wake-On-LAN header (WOL); Includes Wake-On-Ring (WOR)
    3. Supports Internal / External modem wake on
    4. Poly fuse for keyboard, USB & game overcurrent protection
  • Power
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & Switch
    3. Power-off by Windows 98 shut down & Switch
    4. Wake-up by USB device
    5. Suspend / Wake-on by ACPI & APM device
    6. AC recovery ON/OFF control; 3 level ACPI LED support
  • CPU
    1. Socket 370 for Intel® and other compatible processors
    2. Supports CPU multiplier 3.0~8.0 for future processors
    3. Auto/66/75*/83*/100/112*/124*/133/140*/150* MHz FSB
    4. AUTO Detect CPU Voltage
  • Chipset
    1. VIA Apollo Pro Family AGPset; AC97 codec
  • Memory
    1. 8MB to 1.5GB SDRAM size
    2. 3 x 3.3V DIMM sockets
    3. Supports 8/16/32/64/128/256/512 MB SDRAM DIMM module
    4. Supports ECC type DIMM module (72bits)
  • Expansion Slots
    1. 1 x AMR (Audio Modem Riser) slot
    2. 1 x AGP slot supports 2X / 4X mode
    3. 5 x PCI slots support 33MHz & PCI 2.2 compliant
    4. 1 x ISA slot
  • I/O Controller
    1. 2 x Ultra DMA 33/66 Bus Master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 2 x USB ports on board
    5. 2 x USB ports by cable (optional accessary)
    6. IrDA TX / RX Header ready
  • H/W Monitoring
    1. Auto speed down and alarm when CPU overheat or fan failure (OS independent & driverless)
    2. 3 fan power & speed detection connectors
    3. System health status detect & report by BIOS
    4. H/W detect +5V, +12V, CPU voltage & CMOS battery status
  • BIOS
    1. 2Mbit flash RAM
    2. AMI BIOS with enhanced ACPI feature for PC98/Win98 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
  • Form Factor
    1. ATX , 4 layer PCB (30.5*20.3 cm)
  • Driver
    1. VIA Ultra DMA 33/66 Bus Master IDE driver
    2. VIA AGP GART VxD & power management controller driver
    3. VIA patch 95 driver
    4. VIA Windows 98 IRQ routing driver
  • Other Features
    1. Suspend-To-RAM (STR)
    2. Includes Wake-On-LAN header (WOL); Includes Wake-On-Ring (WOR)
    3. Supports Internal / External modem wake on
    4. Poly fuse for keyboard, USB & game overcurrent protection
  • Power
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & Switch
    3. Power-off by Windows 98 shut down & Switch
    4. Wake-up by USB device
    5. Suspend / Wake-on by ACPI & APM device
    6. AC recovery ON/OFF control; 3 level ACPI LED support

* I termini HDMI, Interfaccia multimediale ad alta definizione HDMI (HDMI High- Definition Multimedia Interface), immagine commerciale HDMI (HDMI Trade dress) e i loghi HDMI sono marchi commerciali o marchi commerciali registrati di HDMI Licensing Administrator, Inc.
* I materiali qui forniti sono solo di riferimento. GIGABYTE si riserva il diritto di modificare o rivedere il contenuto in qualsiasi momento senza preavviso.
* Le prestazioni pubblicate si basano su valori massimi teorici fornite dai rispettivi fornitori di chipset o organizzazione che hanno definito le specifiche di interfaccia. Le prestazioni effettive possono variare in base alla configurazione del sistema.
* Tutti i marchi ei loghi sono di proprietà dei rispettivi titolari.
* A causa dell'architettura standard del PC, una certa quantità di memoria è riservata al sistema e quindi la capacità di memoria reale è inferiore a quella dichiarata.
