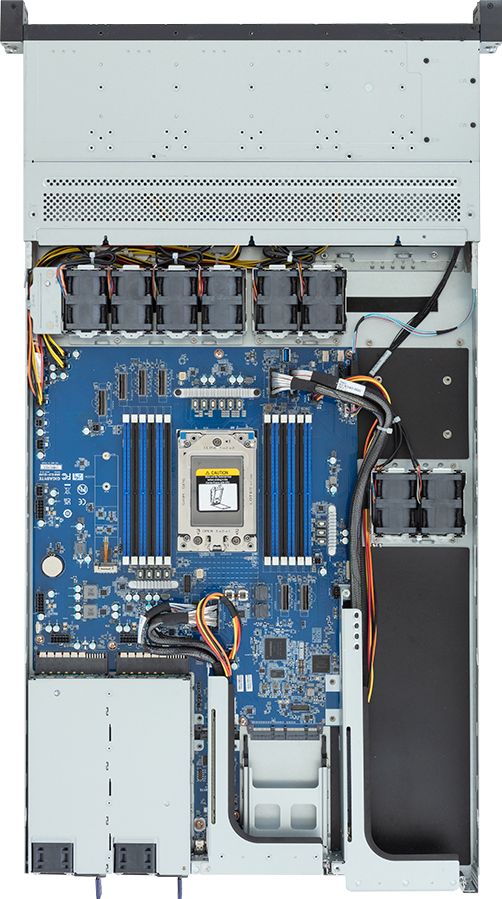

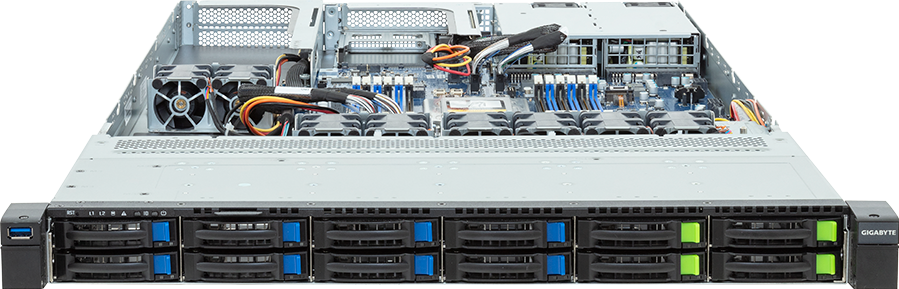

R143-EG2-AAC2
Rack Server - AMD EPYC™ 8004 - 1U UP 1 x PCIe Gen5 GPU
- Supports 1 x Dual slot Gen5 GPU
- Single AMD EPYC™ 8004 Series Processors
- 6-Channel DDR5 RDIMM, 12 x DIMMs
- Dual ROM Architecture
- 4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
- 8 x 2.5" SATA/SAS hot-swappable bays
- 1 x M.2 slot with PCIe Gen3 x4 interface
- 1 x FHFL PCIe Gen5 x16 slot for GPUs
- 1 x FHFL PCIe Gen5 x16 slot
- 1 x FHHL PCIe Gen5 x16 slot
- 1 x OCP 3.0 Gen5 x16 slot
- 1+1 1300W 80 PLUS Platinum redundant power supplies
* I materiali qui forniti sono solo di riferimento. GIGABYTE si riserva il diritto di modificare o rivedere il contenuto in qualsiasi momento senza preavviso.
* Le prestazioni pubblicate si basano su valori massimi teorici fornite dai rispettivi fornitori di chipset o organizzazione che hanno definito le specifiche di interfaccia. Le prestazioni effettive possono variare in base alla configurazione del sistema.
* Tutti i marchi ei loghi sono di proprietà dei rispettivi titolari.
* A causa dell'architettura standard del PC, una certa quantità di memoria è riservata al sistema e quindi la capacità di memoria reale è inferiore a quella dichiarata.
* Le prestazioni pubblicate si basano su valori massimi teorici fornite dai rispettivi fornitori di chipset o organizzazione che hanno definito le specifiche di interfaccia. Le prestazioni effettive possono variare in base alla configurazione del sistema.
* Tutti i marchi ei loghi sono di proprietà dei rispettivi titolari.
* A causa dell'architettura standard del PC, una certa quantità di memoria è riservata al sistema e quindi la capacità di memoria reale è inferiore a quella dichiarata.
SPECIFICATIONS
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 815
438 x 43.5 x 815
Motherboard
MEG3-GU0
CPU
AMD EPYC™ 8004 Series Processors
Single processor, 5nm technology
Up to 64 cores, 128 threads
cTDP up to 225W
Single processor, 5nm technology
Up to 64 cores, 128 threads
cTDP up to 225W
Socket
1 x LGA 4844
Socket SP6
Socket SP6
Chipset
System on Chip
Memory
12 x DIMM slots
DDR5 memory supported only
6-Channel memory architecture
RDIMM up to 96GB supported
Memory speed: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)
DDR5 memory supported only
6-Channel memory architecture
RDIMM up to 96GB supported
Memory speed: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)
LAN
Rear side:
1 x 10/100/1000 Mbps Management LAN
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Front side:
4 x 2.5" Gen4 NVMe/SATA/SAS* hot-swappable bays
8 x 2.5" SATA/SAS* hot-swappable bays
*SAS card is required to support SAS drives.
4 x 2.5" Gen4 NVMe/SATA/SAS* hot-swappable bays
8 x 2.5" SATA/SAS* hot-swappable bays
*SAS card is required to support SAS drives.
SAS
Require SAS add-in cards
RAID
Require RAID add-in cards
Expansion Slots
PCIe Cable x 3:
- 1 x PCIe x16 (Gen5 x16) FHFL slot, for GPUs
- 1 x PCIe x16 (Gen5 x16) FHFL slot, occupied when Dual slot GPU is installed
- 1 x PCIe x16 (Gen5 x16) FHHL slot
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth
Supports NCSI function
1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports 2280/22110 cards
- 1 x PCIe x16 (Gen5 x16) FHFL slot, for GPUs
- 1 x PCIe x16 (Gen5 x16) FHFL slot, occupied when Dual slot GPU is installed
- 1 x PCIe x16 (Gen5 x16) FHHL slot
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth
Supports NCSI function
1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports 2280/22110 cards
Internal I/O
1 x TPM header
Front I/O
1 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs (disabled)
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs (disabled)
1 x Storage activity LED
1 x System status LED
Rear I/O
2 x USB 3.2 Gen1
1 x Mini-DP
1 x MLAN
1 x ID LED
1 x Mini-DP
1 x MLAN
1 x ID LED
Backplane Board
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
1+1 1300W 80 PLUS Platinum redundant power supplies
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 6.5A
DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12V/ 105.4A
+12Vsb/ 3A
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 6.5A
DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12V/ 105.4A
+12Vsb/ 3A
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
8 x 40x40x56mm (29,700rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1038 x 588 x 238 mm
Packaging Content
1 x R143-EG2-AAC2
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
1 x GPU power cable (12VHPWR, 450mm)
1 x 2-Section Rail kit
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
1 x GPU power cable (12VHPWR, 450mm)
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR143EG2DR000AAC2*
- Motherboard: 9MEG3GU0UR-000
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-44320G-A0R
- M.2 heatsink: 12SP2-11000E-00R
- Front board - CFP1030: 9CFP1030NR-00
- Backplane board - CBP10C0: 9CBP10C0NR-00
- Fan module: 25ST2-405623-A0R
- I/O board - CBG70: 9CBG70NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (12VHPWR, 450mm): 25CRI-450101-Y4R
- Power supply: 25EP0-21300B-F3S
Optional parts:
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- Motherboard: 9MEG3GU0UR-000
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-44320G-A0R
- M.2 heatsink: 12SP2-11000E-00R
- Front board - CFP1030: 9CFP1030NR-00
- Backplane board - CBP10C0: 9CBP10C0NR-00
- Fan module: 25ST2-405623-A0R
- I/O board - CBG70: 9CBG70NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (12VHPWR, 450mm): 25CRI-450101-Y4R
- Power supply: 25EP0-21300B-F3S
Optional parts:
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
