High Density Server - AMD EPYC™ 9005/9004 - 2U 2-Node DP 4 x PCIe Gen5 GPUs 2600W
- Supports up to 4 x Dual slot Gen5 GPUs

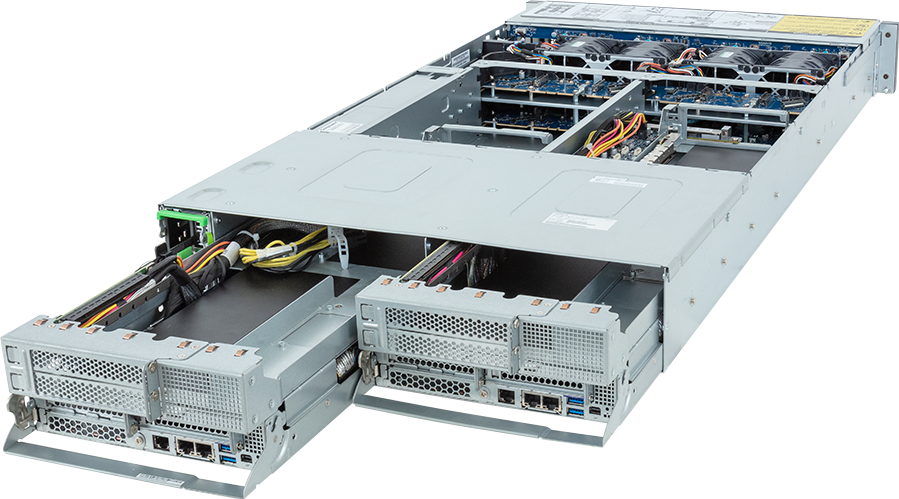

- 2U 2-node rear access server system
- Dual AMD EPYC™ 9005/9004 Series Processors per node
- 12-Channel DDR5 RDIMM, 24 x DIMMs per node
- Dual ROM Architecture
- 4 x 1Gb/s LAN ports via Intel® I350-AM2
- 4 x 2.5" Gen4 NVMe hot-swap bays
- 4 x FHFL PCIe Gen5 x16 slots for GPUs
- 2 x LP PCIe Gen5 x16 slots
- 2 x OCP NIC 3.0 PCIe Gen5 x16 slots
- Dual 2600W 80 PLUS Titanium redundant power supply
* I materiali qui forniti sono solo di riferimento. GIGABYTE si riserva il diritto di modificare o rivedere il contenuto in qualsiasi momento senza preavviso.
* Le prestazioni pubblicate si basano su valori massimi teorici fornite dai rispettivi fornitori di chipset o organizzazione che hanno definito le specifiche di interfaccia. Le prestazioni effettive possono variare in base alla configurazione del sistema.
* Tutti i marchi ei loghi sono di proprietà dei rispettivi titolari.
* A causa dell'architettura standard del PC, una certa quantità di memoria è riservata al sistema e quindi la capacità di memoria reale è inferiore a quella dichiarata.
* Le prestazioni pubblicate si basano su valori massimi teorici fornite dai rispettivi fornitori di chipset o organizzazione che hanno definito le specifiche di interfaccia. Le prestazioni effettive possono variare in base alla configurazione del sistema.
* Tutti i marchi ei loghi sono di proprietà dei rispettivi titolari.
* A causa dell'architettura standard del PC, una certa quantità di memoria è riservata al sistema e quindi la capacità di memoria reale è inferiore a quella dichiarata.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U 2-Node - Rear access
440 x 87.5 x 877
440 x 87.5 x 877
Motherboard
MZ83-HD0
CPU
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Dual processor per node, cTDP up to 240W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
AMD EPYC™ 9004 Series Processors
Dual processor per node, cTDP up to 240W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
4 x LGA 6096
Socket SP5
Socket SP5
Chipset
System on Chip
Memory
48 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
AMD EPYC™ 9005:
RDIMM: Up to 6000 MT/s
AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s
DDR5 memory supported
12-Channel memory architecture
AMD EPYC™ 9005:
RDIMM: Up to 6000 MT/s
AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s
LAN
Rear:
4 x 1Gb/s LAN (2 x Intel® I350-AM2)
- Support NCSI function
2 x 10/100/1000 Mbps Management LAN
[Note] Spanning Tree Protocol (STP) must be enabled on LAN switches when using a ring topology.
4 x 1Gb/s LAN (2 x Intel® I350-AM2)
- Support NCSI function
2 x 10/100/1000 Mbps Management LAN
[Note] Spanning Tree Protocol (STP) must be enabled on LAN switches when using a ring topology.
Video
Integrated in Aspeed® AST2600 x 2
- 2 x Mini-DP
- 2 x Mini-DP
Storage
Front hot-swap:
4 x 2.5" Gen4 NVMe
- (NVMe from CPU_1)
4 x 2.5" Gen4 NVMe
- (NVMe from CPU_1)
SAS
N/A
RAID
N/A
PCIe Expansion Slots
PCIe Cable x 4:
- 4 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
Riser Card CRSH01R x 2:
- 2 x LP x16 (Gen5 x16), from CPU_0
2 x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Support NCSI function
- 4 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
Riser Card CRSH01R x 2:
- 2 x LP x16 (Gen5 x16), from CPU_0
2 x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Support NCSI function
Front I/O
4 x Power buttons with LED (2 x buttons disabled)
4 x ID buttons with LED (2 x buttons disabled)
4 x Reset buttons (2 x buttons disabled)
4 x System status LEDs (2 x LEDs disabled)
1 x CMC status LED
1 x CMC reset button
[Note] Node 1 and Node 3 are disabled.
4 x ID buttons with LED (2 x buttons disabled)
4 x Reset buttons (2 x buttons disabled)
4 x System status LEDs (2 x LEDs disabled)
1 x CMC status LED
1 x CMC reset button
[Note] Node 1 and Node 3 are disabled.
Rear I/O
4 x USB 3.2 Gen1 ports (Type-A)
2 x Mini-DP
4 x RJ45 ports
2 x MLAN ports
2 x System status LEDs
2 x Mini-DP
4 x RJ45 ports
2 x MLAN ports
2 x System status LEDs
Backplane Board
Speed and bandwidth:
PCIe Gen4 x4
PCIe Gen4 x4
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
Dual 2600W 80 PLUS Titanium redundant power supply [1]
AC Input:
- 100-127V~/ 15A, 50-60Hz
- 200-240V~/ 15A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 15A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 4.5A
- Max 2600W/ 200-240V~ or 240Vdc Input
+12.2V/ 213A
+12.2Vsb/ 4.5A
[1] The system power supply requires C19 power cord.
AC Input:
- 100-127V~/ 15A, 50-60Hz
- 200-240V~/ 15A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 15A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 4.5A
- Max 2600W/ 200-240V~ or 240Vdc Input
+12.2V/ 213A
+12.2Vsb/ 4.5A
[1] The system power supply requires C19 power cord.
System Management
Aspeed® AST2600 Baseboard Management Controller
Aspeed® AST2520 Chassis Management Controller
GIGABYTE Management Console web interface
Aspeed® AST2520 Chassis Management Controller
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
4 x 80x80x80mm (16,500rpm)
Operating Properties
Operating temperature: 10°C to 30°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 59.1 kg
Gross Weight: 61.4 kg
Gross Weight: 61.4 kg
Packaging Dimensions
1179 x 700 x 380 mm
Packaging Content
1 x H233-Z80-AAN1
4 x CPU heatsinks
1 x Mini-DP to D-Sub cable
4 x GPU power cables (CPU 8pin, 400mm)
1 x 3-Section Rail kit
4 x CPU heatsinks
1 x Mini-DP to D-Sub cable
4 x GPU power cables (CPU 8pin, 400mm)
1 x 3-Section Rail kit
Part Numbers
- Barebone package: 6NH233Z80DR000ACN1*
- Motherboard: 9MZ83HD0UR-000-3*
- 3-Section Rail kit: 25HB2-A66125-K0R
- CPU heatsink: 25ST1-25320N-M1R/25ST1-25320Q-M1R
- Front panel board - CFPH004: 9CFPH004NR-00*
- Backplane board - CBPH081: 9CBPH081NR-00*
- Fan module: 25ST2-888020-S1R
- Riser card - CRSH01R: 9CRSH01RNR-00*
- I/O board (incl. LAN chip) - CLBH160: 9CLBH160NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (CPU 8pin, 400mm): 25CRI-4001D0-B1R
- Power supply: 25EP0-226001-G1S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NH233Z80SR-RMA-A100
- Motherboard: 9MZ83HD0UR-000-3*
- 3-Section Rail kit: 25HB2-A66125-K0R
- CPU heatsink: 25ST1-25320N-M1R/25ST1-25320Q-M1R
- Front panel board - CFPH004: 9CFPH004NR-00*
- Backplane board - CBPH081: 9CBPH081NR-00*
- Fan module: 25ST2-888020-S1R
- Riser card - CRSH01R: 9CRSH01RNR-00*
- I/O board (incl. LAN chip) - CLBH160: 9CLBH160NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (CPU 8pin, 400mm): 25CRI-4001D0-B1R
- Power supply: 25EP0-226001-G1S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NH233Z80SR-RMA-A100
