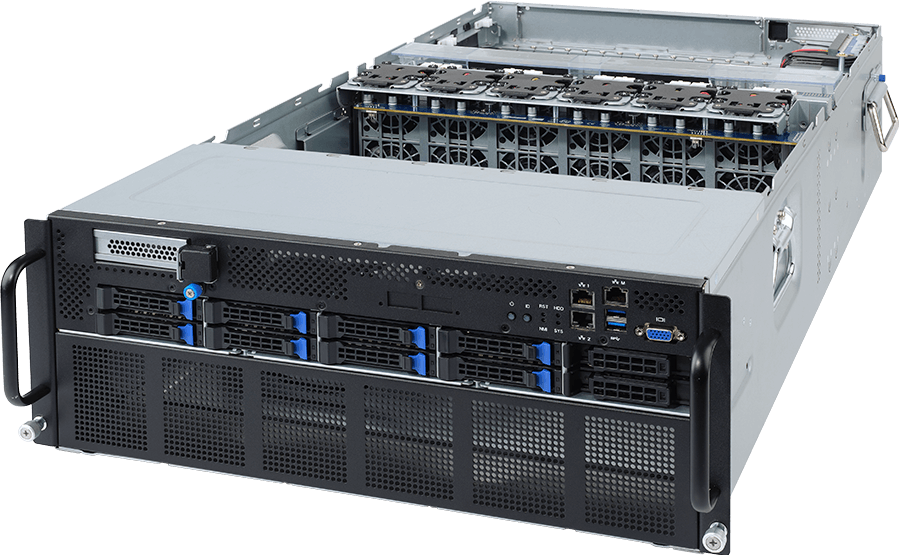

- G482-Z52
- Up to 8 x Dual slot Gen4 GPGPU cards
- AMD EPYC™ 7002 Series processors
- Dual processor, 7nm technology
- 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
- 2 x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
- 1 x Dedicated management port
- 8 x 2.5" SATA hot-swappable bays
- 8 x FHFL PCIe Gen4 x16 slots for GPUs
- 1 x LP PCIe Gen4 x16 slot
- 2+1 2200W 80 PLUS Platinum redundant power supplies
* I materiali qui forniti sono solo di riferimento. GIGABYTE si riserva il diritto di modificare o rivedere il contenuto in qualsiasi momento senza preavviso.
* Le prestazioni pubblicate si basano su valori massimi teorici fornite dai rispettivi fornitori di chipset o organizzazione che hanno definito le specifiche di interfaccia. Le prestazioni effettive possono variare in base alla configurazione del sistema.
* Tutti i marchi ei loghi sono di proprietà dei rispettivi titolari.
* A causa dell'architettura standard del PC, una certa quantità di memoria è riservata al sistema e quindi la capacità di memoria reale è inferiore a quella dichiarata.
* Le prestazioni pubblicate si basano su valori massimi teorici fornite dai rispettivi fornitori di chipset o organizzazione che hanno definito le specifiche di interfaccia. Le prestazioni effettive possono variare in base alla configurazione del sistema.
* Tutti i marchi ei loghi sono di proprietà dei rispettivi titolari.
* A causa dell'architettura standard del PC, una certa quantità di memoria è riservata al sistema e quindi la capacità di memoria reale è inferiore a quella dichiarata.
SPECIFICATIONS
Dimensions (WxHxD, mm)
4U
448 x 176 x 880
448 x 176 x 880
Motherboard
MZ52-G40
CPU
AMD EPYC™ 7002 Series processors
Dual processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Fully supports 280W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Compatible with AMD EPYC™ 7001 Series processors (Single processor only)
Dual processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Fully supports 280W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Compatible with AMD EPYC™ 7001 Series processors (Single processor only)
Socket
2 x LGA 4094
Socket SP3
Socket SP3
Chipset
System on Chip
Memory
32 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/2933 MHz
Note: Follow BIOS setting and memory QVL if running 3200 Mhz with 2DPC
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/2933 MHz
Note: Follow BIOS setting and memory QVL if running 3200 Mhz with 2DPC
LAN
Front side:
2 x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
NCSI function supported
1 x 10/100/1000 management LAN
2 x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
NCSI function supported
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage
Front side:
8 x 2.5" SATA hot-swappable bays, from CPU_0
SATA devices supported only
8 x 2.5" SATA hot-swappable bays, from CPU_0
SATA devices supported only
SAS
N/A
RAID
N/A
Expansion Slots
4 x PCIe x16 (Gen4 x16) FHFL slots, from CPU_0, for GPUs
4 x PCIe x16 (Gen4 x16) FHFL slots, from CPU_1, for GPUs
1 x PCIe x16 (Gen4 x16) low-profile slot on rear side, from CPU_1*
*SAS cards not supported with internal cable due to cable routing limitation
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
- Limited to PCIe Gen3 when using AMD Naples CPU
4 x PCIe x16 (Gen4 x16) FHFL slots, from CPU_1, for GPUs
1 x PCIe x16 (Gen4 x16) low-profile slot on rear side, from CPU_1*
*SAS cards not supported with internal cable due to cable routing limitation
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
- Limited to PCIe Gen3 when using AMD Naples CPU
Internal I/O
1 x TPM header
1 x Front panel header
1 x Front panel header
Front I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD access LED
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD access LED
Rear I/O
N/A
Backplane Board
Speed and bandwidth:
SATA 6Gb/s
SATA 6Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
2+1 2200W 80 PLUS Platinum redundant power supplies
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Input:
- 240Vdc/ 12.6A
DC Output:
- Max 1200W/ 100-127V~
+ 12.12V/ 95.6A
+ 12Vsb/ 3.5A
- Max 2200W/ 200-240V~ or 240Vdc Input
+ 12.12V/ 178.1A
+ 12Vsb/ 3.5A
Note: The system power supply requires C19 power cord
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Input:
- 240Vdc/ 12.6A
DC Output:
- Max 1200W/ 100-127V~
+ 12.12V/ 95.6A
+ 12Vsb/ 3.5A
- Max 2200W/ 200-240V~ or 240Vdc Input
+ 12.12V/ 178.1A
+ 12Vsb/ 3.5A
Note: The system power supply requires C19 power cord
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage/Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP4 (x64) or later
SUSE Linux Enterprise Server 15 SP1 (x64) or later
Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.1.0 or later
Windows Server 2019
Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP4 (x64) or later
SUSE Linux Enterprise Server 15 SP1 (x64) or later
Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.1.0 or later
System Fans
12 x 60x60x38mm (21,700rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 30.2 kg
Packaging Dimensions
1109 x 609 x 606 mm
Packaging Content
1 x G482-Z52
2 x CPU fansinks
1 x L-shape Rail kit
2 x CPU fansinks
1 x L-shape Rail kit
Part Numbers
- Barebone package: 6NG482Z52MR-00-1*
- Motherboard: 9MZ52G40NR-00
- L-shape Rail kit: 25HB2-A96100-K0R
- CPU fansink: 12SF2-01A067-00R
- Fan module kit: 6NG481HAASR-00-100
- Power supply: 25EP0-222003-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 250V/15A (US): 25CP1-018300-Q0R
- RMA packaging: 6NG482Z52SR-RMA-A100
- Motherboard: 9MZ52G40NR-00
- L-shape Rail kit: 25HB2-A96100-K0R
- CPU fansink: 12SF2-01A067-00R
- Fan module kit: 6NG481HAASR-00-100
- Power supply: 25EP0-222003-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 250V/15A (US): 25CP1-018300-Q0R
- RMA packaging: 6NG482Z52SR-RMA-A100
