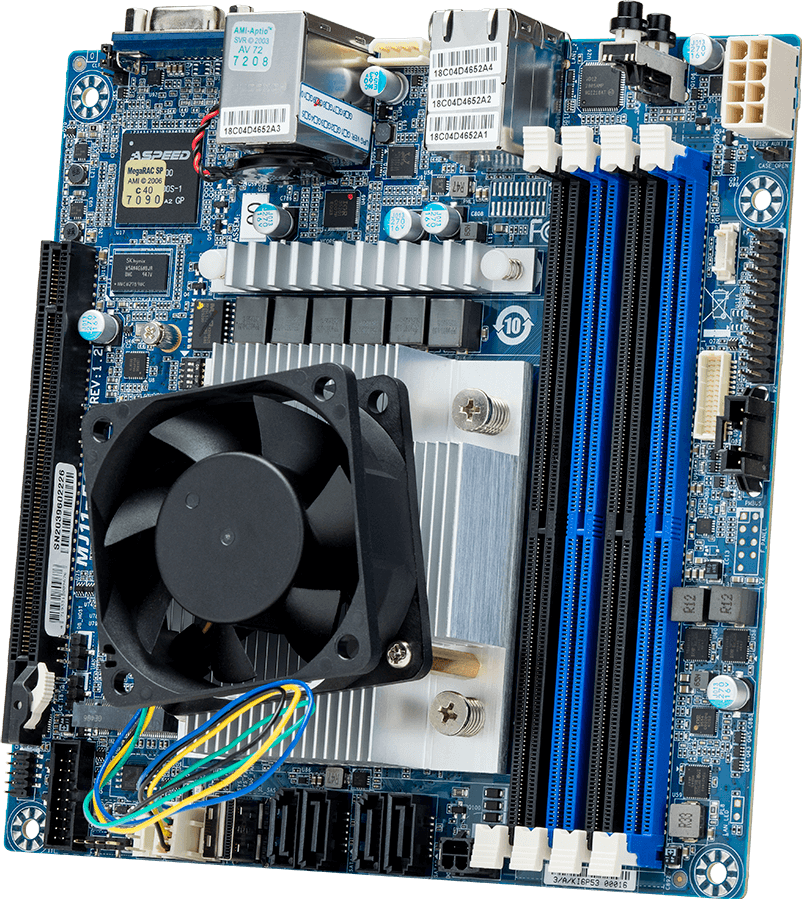

MJ11-EC0

Motherboard - AMD EPYC™ Embedded 3151 - Mini-ITX UP
  • Single AMD EPYC™ Embedded 3151
  • Dual Channel RDIMM/UDIMM DDR4 , 4 x DIMMs
  • 2 x 1Gb/s LAN ports via Intel® I210-AT
  • 1 x SlimSAS connector for 4 x SATA 6Gb/s
  • 4 x SATA 6Gb/s ports
  • 1 x M.2 slot with PCIe Gen3 x4 interface
  • 1 x PCIe Gen3 x16 expansion slot
Get a Quote
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Form Factor
Mini-ITX
170W x 170D mm
CPU
AMD EPYC™ Embedded 3151
- 4 cores, 8 threads
- Processor Frequency: 2.7GHz-2.9GHz
- 2MB L2 Cache, 16MB L3 Cache
Single processor, 7nm, TDP 45W
Socket
SP4r2
Chipset
System on Chip
Memory
4 x DIMM slots
DDR4 memory supported only
Dual Channel memory architecture
ECC UDIMM/RDIMM up to 128GB supported
Memory speed: Up to 2666 MT/s
LAN
2 x 1Gb/s LAN ports (Intel® I210-AT)
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
N/A
Storage Interface
1 x SlimSAS connector (PCIe Gen3 x4 or SATA)
4 x SATA 6Gb/s ports
RAID
N/A
Expansion Slots
1 x PCIe x16 (Gen3 x16) slot

1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports 2280 cards
Internal I/O
1 x 2x4-pin 12V power connector
1 x 2x2-pin 5Vsb/PSON power connector
1 x CPU fan header
2 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x M.2 slot
1 x SlimSAS connector
4 x SATA connectors
1 x Front panel header
1 x COM header
1 x PMBUS connector
1 x IPMB connector
Rear I/O
2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
TPM
Onboard TPM 2.0 INFINEON SLB9665
OS Supported
Red Hat Enterprise Linux 6.10
Red Hat Enterprise Linux 7.6

SUSE Linux Enterprise Server 12 SP3
SUSE Linux Enterprise Server 15

Ubuntu 17.10.1
Ubuntu 18.04.1 LTS

VMware ESXi 7.0b

Windows Server 2016
Windows Server 2019
Board Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • JAVA Based Serial Over LAN
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
PSU Connectors
1 x 2x4-pin 12V power connector
1 x 2x2-pin 5Vsb/PSON power connector (proprietary design)
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
N/A
Bulk Packaging Content
10 x MJ11-EC0
10 x I/O shields

Carton dimensions: 476 x 430 x 233 mm
MOQ: 10 PCS
Reference Numbers
Bulk: 9MJ11EC0NR-00-12*

Part Numbers:

- I/O shield: 12AIO-MJ11E0-00R
- SATA 6Gb/s cable (500mm): 25CF4-500541-K1R
- Power cable: 25CRI-450000-S9R
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
