In Vehicle Telematics Controller and IIOT Gateway

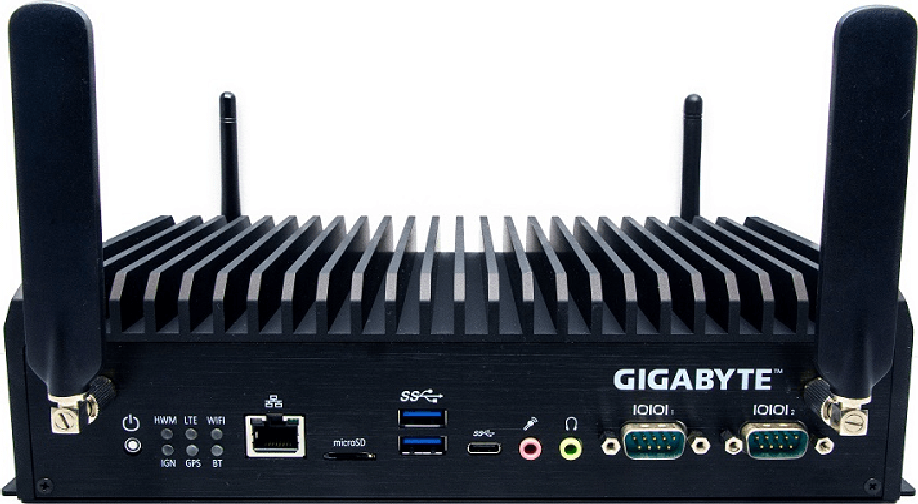

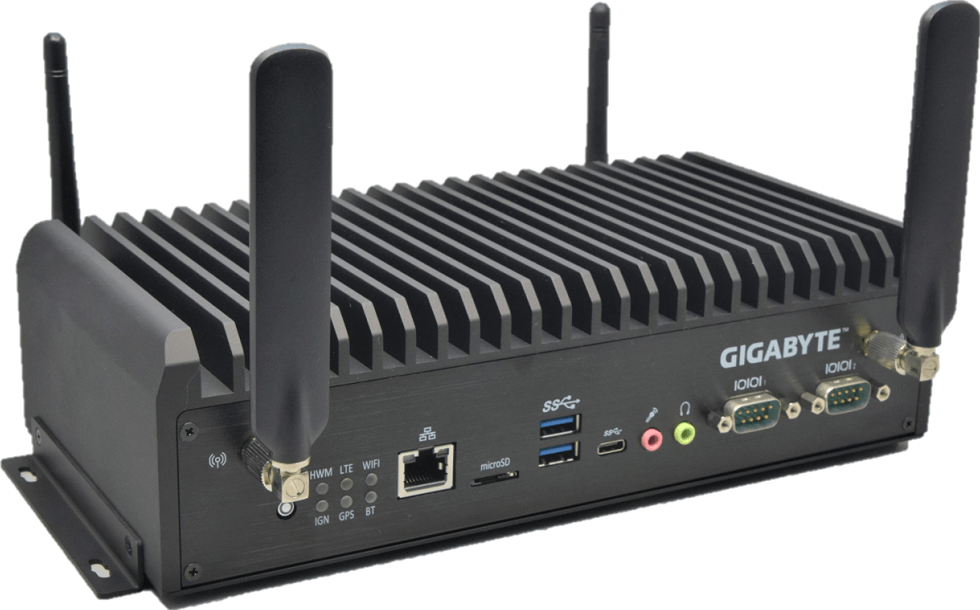

TBOX-100 is an ARM-based heterogeneous multicore computing platform for Industrial level usage. Supporting Android / Linux OS, highly integrating telematics technology with comprehensive network communication interface.
TBOX-100 is the best solution for the Internet of Vehicles (V2X), telematics control unit (ECU) and IoT Gateway, to offer a reliable embedded system for vehicle, railway and vessels or stations and other infrastructures.

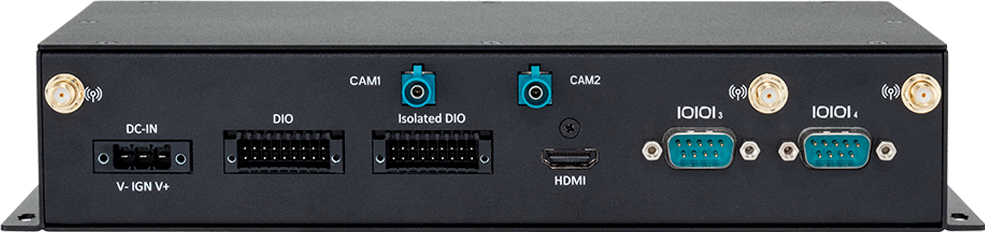

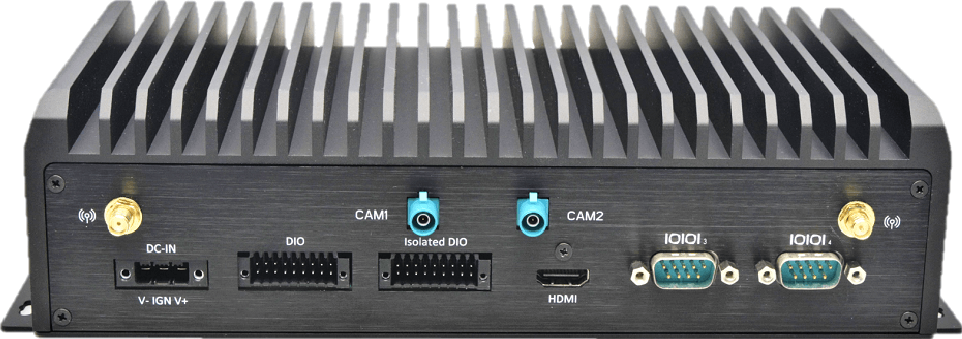

TBOX-100 can be sufficiently connected to various in-vehicle peripheral equipment. For example, CAN bus can real-time monitor and collect all data surrounding the vehicle, also receive sensor data returned from radar, ultrasonic…etc. The isolated digital I/O ports accept commands while you push buttons and switches in the vehicle and transfer these commands to the actuator and indicator lights around the car. In addition, the Ethernet ports can not only be used in local area networks, but also can adopt the data from Lidar sensor. Sustained WIFI, Bluetooth 5.0, electronic compass and GNSS/GPS, and built-in with 3-axis gyroscope, 3-axis accelerometer, atmospheric pressure sensor and digital temperature sensors on boards, TBOX-100 will precisely monitor driving dynamic and environmental status at anytime.
TBOX-100 provides excellent performance that can support a wide range of operating voltage from 9 to 36V, even a higher inrush current. The smart management system set in TBOX-100 can automatically monitor the input voltage, operating temperature at any time. The ignition delay will secure the system to have a superior stability and reliability during the whole operation for the system platform. Equipped with common industrial level interfaces, outlined with a firm metal appearance which resists impacts and leaps. It is in compliance with common industrial certifications such as CE/FCC. Even in the harsh environment, TBOX-100 still functions firmly and consistently.
