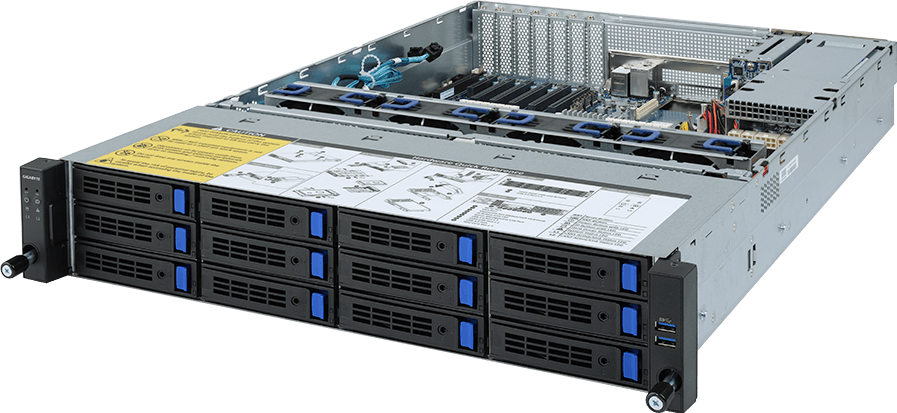

Rack Server - AMD EPYC™ 7003/7002 - 2U UP 12+2-Bay SATA/SAS
  • Single AMD EPYC™ 7003/7002 Series Processors (with AMD 3D V-Cache™ Technology)
  • 8-Channel DDR4 RDIMM/LRDIMM, 16 x DIMMs
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 4 x 3.5"/2.5" SATA/SAS hot-swappable bays
  • 8 x 3.5"/2.5" SATA/SAS hot-swappable bays (optional)
  • 2 x 2.5" SATA/SAS hot-swappable bays on the rear side
  • 2 x M.2 slots with PCIe Gen3 x4 interface
  • 4 x LP PCIe Gen4 x16 and x8 slots
  • 2 x LP PCIe Gen3 x16 and x8 slots
  • 1 x OCP 2.0 Gen3 x16 mezzanine slot
  • Dual 800W 80 PLUS Platinum redundant power supply (-A00)
  • Dual 850W 80 PLUS Titanium redundant power supply (-AT0)
Get a Quote
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)
2U
438 x 87.5 x 660
Motherboard
CPU
AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7003 Series Processors with AMD 3D V-Cache™ Technology
AMD EPYC™ 7002 Series Processors
Single processor, 7nm technology
Up to 64 cores, 128 threads
cTDP up to 280W
Socket
1 x LGA 4094
Socket SP3
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200*/2933 MT/s

*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
LAN
Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
- 1 x VGA port
Storage
Front side:
4 x 3.5"/2.5" SATA/SAS hot-swappable bays
8 x 3.5"/2.5" SATA/SAS hot-swappable bays, from optional SAS HBA

Rear side:
2 x 2.5" SATA/SAS hot-swappable bays

Front side default configuration supports:
4 x SATA drives
8 x SAS drives via optional SAS HBA

SAS card is required for SAS devices support

4 x SATA on the front side and 2 x SATA on the rear side are available in default setting.
SAS
Depends on SAS add-in cards
RAID
N/A
Expansion Slots
Slot_6: PCIe x16 (Gen4 x16) low-profile slot
Slot_5: PCIe x16 (Gen4 x8) low-profile slot
Slot_4: PCIe x16 (Gen4 x16) low-profile slot
Slot_3: PCIe x16 (Gen4 x16) low-profile slot
Slot_2: PCIe x8 (Gen3 x0 or x8) low-profile slot
Slot_1: PCIe x16 (Gen3 x16 or x8) low-profile slot, shared with slot_2

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4; Type2 P5 with NCSI supported)

2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Support 2242/2260/2280 cards
Internal I/O
1 x TPM header
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
3 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
Front side - CBP20C4: SATA 6Gb/s or SAS 12Gb/s
Rear side - CBP2021: SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
Power Supply
Dual 800W 80 PLUS Platinum Redundant power supply (-A00)

AC Input:
- 100-240V~/ 10-4A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 4.5A

DC Output:
- Max 800W
+12V/ 66A
+12Vsb/ 2.5A

Dual 850W 80 PLUS Titanium Redundant power supply (-AT0)

AC Input:
- 100-127V~/ 11A, 47-63Hz
- 200-240V~/ 5A, 47-63Hz

DC Input: (Only for China)
- 240Vdc/ 4A

DC Output:
- Max 850W
+12V/ 70.8A
+12Vsb/ 2.1A

Note: Select 1200W power supply if using 280W CPU with full loading configuration.
System Management
Aspeed® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility
Citrix Hypervisor 8.2.0 or later

Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later

SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later

Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
System Fans
4 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 16.8 kg
Packaging Dimensions
982 x 588 x 268 mm
Packaging Content
1 x R272-Z30
1 x CPU heatsink
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR272Z30MR-00-A*
- Motherboard: 9MZ32AR0NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20C4: 9CBP20C4NR-00
- Backplane board - CBP2021: 9CBP2021NR-00
- Fan module: 25ST2-883829-D0R
- Fan duct for 280W CPU: 25HA8-R27231-S5R
- Power supply (-A00): 25EP0-208004-L0S
- Power supply (-AT0): 25EP0-208503-D0S

Optional parts:

- 4 x U.2 kit: 6NR272Z3BSR-00
- Power cord 125V/15A (JP): 25CPA-018304-Q0R
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR272Z30SR-RMA-A100
