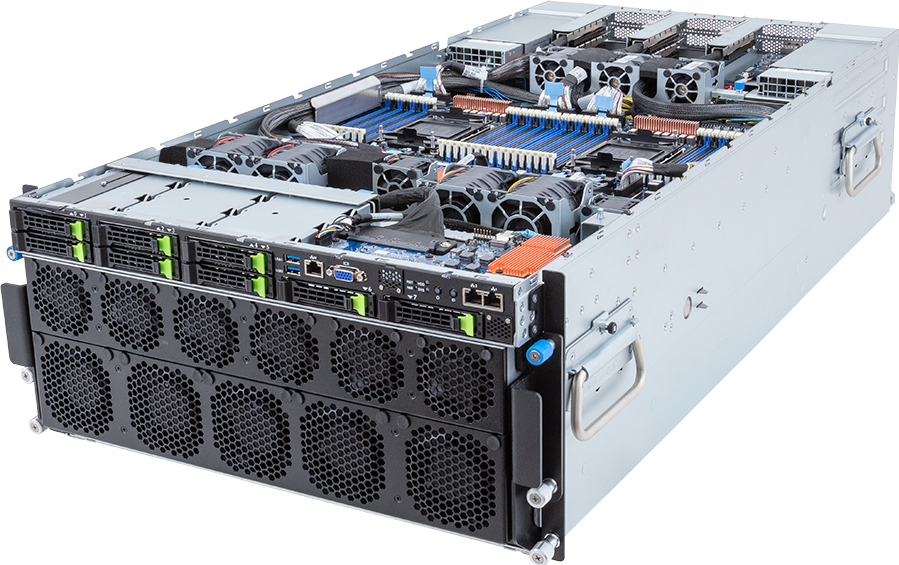

G593-SD0- AAX1
HPC/AI Server - 5th/4th Gen Intel® Xeon® Scalable - 5U DP NVIDIA HGX™ H100 8-GPU 4-Root Port
- NVIDIA-Certified Systems™ - Data Center Servers
- NVIDIA HGX™ H100 with 8 x SXM5 GPUs
- 900GB/s GPU-to-GPU bandwidth with NVIDIA® NVLink® and NVSwitch™
- Dual 5th/4th Gen Intel® Xeon® Scalable Processors
- Dual Intel® Xeon® CPU Max Series
- 8-Channel DDR5 RDIMM, 32 x DIMMs
- Dual ROM Architecture
- Compatible with NVIDIA® BlueField®-2 DPUs
- 2 x 10Gb/s LAN ports via Intel® X710-AT2
- 8 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
- 12 x LP PCIe Gen5 x16 slots
- 1 x LP PCIe Gen4 x16 slot
- 4+2 3000W 80 PLUS Titanium redundant power supplies
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
5U
447 x 219.7 x 945
447 x 219.7 x 945
Motherboard
MSB3-G40
CPU
5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Dual processor, TDP up to 350W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Dual processor, TDP up to 350W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 4677
Socket E
Socket E
Chipset
Intel® C741
Memory
32 x DIMM slots
DDR5 memory supported
8-Channel memory architecture
5th Gen Intel® Xeon®:
RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) [1]
4th Gen Intel® Xeon®:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel® Xeon® Max Series:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
[1] 5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.
DDR5 memory supported
8-Channel memory architecture
5th Gen Intel® Xeon®:
RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) [1]
4th Gen Intel® Xeon®:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel® Xeon® Max Series:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
[1] 5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.
LAN
Front:
2 x 10Gb/s LAN (1 x Intel® X710-AT2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Rear:
1 x 10/100/1000 Mbps Management LAN
[Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default.
2 x 10Gb/s LAN (1 x Intel® X710-AT2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Rear:
1 x 10/100/1000 Mbps Management LAN
[Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default.
Video
Integrated in Aspeed® AST2600
- 1 x VGA port
- 1 x VGA port
Storage
Front hot-swap:
8 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
- (NVMe from PEX89104)
[1] SAS card is required to support SAS drives.
8 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
- (NVMe from PEX89104)
[1] SAS card is required to support SAS drives.
SAS
Require SAS add-in cards
RAID
Intel® SATA RAID 0/1/10/5
Support optional RAID add-in cards
Support optional RAID add-in cards
PCIe Expansion Slots
NVIDIA HGX™ H100 with 8 x SXM5 GPUs
Extension Board CPBG044 x 2:
- 8 x LP x16 (Gen5 x16), from PEX89104
PCIe Cable x 5:
- 2 x LP x16 (Gen5 x16), from CPU_0
- 2 x LP x16 (Gen5 x16), from CPU_1
- 1 x LP x16 (Gen4 x16), from CPU_0
Extension Board CPBG044 x 2:
- 8 x LP x16 (Gen5 x16), from PEX89104
PCIe Cable x 5:
- 2 x LP x16 (Gen5 x16), from CPU_0
- 2 x LP x16 (Gen5 x16), from CPU_1
- 1 x LP x16 (Gen4 x16), from CPU_0
Front I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port (default port)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
1 x VGA port
2 x RJ45 ports
1 x MLAN port (default port)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
Rear I/O
1 x MLAN port
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
4+2 3000W 80 PLUS Titanium redundant power supplies [1]
AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 14A
DC Output:
- Max 1450W/ 115-127V~
+54V/ 26.6A
+12Vsb/ 3A
- Max 2900W/ 200-220V~
+54V/ 53.4A
+12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 14A
DC Output:
- Max 1450W/ 115-127V~
+54V/ 26.6A
+12Vsb/ 3A
- Max 2900W/ 200-220V~
+54V/ 53.4A
+12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
Additional certifications:
Red Hat Enterprise Linux 8.6 or later (x86_64)
Windows Server 2022 (x64)
Additional certifications:
Red Hat Enterprise Linux 8.6 or later (x86_64)
Windows Server 2022 (x64)
System Fans
Motherboard:
2 x 40x40x28mm (25,000rpm)
4 x 60x60x56mm (24,000rpm)
PCIe slots:
4 x 40x40x28mm (25,000rpm)
3 x 40x40x56mm (29,700rpm)
GPU tray:
6 x 60x60x76mm (21,700rpm)
11 x 80x80x80mm (17,000rpm)
2 x 40x40x28mm (25,000rpm)
4 x 60x60x56mm (24,000rpm)
PCIe slots:
4 x 40x40x28mm (25,000rpm)
3 x 40x40x56mm (29,700rpm)
GPU tray:
6 x 60x60x76mm (21,700rpm)
11 x 80x80x80mm (17,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1200 x 890 x 700 mm
Packaging Content
1 x G593-SD0-AAX1
2 x CPU heatsinks
6 x Carriers
1 x L-shape Rail kit
2 x CPU heatsinks
6 x Carriers
1 x L-shape Rail kit
Part Numbers
- Barebone w/ NVIDIA module (5/4th Gen): 6NG593SD0DR000ABX1*
- Barebone w/ NVIDIA module (4th Gen): 6NG593SD0DR000AAX1*
- Motherboard: 9MSB3G40NR-000*
- L-shape Rail kit: 25HB2-A96102-K0R
- CPU heatsink: 25ST1-24320H-M1R
- Backplane board - CBPG680: 9CBPG680NR-00*
- Fan module 40x40x28mm: 25ST2-44282D-D0R
- Fan module 40x40x56mm: 25ST2-40562G-A0R
- Fan module 60x60x56mm: 25ST2-665620-S1R
- Fan module 60x60x76mm: 25ST2-667630-S1R
- Fan module 80x80x80mm: 25ST2-888032-S1R
- Fan module 80x80x80mm: 25ST2-808037-S1R
- I/O board - CDB66: 9CDB66NR-00*
- PCIe extension board - CPBG044: 9CPBG044NR-00*
- PCIe switch board - CPBG902: 9CPBG902NR-00*
- G-SCM board - CDCG120: 9CDCG120UR-00*
- Power supply: 25EP0-23000J-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NG593SD0SR-RMA-A100
- Barebone w/ NVIDIA module (4th Gen): 6NG593SD0DR000AAX1*
- Motherboard: 9MSB3G40NR-000*
- L-shape Rail kit: 25HB2-A96102-K0R
- CPU heatsink: 25ST1-24320H-M1R
- Backplane board - CBPG680: 9CBPG680NR-00*
- Fan module 40x40x28mm: 25ST2-44282D-D0R
- Fan module 40x40x56mm: 25ST2-40562G-A0R
- Fan module 60x60x56mm: 25ST2-665620-S1R
- Fan module 60x60x76mm: 25ST2-667630-S1R
- Fan module 80x80x80mm: 25ST2-888032-S1R
- Fan module 80x80x80mm: 25ST2-808037-S1R
- I/O board - CDB66: 9CDB66NR-00*
- PCIe extension board - CPBG044: 9CPBG044NR-00*
- PCIe switch board - CPBG902: 9CPBG902NR-00*
- G-SCM board - CDCG120: 9CDCG120UR-00*
- Power supply: 25EP0-23000J-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NG593SD0SR-RMA-A100
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Illesztőprogram
BIOS
Segédprogramok
Firmware
OS
- All
- All
- Windows Server 2022
- Windows Server 2019
- Linux
Chipset
Chipset
Version
Size
Dátum
Intel® Chipset Driver
Version : 10.1.19485.8386
3.81 MB
Jan 04, 2024
OS: Windows Server 2019,Windows Server 2022
LAN
LAN
Version
Size
Dátum
Intel® LAN Driver
Version : 28.2.1
776.69 MB
Jan 04, 2024
OS: Windows Server 2019,Windows Server 2022
RAID
RAID
Version
Size
Dátum
Intel® VROC
Intel® SATA RAID and Utility
Intel® SATA RAID and Utility
Version : 8.5.0.1593
99.21 MB
Jan 04, 2024
OS: Windows Server 2019,Windows Server 2022
Utility
BIOS
Description
Version
Size
Dátum
Include AMI SA50248 (CWE-119), and multiple feature updates.
Version : R12
29.56 MB
May 15, 2024
Include INTEL-TA-01036 (CVE-2023-45745/CVE-2023-47855); AMI SA50232 (CVE-2023-45236/CVE-2023-45237), and multiple feature updates.
Version : R09
29.63 MB
Apr 12, 2024
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
Segédprogramok
Description
Version
Size
Dátum
GSM CLI
Version : 2.1.77
147.89 MB
Sep 27, 2024
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
Használati Utasítás
Description
Version
Size
Dátum
User Guide - GIGABYTE Management Console (AMI AST2600)
Version : 1.0
11.72 MB
Aug 12, 2024
English
Description
Version
Size
Dátum
OS Support List
Version : R12
0.22 MB
Jul 15, 2024
4th Generation Intel® Xeon® Scalable Processors
5th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
5th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
RESOURCES
Articles
Video
News
Media Review
Others
Back to G593-SD0-AAX1
