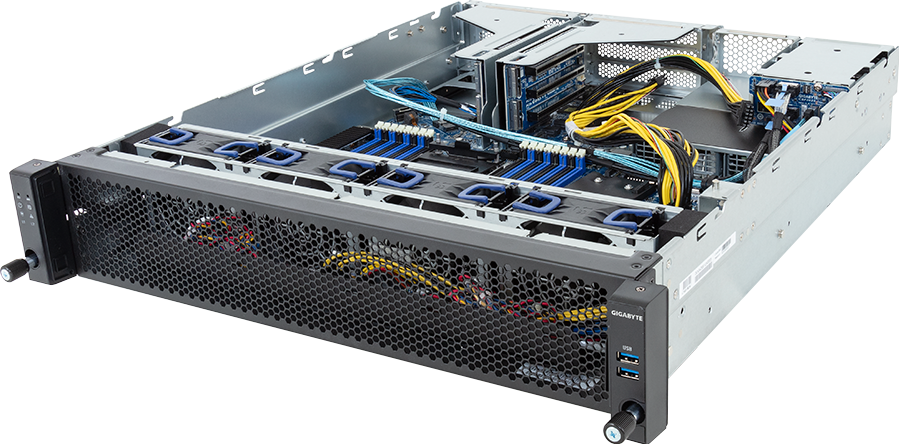

E264-S30-AAJ1

2U
438 x 87.5 x 520

MS34-DC0

Intel^® Xeon^® 6 Processors
- Intel^® Xeon^® 6700-Series Processors
- Intel^® Xeon^® 6500-Series Processors

Single processor, TDP up to 350W

1 x LGA 4710
Socket E2

System on Chip

16 x DIMM slots
DDR5 memory supported
8-Channel memory per processor
MRDIMM supported ^[1]
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MRDIMM: Up to 8000 MT/s

^[1] MRDIMMs are only supported with Intel^® Xeon^® 6 Processors with P-cores and in a 1DPC configuration.

Rear:
1 x 1Gb/s LAN (1 x Intel^® I210-AT)
- Supports NCSI function

1 x 10/100/1000 Mbps Management LAN

Integrated in ASPEED^® AST2600
- 1 x Mini-DP

Rear hot-swap:
2 x 2.5" Gen5 NVMe/SATA/SAS-4 ^[1]

Internal M.2:
1 x M.2 (2280/22110), PCIe Gen5 x2
1 x M.2 (2280/22110), PCIe Gen5 x2, shared with SATA <sup>[2]

[1]</sup> SAS card is required to support SAS drives.

^[2] To enable the M.2 slot, please adjust the switch according to the manual for proper support.

Require SAS add-in cards

Require RAID add-in cards
Onboard VROC key header

Riser Card CRS201C:
- 1 x FHFL x16 (Gen5 x16), for GPUs

Riser Card CRS201D:
- 1 x FHFL x16 (Gen5 x16), for GPUs

2 x OCP NIC 3.0 (Gen5 x16)
- Support NCSI function

2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs (1 x LED disabled)
1 x Storage activity LED
1 x System status LED

2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
1 x RJ45 port
1 x MLAN port
1 x ID button with LED

Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

1 x PRoT connector (only enabled on RoT SKU)

1+1 2000W 80 PLUS Titanium redundant power supplies

AC Input:
- 100-127V~/ 13A, 50-60Hz
- 200-220V~/ 10A, 50-60Hz
- 220-240V~/ 10A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1800W/ 200-220V~
+12.2V/ 148A
+12.2Vsb/ 3A
- Max 2000W/ 220-240V~ or 240Vdc Input
+12.2V/ 164A
+12.2Vsb/ 3A

^[Note] GIGABYTE provides PSUs with various energy efficiency ratings and power outputs. Please contact our sales representatives to determine the best configuration for your system.

ASPEED^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced power capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

Please refer to OS compatibility table in support page

4 x 80x80x38mm (18,300rpm)

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

732 x 588 x 285 mm

1 x E264-S30-AAJ1
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
1 x GPU power cable (12VHPWR, 350mm)
1 x GPU power cable (12VHPWR, 550mm)
2 x Carriers

^[Note] Rail kit not included. Please refer to optional parts for compatible rail kit.

- Barebone package: 6NE264S30DR000AAJ1*
- Motherboard: 9MS34DC0UR-000*
- CPU heatsink: 25ST1-4Z3200-S7R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP2001: 9CFP2001NR-00*
- Backplane board - CBP2025: 9CBP2025NR-00*
- Fan module: 25ST2-88382N-S1R
- Riser card - CRS201C: 9CRS201CNR-00*
- Riser card - CRS201D: 9CRS201DNR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (12VHPWR, 350mm): 25CRI-350006-Y4R
- GPU power cable (12VHPWR, 550mm): 25CRI-550107-Y4R
- Power supply: 25EP0-22000J-G1S

Optional parts:

- 2-Section Rail kit (385-480mm): 25HB2-3A0204-K0R (MOQ: 500)
- 2-Section Rail kit (660-840mm): 25HB2-3A0203-K0R
