MZ33-CP1

Rev. 3.x

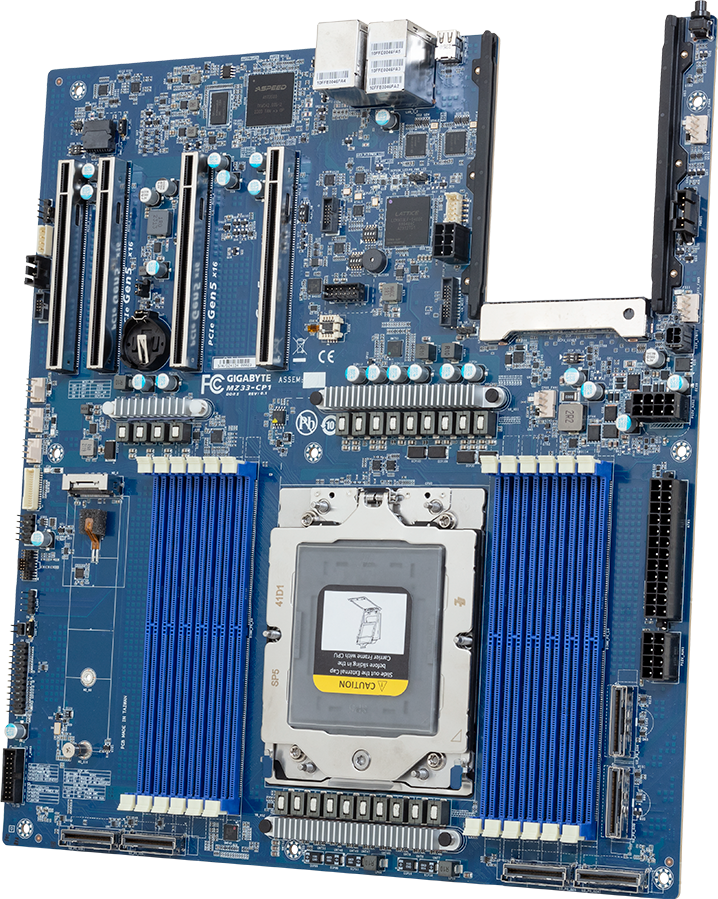

Motherboard - AMD EPYC™ 9005/9004 - E-ATX UP

Single AMD EPYC™ 9005/9004 Series Processors
12-Channel DDR5 RDIMM, 12 x DIMMs
2 x 1Gb/s LAN ports via Intel^® I210-AT
4 x MCIO 8i connectors with PCIe Gen5 x8 interface
2 x MCIO 8i connectors with PCIe Gen4 x8 or SATA interface
1 x M.2 slot with PCIe Gen3 x4 interface
4 x PCIe Gen5/Gen4 x16 expansion slots
1 x OCP NIC 3.0 PCIe Gen5 x16 slot

快速達交產品更多快速達交產品更多 MZ33 系列快速達交產品 MZ33-AR0

Get a Quote

加入比較表

Get a Quote

* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。

SPECIFICATIONS

Form Factor (WxD, mm)

E-ATX
304.8 x 330.2

Processor Supported

AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors

Single processor, cTDP up to 500W

Socket

1 x LGA 6096
Socket SP5

Chipset Description

System on Chip

Memory Type

12 x DIMM slots
DDR5 memory supported
12-Channel memory architecture

AMD EPYC™ 9005:
RDIMM: Up to 6000 MT/s

AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s

Integrated Network

2 x 1Gb/s LAN (2 x Intel^® I210-AT)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Integrated Video Controller

Integrated in Aspeed^® AST2600
- 1 x Mini-DP

Integrated Audio Controller

N/A

Storage Interface

MCIO:
4 x MCIO 8i for 8 x Gen5 NVMe
2 x MCIO 8i for 4 x Gen4 NVMe or 16 x SATA

M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4

Support RAID Function

N/A

PCIe Expansion Slots

Slot_6: PCIe x16 (Gen5 x16)
Slot_4: PCIe x16 (Gen5 x16)
Slot_2: PCIe x16 (Gen5 x16)
Slot_1: PCIe x16 (Gen4 x16)

1 x OCP NIC 3.0 (Gen5 x16)
- Supports NCSI function

4 x MCIO 8i (Gen5 x8)^[1]
2 x MCIO 8i (Gen4 x8 or SATA)^[2]

^[1]Please refer to the optional parts for qualified cables to ensure Gen5 signal quality.

^[2]The connector supports SATA by default. To enable the other option, please refer to the manual and adjust the settings in the BIOS.

On-Board Connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
1 x 4-pin 12V standby power connector
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x USB 2.0 x2 header
1 x M.2 slot
6 x MCIO 8i connectors
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header

Rear I/O Connectors

2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED

Security Modules

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

OS Driver Supported

Please refer to OS compatibility table in support page

Server Management

Aspeed^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

PSU Connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
1 x 4-pin 12V standby power connector

Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Bundle

1 x MZ33-CP1
1 x I/O shield
1 x Quick start guide
1 x MCIO 8i to 8 x SATA 6Gb/s cable (600mm)

Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton

Bulk Packaging Content

10 x MZ33-CP1
10 x I/O shields

Carton dimensions: 600 x 473 x 517 mm

Ordering Information

Retail: 9MZ33CP1MR-000-3*
Bulk: 9MZ33CP1NR-000-3*

Part Numbers:

- I/O shield: 12AIO-MS33CP-00R
- MCIO 8i to 8 x SATA cable (600mm): 25CF9-600721-M0R

Optional parts:

- MCIO 8i to 2 x MCIO 4i cable (550mm): 25CF9-550700-A4R
