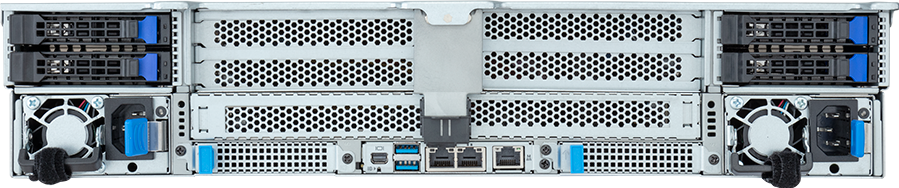

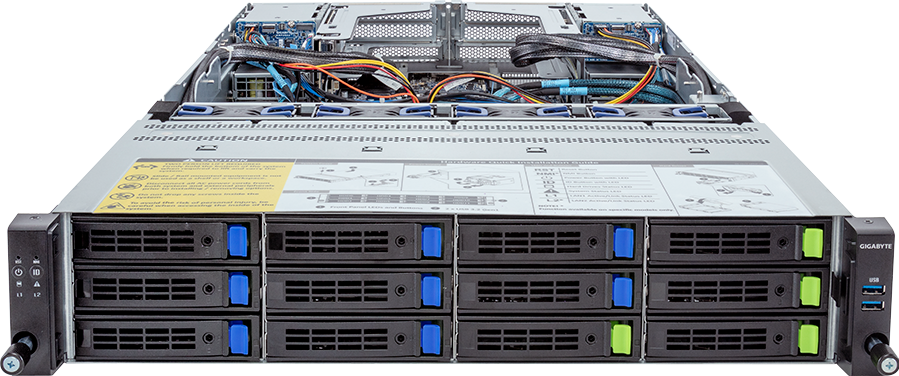

Rack Server - AMD EPYC™ 9004 - 2U DP 12+4-Bay Gen4 NVMe/SATA/SAS (4 x NVMe) Platinum
- Dual AMD EPYC™ 9004 Series Processors
- 12-Channel DDR5 RDIMM, 24 x DIMMs
- Dual ROM Architecture
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 4 x 3.5"/2.5" Gen4 NVMe/SATA/SAS hot-swap bays
- 8 x 3.5"/2.5" SATA/SAS hot-swap bays
- 4 x 2.5" SATA/SAS hot-swap bays on the rear side
- 3 x M.2 slots with PCIe Gen3 x4 and x2 interface
- 4 x FHHL PCIe Gen5 x16 slots
- 2 x OCP NIC 3.0 PCIe Gen5 x16 slots
- Compatible with SupremeRAID™ by Graid Technology
- Dual 1600W 80 PLUS Platinum redundant power supply
快速達交產品
更多快速達交產品
更多 R283 系列快速達交產品
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
438 x 87 x 815
438 x 87 x 815
Motherboard
MZ93-FS0
CPU
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 300W
- EPYC 9654 cTDP up to 400W
[Note] cTDP supported up to 400W under limited thermal conditions. Please contact our sales representatives for more details.
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 300W
- EPYC 9654 cTDP up to 400W
[Note] cTDP supported up to 400W under limited thermal conditions. Please contact our sales representatives for more details.
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 6096
Socket SP5
Socket SP5
Chipset
System on Chip
Memory
24 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
RDIMM: Up to 4800 MT/s
DDR5 memory supported
12-Channel memory architecture
RDIMM: Up to 4800 MT/s
LAN
Rear (G-SCM board - CDCR114):
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x Mini-DP
- 1 x Mini-DP
Storage
Front hot-swap:
4 x 3.5"/2.5" Gen4 NVMe/SATA/SAS [1]
8 x 3.5"/2.5" SATA/SAS [1]
- (NVMe from CPU_1)
- (SATA from CPU_0)
Rear hot-swap:
4 x 2.5" SATA/SAS [1]
- (SATA from CPU_0)
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
1 x M.2 (2280/22110), PCIe Gen3 x2, from CPU_1
[1] SAS card is required to support SAS drives.
4 x 3.5"/2.5" Gen4 NVMe/SATA/SAS [1]
8 x 3.5"/2.5" SATA/SAS [1]
- (NVMe from CPU_1)
- (SATA from CPU_0)
Rear hot-swap:
4 x 2.5" SATA/SAS [1]
- (SATA from CPU_0)
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
1 x M.2 (2280/22110), PCIe Gen3 x2, from CPU_1
[1] SAS card is required to support SAS drives.
SAS
Require SAS add-in cards
RAID
Require RAID add-in cards
Optional compatible RAID Cards:
NVMe RAID Cards with SupremeRAID™ by Graid Technology
RAID Card models: SR-1001-ED4
Support RAID 0/1/5/6/10
Optional compatible RAID Cards:
NVMe RAID Cards with SupremeRAID™ by Graid Technology
RAID Card models: SR-1001-ED4
Support RAID 0/1/5/6/10
PCIe Expansion Slots
Riser Card CRS101T:
- 1 x FHHL x16 (Gen5 x16), from CPU_0
Riser Card CRS101Q:
- 1 x FHHL x16 (Gen5 x16), from CPU_1
Riser Card CRS202M:
- 1 x FHHL x16 (Gen5 x16), from CPU_0
- 1 x PCIe x16, disabled
Riser Card CRS202N:
- 1 x FHHL x16 (Gen5 x16), from CPU_1
- 1 x PCIe x16, disabled
1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Supports NCSI function
1 x OCP NIC 3.0 (Gen5 x16), from CPU_1
- Supports NCSI function
- 1 x FHHL x16 (Gen5 x16), from CPU_0
Riser Card CRS101Q:
- 1 x FHHL x16 (Gen5 x16), from CPU_1
Riser Card CRS202M:
- 1 x FHHL x16 (Gen5 x16), from CPU_0
- 1 x PCIe x16, disabled
Riser Card CRS202N:
- 1 x FHHL x16 (Gen5 x16), from CPU_1
- 1 x PCIe x16, disabled
1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Supports NCSI function
1 x OCP NIC 3.0 (Gen5 x16), from CPU_1
- Supports NCSI function
Front I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
G-SCM board - CDCR114:
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID LED
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID LED
Backplane Board
Speed and bandwidth:
Front side - CBP20C5: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
Rear side - CBP2022: SATA 6Gb/s or SAS 12Gb/s
Front side - CBP20C5: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
Rear side - CBP2022: SATA 6Gb/s or SAS 12Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
Dual 1600W 80 PLUS Platinum redundant power supply
AC Input:
- 100-120V~/ 12A, 50/60Hz
- 200-240V~/ 10A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-120V~
+12V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12V/ 133A
+12Vsb/ 2.5A
[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
AC Input:
- 100-120V~/ 12A, 50/60Hz
- 200-240V~/ 10A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-120V~
+12V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12V/ 133A
+12Vsb/ 2.5A
[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
Additional certifications:
Windows Server 2022 (x64)
Additional certifications:
Windows Server 2022 (x64)
System Fans
4 x 80x80x38mm (18,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1077 x 679 x 300 mm
Packaging Content
1 x R283-Z90-AAD2
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x 2-Section Rail kit
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x 2-Section Rail kit
Part Numbers
- Barebone package (EPYC 9005/9004): 6NR283Z90DR000ABD2*
- Barebone package (EPYC 9004): 6NR283Z90DR000AAD2*
- Motherboard: 9MZ93FS0UR-000*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-15320G-A0R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP2001: 9CFP2001NR-00*
- Backplane board - CBP20C5: 9CBP20C5NR-00*
- Backplane board - CBP2022: 9CBP2022NR-00*
- Fan module: 25ST2-88382T-S1R
- Riser card - CRS101Q: 9CRS101QNR-00*
- Riser card - CRS101T: 9CRS101TNR-00*
- Riser card - CRS202M: 9CRS202MNR-00*
- Riser card - CRS202N: 9CRS202NNR-00*
- G-SCM board - CDCR114: 9CDCR114NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-21600C-L0S
Optional parts:
- RAID card (SR-1001-ED4): 25FC1-SR1000-AFS
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR283Z90SR-RMA-A100
- Barebone package (EPYC 9004): 6NR283Z90DR000AAD2*
- Motherboard: 9MZ93FS0UR-000*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-15320G-A0R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP2001: 9CFP2001NR-00*
- Backplane board - CBP20C5: 9CBP20C5NR-00*
- Backplane board - CBP2022: 9CBP2022NR-00*
- Fan module: 25ST2-88382T-S1R
- Riser card - CRS101Q: 9CRS101QNR-00*
- Riser card - CRS101T: 9CRS101TNR-00*
- Riser card - CRS202M: 9CRS202MNR-00*
- Riser card - CRS202N: 9CRS202NNR-00*
- G-SCM board - CDCR114: 9CDCR114NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-21600C-L0S
Optional parts:
- RAID card (SR-1001-ED4): 25FC1-SR1000-AFS
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR283Z90SR-RMA-A100
* 產品規格會依各國家地區出貨而有所變動，應以各地實際出貨狀況為準。誠摯建議與當地經銷商或零售商確認最新產品販售規格。
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
SUPPORT
驅動程式
BIOS
工具程式
Firmware
OS
- All
- All
- Windows Server 2022
- Windows Server 2019
- Linux
晶片組
晶片組
版本
檔案大小
日期
Chipset driver for AMD EPYC 9004 series processors
Version : 4.06.27.500
16.58 MB
Nov 11, 2022
作業系統: Windows Server 2019,Windows Server 2022
Chipset driver for AMD EPYC 9005/9004 series processors
Version : 6.10.07.747
2.82 MB
Oct 29, 2024
作業系統: Windows Server 2019,Windows Server 2022
AMD Chipset Windows Server PSHED Plug-in Device Driver
Version : 6.10.04.235
26.5 MB
Oct 29, 2024
作業系統: Windows Server 2019,Windows Server 2022
網路介面
BIOS
說明
版本
檔案大小
日期
Updated support for AMD EPYC™ 9005 series processors.
Version : R01_F28
44.4 MB
Oct 25, 2024
1) Fixed PKfail Vulnerability.
2) Optimized WebUI HDD & CX7 Invertory information.
2) Optimized WebUI HDD & CX7 Invertory information.
Version : F27
20.94 MB
Aug 26, 2024
1) Update to Genoa AGESA 1.0.0.C.
2) Security updates: CVE-2023-31315, CVE-2023-31355, CVE-2024-21978, CVE-2024-21980.
3) Multiple feature updates.
2) Security updates: CVE-2023-31315, CVE-2023-31355, CVE-2024-21978, CVE-2024-21980.
3) Multiple feature updates.
Version : F25
20.96 MB
Jul 11, 2024
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Warning:
更新BIOS有其潛在的風險，如果您使用目前版本的BIOS沒有問題，我們建議您不要任意更新BIOS。如需更新BIOS，請小心的執行，以避免不當的操作而造成系統毀損.
什麼是 BETA 版？
BETA版是正式推出前的試用版本。雖然該版本已經過測試，但可能還存在部份尚未發現、可能影響執行效能和功能的小問題。 請注意BETA版非正式的版本，並請密切注意正式版本的推出。
更新BIOS有其潛在的風險，如果您使用目前版本的BIOS沒有問題，我們建議您不要任意更新BIOS。如需更新BIOS，請小心的執行，以避免不當的操作而造成系統毀損.
什麼是 BETA 版？
BETA版是正式推出前的試用版本。雖然該版本已經過測試，但可能還存在部份尚未發現、可能影響執行效能和功能的小問題。 請注意BETA版非正式的版本，並請密切注意正式版本的推出。
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
工具程式
說明
版本
檔案大小
日期
GSM CLI
Version : 2.1.77
147.89 MB
Sep 27, 2024
作業系統: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
作業系統: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
作業系統: Linux,Windows Server 2016 64bit,Windows Server 2019
使用手冊
說明
版本
檔案大小
日期
User Guide - GIGABYTE Management Console (AMI AST2600)
Version : 1.0
11.72 MB
Aug 12, 2024
英語
說明
版本
檔案大小
日期
作業系統支援列表
Version : R1
0.06 MB
Oct 15, 2024
AMD EPYC™ 9005/9004 Series Processors OS Support List
RESOURCES
Back to R283-Z90-AAD2
