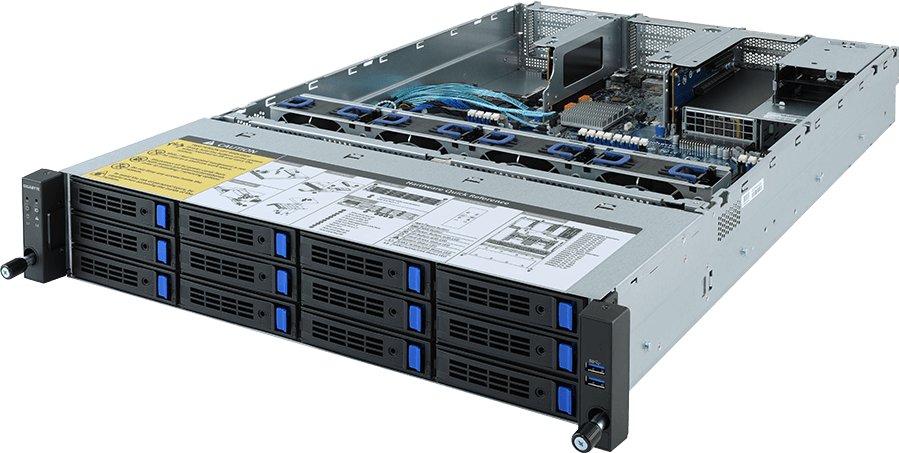

R261-3C0
Rack Server - 2nd/1st Gen Intel® Xeon® Scalable - 2U DP 12-Bay SATA/SAS
- Dual 2nd/1st Gen Intel® Xeon® Scalable Processors
- 6-Channel DDR4 RDIMM/LRDIMM, 16 x DIMMs
- 2 x 1Gb/s LAN ports via Intel® I210-AT
- 12 x 3.5"/2.5" SATA/SAS hot-swappable bays
- 2 x SATA DOMs supported
- 2 x M.2 slots with PCIe Gen3 x4 interface
- 6 x FHHL PCIe Gen3 x16 and x8 slots
- 2 x LP PCIe Gen3 x16 and x8 slots
- Single or Dual 800W 80 PLUS Platinum redundant power supply
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
438 x 87.5 x 730
438 x 87.5 x 730
Motherboard
MR51-CE0
CPU
2nd Generation Intel® Xeon® Scalable Processors
Intel® Xeon® Scalable Processors
Dual processor, TDP up to 125W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Intel® Xeon® Scalable Processors
Dual processor, TDP up to 125W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 3647
Socket P
Socket P
Chipset
Intel® C621
Memory
16 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM up to 64GB supported
LRDIMM up to 128GB supported
1.2V modules: 2933/2666/2400/2133 MT/s
Note: 2933 MT/s for 2nd Generation Intel® Xeon® Scalable Processors only.
DDR4 memory supported only
6-channel memory architecture
RDIMM up to 64GB supported
LRDIMM up to 128GB supported
1.2V modules: 2933/2666/2400/2133 MT/s
Note: 2933 MT/s for 2nd Generation Intel® Xeon® Scalable Processors only.
LAN
Rear side:
2 x 1Gb/s LAN ports (2 x Intel® I210-AT)
1 x 10/100/1000 Mbps Management LAN
*2 x 10Gb/s LAN ports (Intel® X557) (optional)
*2 x 25Gb/s SFP28 ports (Mellanox® ConnectX-4 Lx) (optional)
2 x 1Gb/s LAN ports (2 x Intel® I210-AT)
1 x 10/100/1000 Mbps Management LAN
*2 x 10Gb/s LAN ports (Intel® X557) (optional)
*2 x 25Gb/s SFP28 ports (Mellanox® ConnectX-4 Lx) (optional)
Video
Integrated in Aspeed® AST2500
- 1 x VGA port
- 1 x VGA port
Storage
Front side:
12 x 3.5"/2.5" SATA/SAS hot-swappable bays, from PCH
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays (optional)
SAS card is required for SAS devices support
12 x 3.5"/2.5" SATA/SAS hot-swappable bays, from PCH
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays (optional)
SAS card is required for SAS devices support
SATA
2 x 7-pin SATA 6Gb/s with SATA DOM supported
By using pin_8 or external cable for power function
By using pin_8 or external cable for power function
SAS
Depends on SAS add-in cards
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
Riser Card CRS2131:
- 1 x PCIe x16 (Gen3 x16 or x8) FHHL slot, from CPU_0
- 1 x PCIe x8 (Gen3 x0 or x8) FHHL slot, from CPU_0
- 1 x PCIe x8 (Gen3 x8) FHHL slot, from CPU_0
Riser Card CRS2132:
- 1 x PCIe x16 (Gen3 x16 or x8) FHHL slot, from CPU_1
- 1 x PCIe x8 (Gen3 x0 or x8) FHHL slot, from CPU_1
- 1 x PCIe x8 (Gen3 x8) FHHL slot, from CPU_1
Riser Card CRS2124:
- 1 x PCIe x16 (Gen3 x16 or x8) low-profile slot, from CPU_1
- 1 x PCIe x8 (Gen3 x0 or x8) low-profile slot, from CPU_1
2 x M.2 slots:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2260/2280 cards
- 1 x PCIe x16 (Gen3 x16 or x8) FHHL slot, from CPU_0
- 1 x PCIe x8 (Gen3 x0 or x8) FHHL slot, from CPU_0
- 1 x PCIe x8 (Gen3 x8) FHHL slot, from CPU_0
Riser Card CRS2132:
- 1 x PCIe x16 (Gen3 x16 or x8) FHHL slot, from CPU_1
- 1 x PCIe x8 (Gen3 x0 or x8) FHHL slot, from CPU_1
- 1 x PCIe x8 (Gen3 x8) FHHL slot, from CPU_1
Riser Card CRS2124:
- 1 x PCIe x16 (Gen3 x16 or x8) low-profile slot, from CPU_1
- 1 x PCIe x8 (Gen3 x0 or x8) low-profile slot, from CPU_1
2 x M.2 slots:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2260/2280 cards
Internal I/O
2 x Power supply connectors
5 x SlimSAS connectors
2 x SATA 7-pin connectors
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
5 x SlimSAS connectors
2 x SATA 7-pin connectors
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x Storage activity LED
2 x LAN activity LEDs
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x Storage activity LED
2 x LAN activity LEDs
Rear I/O
2 x USB 3.0
1 x VGA
1 x COM (optional)
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
1 x COM (optional)
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
SATA 6Gb/s or SAS 12Gb/s
SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
Single 800W 80 PLUS Platinum power supply
AC Input:
- 100-240V~/ 10-4A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 4.5A
DC Output:
- Max 800W
+12V/ 66A
+12Vsb/ 2.5A
*Upgradeable to dual 800W redundant power supply (please refer to part numbers column)
AC Input:
- 100-240V~/ 10-4A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 4.5A
DC Output:
- Max 800W
+12V/ 66A
+12Vsb/ 2.5A
*Upgradeable to dual 800W redundant power supply (please refer to part numbers column)
System Management
Aspeed® AST2500 Baseboard Management Controller
Controller supported protocol: SNMP(v2c,v3), IPMI 2.0, DCMI
Avocent® MergePoint IPMI 2.0 web interface:
Controller supported protocol: SNMP(v2c,v3), IPMI 2.0, DCMI
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Hardware information
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Fan profiles
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (HTML5)
OS Compatibility
For Skylake processors:
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later
Red Hat Enterprise Linux 6.9 or later
Red Hat Enterprise Linux 7.3 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 11 SP4 or later
SUSE Linux Enterprise Server 12 SP2 or later
SUSE Linux Enterprise Server 15 or later
Ubuntu 16.04.1 LTS or later
Ubuntu 18.04 LTS or later
Ubuntu 20.04 LTS or later
VMware ESXi 6.0 Update 3 or later
VMware ESXi 6.5 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Microsoft Hyper-V Server: 2012 R2, 2016 & 2019
For Cascade Lake processors:
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.5.0 or later
Citrix Hypervisor 8.0.0 or later
Red Hat Enterprise Linux 7.6 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP3 or later
SUSE Linux Enterprise Server 15 or later
Ubuntu 18.04 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.0 Update 3 or later
VMware ESXi 6.5 Update 2 or later
VMware ESXi 6.7 Update 1 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Oracle Linux 7.6 UEK Release 5 Update 2
Oracle VM 3.4.6 UEK Release 4 Update 7
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Microsoft Hyper-V Server: 2012 R2, 2016 & 2019
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later
Red Hat Enterprise Linux 6.9 or later
Red Hat Enterprise Linux 7.3 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 11 SP4 or later
SUSE Linux Enterprise Server 12 SP2 or later
SUSE Linux Enterprise Server 15 or later
Ubuntu 16.04.1 LTS or later
Ubuntu 18.04 LTS or later
Ubuntu 20.04 LTS or later
VMware ESXi 6.0 Update 3 or later
VMware ESXi 6.5 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Microsoft Hyper-V Server: 2012 R2, 2016 & 2019
For Cascade Lake processors:
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.5.0 or later
Citrix Hypervisor 8.0.0 or later
Red Hat Enterprise Linux 7.6 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP3 or later
SUSE Linux Enterprise Server 15 or later
Ubuntu 18.04 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.0 Update 3 or later
VMware ESXi 6.5 Update 2 or later
VMware ESXi 6.7 Update 1 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Oracle Linux 7.6 UEK Release 5 Update 2
Oracle VM 3.4.6 UEK Release 4 Update 7
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Microsoft Hyper-V Server: 2012 R2, 2016 & 2019
System Fans
4 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 16.94 kg
Gross Weight: 21 kg
Gross Weight: 21 kg
Packaging Dimensions
967 x 570 x 238 mm
Packaging Content
1 x R261-3C0
2 x CPU heatsinks
1 x Rail kit
2 x Non-fabric CPU carriers
2 x CPU heatsinks
1 x Rail kit
2 x Non-fabric CPU carriers
Part Numbers
- Barebone package with Single PSU: 6NR2613C0MR-00-1*
- Barebone package with Dual PSU: 6NR2613C0MR-00-2*
- Motherboard: 9MR51CE0NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-12310Z-T1R
- Non-fabric CPU carrier: 12KRC-0F3647-50R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20C3: 9CBP20C3NR-00
- Riser card - CRS2131: 9CRS2131NR-00
- Riser card - CRS2132: 9CRS2132NR-00
- Riser card - CRS2124: 9CRS2124NR-00
- Fan module: 25ST2-883829-D0R
- Power supply: 25EP0-208004-L0S
Optional parts:
- Rear side 2.5" tray kit: 6NR2613C0SR-00-100
- Barebone package with Dual PSU: 6NR2613C0MR-00-2*
- Motherboard: 9MR51CE0NR-00
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-12310Z-T1R
- Non-fabric CPU carrier: 12KRC-0F3647-50R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20C3: 9CBP20C3NR-00
- Riser card - CRS2131: 9CRS2131NR-00
- Riser card - CRS2132: 9CRS2132NR-00
- Riser card - CRS2124: 9CRS2124NR-00
- Fan module: 25ST2-883829-D0R
- Power supply: 25EP0-208004-L0S
Optional parts:
- Rear side 2.5" tray kit: 6NR2613C0SR-00-100
* 產品規格會依各國家地區出貨而有所變動，應以各地實際出貨狀況為準。誠摯建議與當地經銷商或零售商確認最新產品販售規格。
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
SUPPORT
驅動程式
BIOS
工具程式
Firmware
QVL
- All
- All
- Windows Server 2019
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Linux
晶片組
晶片組
版本
檔案大小
日期
Intel® Chipset Driver
Version : 10.1.17861.8101
3.34 MB
Apr 18, 2019
作業系統: Windows Server 2012 R2 64bit,Windows Server 2016 64bit,Windows Server 2019
Intel® Chipset Driver
Version : 10.1.18228.8176
3.12 MB
Dec 29, 2019
作業系統: Windows Server 2012 R2 64bit,Windows Server 2016 64bit,Windows Server 2019
網路介面
網路介面
版本
檔案大小
日期
Intel® LAN Driver and Utility
Version : 23.5
487.48 MB
Apr 18, 2019
作業系統: Windows Server 2012 R2 64bit,Linux,Windows Server 2016 64bit,Windows Server 2019
SATA RAID/AHCI
SATA RAID/AHCI
版本
檔案大小
日期
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 6.0.0.1357
6.54 MB
Apr 19, 2019
作業系統: Windows Server 2012 R2 64bit,Windows Server 2016 64bit,Windows Server 2019
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 6.0.0.1357
265.09 MB
Apr 21, 2019
作業系統: Windows Server 2012 R2 64bit,Windows Server 2016 64bit,Windows Server 2019
公用程式
BIOS
說明
版本
檔案大小
日期
Update for security: Vulnerabilities in EDK2 NetworkPkg include CVE-2023-45236, CVE- 2023-45237.
Version : R28
19.18 MB
May 27, 2024
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Warning:
更新BIOS有其潛在的風險，如果您使用目前版本的BIOS沒有問題，我們建議您不要任意更新BIOS。如需更新BIOS，請小心的執行，以避免不當的操作而造成系統毀損.
什麼是 BETA 版？
BETA版是正式推出前的試用版本。雖然該版本已經過測試，但可能還存在部份尚未發現、可能影響執行效能和功能的小問題。 請注意BETA版非正式的版本，並請密切注意正式版本的推出。
更新BIOS有其潛在的風險，如果您使用目前版本的BIOS沒有問題，我們建議您不要任意更新BIOS。如需更新BIOS，請小心的執行，以避免不當的操作而造成系統毀損.
什麼是 BETA 版？
BETA版是正式推出前的試用版本。雖然該版本已經過測試，但可能還存在部份尚未發現、可能影響執行效能和功能的小問題。 請注意BETA版非正式的版本，並請密切注意正式版本的推出。
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
工具程式
說明
版本
檔案大小
日期
GSM CLI
Version : 2.1.77
147.89 MB
Sep 27, 2024
作業系統: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
作業系統: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
作業系統: Linux,Windows Server 2016 64bit,Windows Server 2019
Firmware
說明
版本
檔案大小
日期
BMC Firmware with embedded GIGABYTE Management Console
(AST2500 AMI)
(AST2500 AMI)
Version : 12.61.21
105.38 MB
Apr 11, 2024
英語
使用手冊
說明
版本
檔案大小
日期
說明
版本
檔案大小
日期
RESOURCES
Success Case
Articles
Video
News
Security & Technical Advisory
Others
Back to R261-3C0
