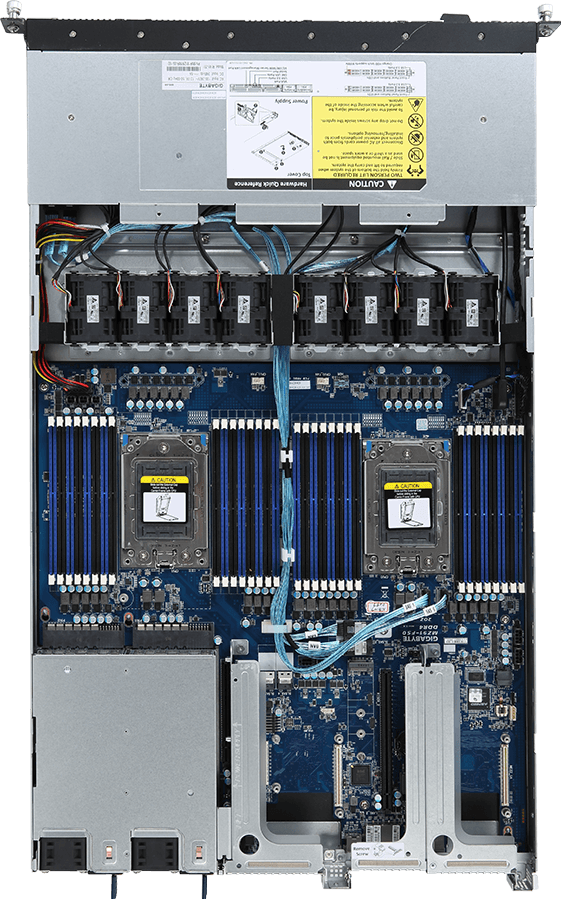

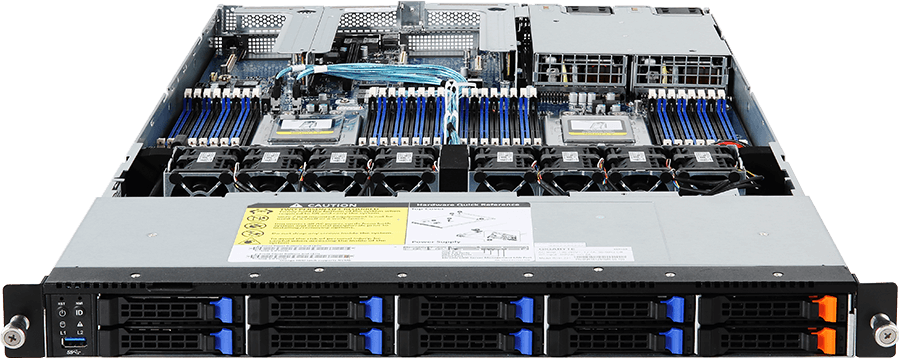

Rack Server - AMD EPYC™ 7002/7001 - 1U DP 10-Bay Gen3 NVMe/SATA/SAS
- Dual AMD EPYC™ 7002/7001 Series Processors
- 8-Channel DDR4 RDIMM/LRDIMM, 32 x DIMMs
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 2 x 2.5" Gen3 NVMe hot-swappable bays
- 8 x 2.5" SATA/SAS hot-swappable bays
- 1 x M.2 slot with PCIe Gen3 x4 interface
- 3 x LP PCIe Gen3 x16 and x8 slots
- 2 x OCP Gen3 x16 mezzanine slots
- Dual 1200W 80 PLUS Platinum redundant power supply
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
SPECIFICATIONS
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 710
438 x 43.5 x 710
Motherboard
MZ91-FS0
CPU
AMD EPYC™ 7002 Series Processors
AMD EPYC™ 7001 Series Processors
Dual processor, 7nm technology
Up to 64 cores, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Supports 280W CPU at ambient 30°C
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
AMD EPYC™ 7001 Series Processors
Dual processor, 7nm technology
Up to 64 cores, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Supports 280W CPU at ambient 30°C
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Chipset
System on Chip
Memory
32 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
LAN
Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
- 1 x VGA port
- 1 x VGA port
Storage
Front side:
2 x 2.5" Gen3 NVMe hot-swappable bays, from CPU_0
8 x 2.5" SATA/SAS hot-swappable bays
SAS card is required for SAS devices support
2 x 2.5" Gen3 NVMe hot-swappable bays, from CPU_0
8 x 2.5" SATA/SAS hot-swappable bays
SAS card is required for SAS devices support
SAS
Depends on SAS add-in cards
RAID
N/A
Expansion Slots
Riser Card CRS1021:
- 2 x PCIe x8 (Gen3 x8) low-profile slots, from CPU_0
Riser Card CRS1015:
- 1 x PCIe x16 (Gen3 x16) low-profile slot, from CPU_1
1 x OCP mezzanine slot with PCIe Gen3 x16 bandwidth, from CPU_0 (Type1, P1, P2, P3, P4)
1 x OCP mezzanine slot with PCIe Gen3 x16 bandwidth, from CPU_1 (Type1, P1, P2, P3, P4)
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2242/2260/2280 cards
- CPU TDP is limited to 180W if using M.2 device
- 2 x PCIe x8 (Gen3 x8) low-profile slots, from CPU_0
Riser Card CRS1015:
- 1 x PCIe x16 (Gen3 x16) low-profile slot, from CPU_1
1 x OCP mezzanine slot with PCIe Gen3 x16 bandwidth, from CPU_0 (Type1, P1, P2, P3, P4)
1 x OCP mezzanine slot with PCIe Gen3 x16 bandwidth, from CPU_1 (Type1, P1, P2, P3, P4)
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2242/2260/2280 cards
- CPU TDP is limited to 180W if using M.2 device
Internal I/O
6 x SlimSAS connectors
1 x M.2 slot
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
5 x PCIe expansion slots
2 x OCP mezzanine slots
2 x Power supply connectors
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x M.2 slot
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
5 x PCIe expansion slots
2 x OCP mezzanine slots
2 x Power supply connectors
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Front I/O
1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
2 x USB 3.0
1 x VGA
1 x COM (RJ45 type)
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
1 x COM (RJ45 type)
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with LPC interface
- Optional TPM2.0 kit: CTM000
- Optional TPM2.0 kit: CTM000
Power Supply
Dual 1200W 80 PLUS Platinum redundant power supply
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 6A
DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1200W/ 200-240V~ or 240Vdc Input
+12V/ 97A
+12Vsb/ 3A
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 6A
DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1200W/ 200-240V~ or 240Vdc Input
+12V/ 97A
+12Vsb/ 3A
System Management
Aspeed® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
For AMD EPYC™ 7002 Series Processors
Citrix Hypervisor 8.1.0
Red Hat Enterprise Linux 7.6 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP4 or later
SUSE Linux Enterprise Server 15 SP1 or later
Ubuntu 16.04.6 LTS or later
Ubuntu 18.04.3 LTS or later
Ubuntu 20.04 LTS or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
For AMD EPYC™ 7001 Series Processors
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later
Red Hat Enterprise Linux 7.4 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 11 SP4 or later
SUSE Linux Enterprise Server 12 SP3 or later
SUSE Linux Enterprise Server 15 or later
Ubuntu 16.04 LTS or later
Ubuntu 18.04 LTS or later
Ubuntu 20.04 LTS or later
VMware ESXi 6.5 Update1 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Citrix Hypervisor 8.1.0
Red Hat Enterprise Linux 7.6 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP4 or later
SUSE Linux Enterprise Server 15 SP1 or later
Ubuntu 16.04.6 LTS or later
Ubuntu 18.04.3 LTS or later
Ubuntu 20.04 LTS or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
For AMD EPYC™ 7001 Series Processors
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later
Red Hat Enterprise Linux 7.4 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 11 SP4 or later
SUSE Linux Enterprise Server 12 SP3 or later
SUSE Linux Enterprise Server 15 or later
Ubuntu 16.04 LTS or later
Ubuntu 18.04 LTS or later
Ubuntu 20.04 LTS or later
VMware ESXi 6.5 Update1 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
System Fans
8 x 40x40x56mm (23,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 13 kg
Gross Weight: 21 kg
Gross Weight: 21 kg
Packaging Dimensions
985 x 588 x 250 mm
Packaging Content
1 x R181-Z91
2 x CPU heatsinks
1 x Rail kit
2 x CPU heatsinks
1 x Rail kit
Part Numbers
- Barebone package: 6NR181Z91MR-00-A*
- Motherboard: 9MZ91FS0NR-00-2*
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320D-J1R
- Backplane board - CBP10A4: 9CBP10A4NR-00
- Riser card - CRS1021: 9CRS1021NR-00
- Riser card - CRS1015: 9CRS1015NR-00
- Fan module: 25ST2-44562G-D0R
- Power supply: 25EP0-212002-F3S
- Airduct dummy: 25EK4-R18200-S9R
Optional parts:
- RJ45 type COM cable: 25CR0-200400-Y4R
- Motherboard: 9MZ91FS0NR-00-2*
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320D-J1R
- Backplane board - CBP10A4: 9CBP10A4NR-00
- Riser card - CRS1021: 9CRS1021NR-00
- Riser card - CRS1015: 9CRS1015NR-00
- Fan module: 25ST2-44562G-D0R
- Power supply: 25EP0-212002-F3S
- Airduct dummy: 25EK4-R18200-S9R
Optional parts:
- RJ45 type COM cable: 25CR0-200400-Y4R
* 產品規格會依各國家地區出貨而有所變動，應以各地實際出貨狀況為準。誠摯建議與當地經銷商或零售商確認最新產品販售規格。
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
SUPPORT
驅動程式
BIOS
工具程式
Firmware
QVL
- All
- All
- Windows Server 2019
- Windows Server 2016 64bit
晶片組
晶片組
版本
檔案大小
日期
AMD Chipset Driver
Version : 1.07.12.1102
17.05 MB
Aug 06, 2019
作業系統: Windows Server 2016 64bit,Windows Server 2019
網路介面
網路介面
版本
檔案大小
日期
Intel® LAN Driver and Utility
Version : 24.0
542.58 MB
Aug 06, 2019
作業系統: Windows Server 2016 64bit,Windows Server 2019
顯示介面
顯示介面
版本
檔案大小
日期
ASPEED Graphic Driver
Version : 1.06
1.78 MB
Aug 06, 2019
作業系統: Windows Server 2016 64bit,Windows Server 2019
BIOS
說明
版本
檔案大小
日期
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
1. Fixed AC back after new LAN card make incorrect boot order issue before BMC 12.45.01
2. Update CVE-2020-10713 secure boot key
2. Update CVE-2020-10713 secure boot key
Version : R28_F23
31.88 MB
Oct 12, 2020
1. Updated AGESA version to 1.0.0.7
2. Adjusted Format of BMC version
3. Adjusted default settings of Setup item "IOMMU" , "SMT Mode"
4. Adjusted default settings of Setup item "MCA error thresh enable" , "MCA error thresh count"
2. Adjusted Format of BMC version
3. Adjusted default settings of Setup item "IOMMU" , "SMT Mode"
4. Adjusted default settings of Setup item "MCA error thresh enable" , "MCA error thresh count"
Version : R22_F21
31.47 MB
Jun 10, 2020
1. Updated Redfish remote setup protocol
2. Adjusted boot option maximum
2. Adjusted boot option maximum
Version : R20_F21
37.94 MB
Mar 27, 2020
1. Updated AGESA version to 1.0.0.6
2. Adjusted the behavior of IPMI boot device setting Legacy or UEFI
3. Adjusted POST memory PMU error message
4. Added BIOS setup item "ErP mode" ( Need BMC support , Please check BMC version form web-site )
2. Adjusted the behavior of IPMI boot device setting Legacy or UEFI
3. Adjusted POST memory PMU error message
4. Added BIOS setup item "ErP mode" ( Need BMC support , Please check BMC version form web-site )
Version : R18_F20
37.79 MB
Feb 25, 2020
1. Fix "Trigger memory single or multi bit error, BMC log have some problem." (mantis 39870, 38650, 38448, 38449)
2. Fix "OS will not blue screen when trigger memory multi bit error under Windows 2019" (mantis 38649)
3. Add boot options for "Citrix Xenserver (Hypervisor)" and "VMware ESXi"
4. Open BMC Virtual USB device list for BIOS setup (mantis 39856)
5. Adjust SMBIOS type 10/41 information
6. Update VBIOS version to v110.
2. Fix "OS will not blue screen when trigger memory multi bit error under Windows 2019" (mantis 38649)
3. Add boot options for "Citrix Xenserver (Hypervisor)" and "VMware ESXi"
4. Open BMC Virtual USB device list for BIOS setup (mantis 39856)
5. Adjust SMBIOS type 10/41 information
6. Update VBIOS version to v110.
Version : R15_F20
37.37 MB
Dec 12, 2019
1. Fixed System only have one com port, BIOS have two com port control item
2. Fixed BMC vlan function not workable under BIOS
3. Adjusted AC loss behavior. (BIOS load default will be synchronized to BMC)
2. Fixed BMC vlan function not workable under BIOS
3. Adjusted AC loss behavior. (BIOS load default will be synchronized to BMC)
Version : R12_F19
37.37 MB
Nov 20, 2019
1. Updated behavior for Power Policy Quick Settings "Standard"
2. Adjusted AC loss behavior. (BIOS load default will be synchronized to BMC)
3. Supported HTTP boot
4 . Adjusted NVMe setup page and Web UI NVMe information
2. Adjusted AC loss behavior. (BIOS load default will be synchronized to BMC)
3. Supported HTTP boot
4 . Adjusted NVMe setup page and Web UI NVMe information
Version : R07_F18
30.91 MB
Sep 24, 2019
Warning:
更新BIOS有其潛在的風險，如果您使用目前版本的BIOS沒有問題，我們建議您不要任意更新BIOS。如需更新BIOS，請小心的執行，以避免不當的操作而造成系統毀損.
什麼是 BETA 版？
BETA版是正式推出前的試用版本。雖然該版本已經過測試，但可能還存在部份尚未發現、可能影響執行效能和功能的小問題。 請注意BETA版非正式的版本，並請密切注意正式版本的推出。
更新BIOS有其潛在的風險，如果您使用目前版本的BIOS沒有問題，我們建議您不要任意更新BIOS。如需更新BIOS，請小心的執行，以避免不當的操作而造成系統毀損.
什麼是 BETA 版？
BETA版是正式推出前的試用版本。雖然該版本已經過測試，但可能還存在部份尚未發現、可能影響執行效能和功能的小問題。 請注意BETA版非正式的版本，並請密切注意正式版本的推出。
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
工具程式
說明
版本
檔案大小
日期
GSM CLI
Version : 2.1.77
147.89 MB
Sep 27, 2024
作業系統: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
作業系統: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
作業系統: Linux,Windows Server 2016 64bit,Windows Server 2019
Firmware
說明
版本
檔案大小
日期
BMC Firmware with embedded GIGABYTE Management Console
(AST2500 AMI)
(AST2500 AMI)
Version : 12.61.21
105.38 MB
Apr 11, 2024
英語
使用手冊
說明
版本
檔案大小
日期
說明
版本
檔案大小
日期
RESOURCES
Success Case
Articles
Video
News
Security & Technical Advisory
Others
Back to R181-Z91
