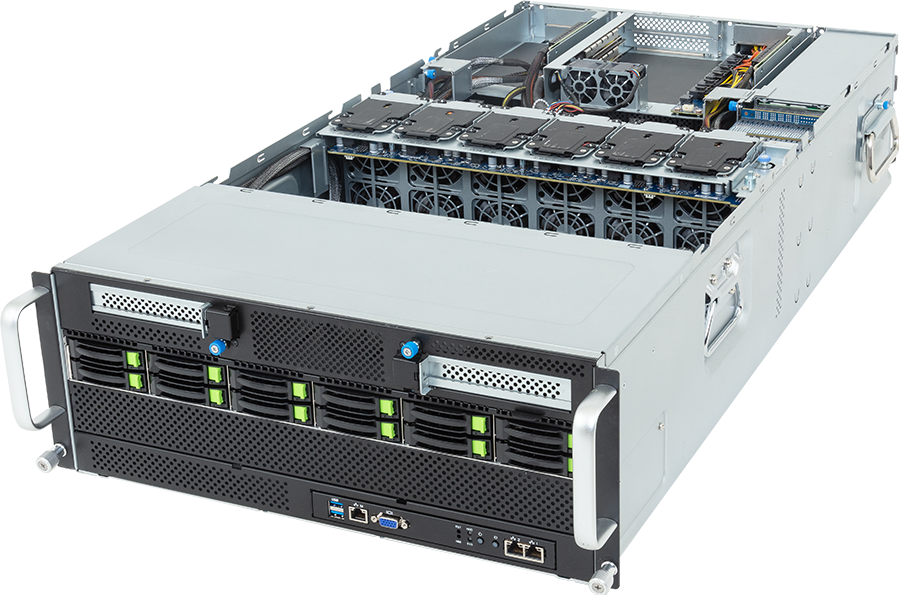

G494-SB4-AAP2

即將推出

HPC/AI Server - Intel^® Xeon^® 6 Processors - 4U DP NVIDIA OVX™ 8 x PCIe Gen5 GPUs

# 人工智慧平台 # 人工智慧訓練伺服器 # 人工智慧推論伺服器 # 視覺特效演算 # 高效能運算伺服器

Optimized for NVIDIA OVX™ Server with 8 GPUs configuration
Supports 8 x NVIDIA H200 NVL PCIe GPUs with 4-way NVLink bridges
Dual Intel^® Xeon^® 6 Processors, LGA 4710
8-Channel DDR5 RDIMM / MRDIMM, 32 x DIMMs
Dual ROM Architecture
2 x 10Gb/s LAN ports via Intel^® X710-AT2
12 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
8 x FHFL PCIe Gen5 x16 slots for GPUs
6 x FHHL PCIe Gen5 x16 slots
2 x FHHL PCIe Gen5 x16 slots on the front side
4 x 3000W 80 PLUS Titanium redundant power supplies

Get a Quote

加入比較表

Get a Quote

* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。

SPECIFICATIONS

Dimensions (WxHxD, mm)

4U
448 x 176 x 880

Motherboard

MSB4-G40

CPU

Intel^® Xeon^® 6 Processors
- Intel^® Xeon^® 6700E-Series Processors
- Intel^® Xeon^® 6700P-Series Processors (available Q1'25)
- Intel^® Xeon^® 6500P-Series Processors (available Q1'25)

Dual processor, TDP up to 350W

^[Note]If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

2 x LGA 4710
Socket E2

Chipset

System on Chip

Memory

32 x DIMM slots
DDR5 memory supported
8-Channel memory architecture
MRDIMM supported^[1]
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MRDIMM: Up to 8000 MT/s

^[1]MRDIMMs are only supported with Intel^® Xeon^® 6 Processors with P-cores and in a 1DPC configuration.

LAN

Front:
2 x 10Gb/s LAN (1 x Intel^® X710-AT2)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video

Integrated in Aspeed^® AST2600
- 1 x VGA port

Storage

Front hot-swap:
12 x 2.5" Gen5 NVMe/SATA/SAS-4^[1]
- (2 x NVMe from CPU_0, 2 x NVMe from CPU_1)
- (4 x NVMe from PEX89144_0, 4 x NVMe from PEX89144_1)

^[1]Storage card is required to support SATA and SAS drives.

SAS

Require SAS add-in cards

RAID

Require RAID add-in cards
Onboard VROC key headers

PCIe Expansion Slots

Rear:

PCIe Switch Board - CPB4AG0:
- 4 x FHFL x16 (Gen5 x16), from PEX89144_0, for GPUs
- 4 x FHFL x16 (Gen5 x16), from PEX89144_1, for GPUs

PCIe Cable x 6:
- 2 x FHHL x16 (Gen5 x16), from PEX89144_0
- 2 x FHHL x16 (Gen5 x16), from PEX89144_1
- 1 x FHHL x16 (Gen5 x16), from CPU_0
- 1 x FHHL x16 (Gen5 x16), from CPU_1

Front:

PCIe Cable x 2:
- 1 x FHHL x16 (Gen5 x16), from CPU_0
- 1 x FHHL x16 (Gen5 x16), from CPU_1

^[Note]The system supports 8 x NVIDIA H200 NVL PCIe GPUs at 25°C ambient, arranged as two 4-GPU sets, each with a 4-way NVLink bridge.

^[Note]The system is only validated with a uniform GPU model.

Front I/O

2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED

Rear I/O

N/A

Backplane Board

Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

Security Modules

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

1 x PRoT connector (only enabled on RoT SKU)

Power Supply

4 x 3000W 80 PLUS Titanium redundant power supplies^[1]

^[1]The system power supply requires C19 power cord.

System Management

Aspeed^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Please refer to OS compatibility table in support page

System Fans

TBD

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

1200 x 800 x 444 mm w/ pallet

Packaging Content

1 x G494-SB4-AAP2
2 x CPU fansinks
8 x GPU power cables (12VHPWR, 150mm)
4 x Carriers
1 x L-shape Rail kit

Part Numbers

- Barebone package: 6NG494SB4DR000AAP2*
- Motherboard: 9MSB4G40UR-000*
- L-shape Rail kit: 25HB2-A96100-K0R
