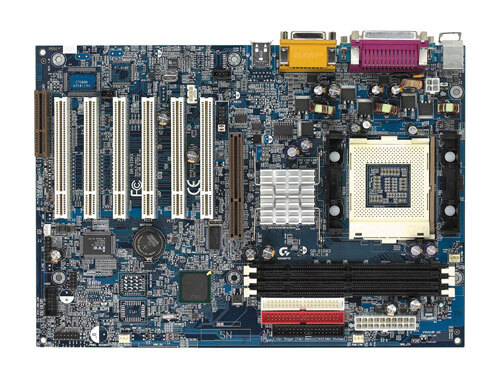

GA-8IDX3 (Rev. 1.x)

SpécificationsSupportActualité / RécompensesWhere to Buy

Spécifications

  • Processeur
    1. PGA 423 socket for Intel® Pentium® 4 processor
    2. 400MHz FSB (standard) and support multi-FSB setting from BIOS
    3. CPU host frequency (100~200Hz) adjusting from BIOS
    4. Host/DRAM clock ratio setting (1.0, 1.33, auto)
    5. Supports CPU multiplier: 8,9...24 setting from BIOS
    6. (1.1,1.125...1.85 V) 30 scales CPU voltage setting from BIOS
  • Chipset
    1. Intel® 845 Chipset consists of Intel® Memory Controller Hub (MCH) and the Intel® I/O Controller Hub 2 (ICH2)
    2. Realtek ALC 201A codec (AC 97 audio)
    3. ITE I/O chip
  • Mémoire
    1. 3 x 168-pin DIMM slot
    2. SDRAM over-voltage setting (3.4, 3.5, 3.6V) form BIOS
    3. SDRAM over-clock setting(100~200 Hz based on Host/SDRAM clock ratio) from BIOS
    4. Supports up to 3GB of PC133/PC100 SDR-SDRAM
    5. Supports 64 bits data interface, 3.3V DIMM DRAM and ECC DIMM
  • Port d'expansion
    1. 1 x AGP 4X slot supports 4X mode & AGP 2.0 compliant(voltage adjustable from 1.6V~1.8V from BIOS)
    2. 6 x PCI slots support 33MHz & PCI 2.2 compliant
    3. 1 x CNR (Communication Network Riser) slot
  • Contrôleur d'Entrée/Sortie
    1. IDE1 and IDE 2 supports PIO mode 3, 4, UDMA ATA 100/66 IDE devices
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x Joystick, 1 x Line-in, 1 x Line-out and 1 x MIC on board
    4. 2 x USB ports on board
    5. 2 x USB ports by cable(optional accessory)
    6. IrDA TX / RX header
  • Monitorage Matériel
    1. CPU/System fan revolution detect
    2. CPU fan control
    3. System voltage detect
    4. CPU overheat warning
  • BIOS
    1. Supports @BIOS™ and Gigabyte Q-Flash utility
    2. Award BIOS with enhanced ACPI feature for PC98/Win98/Me/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. Auto-detect & report system health status
  • Dimensions
    1. ATX form factor, 4 layers PCB (30.5 x 21.4 cm)
  • Pilote
    1. Gigabyte Windows Utility Manager; EasyTune III™ and @BIOS™ utility
  • Autres Caractéristiques
    1. Suspend-To-RAM (STR); Supports Wake-On-LAN (WOL)
    2. Supports Internal / External Modem Ring On
    3. Includes 3 fan power connectors
    4. Poly fuse for keyboard over-current protection
  • Puissance
    1. ATX power connector and ATX 12V connector
    2. Power-on by LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/Me/2000/NT/XP shut down & switch
    4. Supports USB device wake up
  • Processeur
    1. PGA 423 socket for Intel® Pentium® 4 processor
    2. 400MHz FSB (standard) and support multi-FSB setting from BIOS
    3. CPU host frequency (100~200Hz) adjusting from BIOS
    4. Host/DRAM clock ratio setting (1.0, 1.33, auto)
    5. Supports CPU multiplier: 8,9...24 setting from BIOS
    6. (1.1,1.125...1.85 V) 30 scales CPU voltage setting from BIOS
  • Chipset
    1. Intel® 845 Chipset consists of Intel® Memory Controller Hub (MCH) and the Intel® I/O Controller Hub 2 (ICH2)
    2. Realtek ALC 201A codec (AC 97 audio)
    3. ITE I/O chip
  • Mémoire
    1. 3 x 168-pin DIMM slot
    2. SDRAM over-voltage setting (3.4, 3.5, 3.6V) form BIOS
    3. SDRAM over-clock setting(100~200 Hz based on Host/SDRAM clock ratio) from BIOS
    4. Supports up to 3GB of PC133/PC100 SDR-SDRAM
    5. Supports 64 bits data interface, 3.3V DIMM DRAM and ECC DIMM
  • Port d'expansion
    1. 1 x AGP 4X slot supports 4X mode & AGP 2.0 compliant(voltage adjustable from 1.6V~1.8V from BIOS)
    2. 6 x PCI slots support 33MHz & PCI 2.2 compliant
    3. 1 x CNR (Communication Network Riser) slot
  • Contrôleur d'Entrée/Sortie
    1. IDE1 and IDE 2 supports PIO mode 3, 4, UDMA ATA 100/66 IDE devices
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x Joystick, 1 x Line-in, 1 x Line-out and 1 x MIC on board
    4. 2 x USB ports on board
    5. 2 x USB ports by cable(optional accessory)
    6. IrDA TX / RX header
  • Monitorage Matériel
    1. CPU/System fan revolution detect
    2. CPU fan control
    3. System voltage detect
    4. CPU overheat warning
  • BIOS
    1. Supports @BIOS™ and Gigabyte Q-Flash utility
    2. Award BIOS with enhanced ACPI feature for PC98/Win98/Me/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. Auto-detect & report system health status
  • Dimensions
    1. ATX form factor, 4 layers PCB (30.5 x 21.4 cm)
  • Pilote
    1. Gigabyte Windows Utility Manager; EasyTune III™ and @BIOS™ utility
  • Autres Caractéristiques
    1. Suspend-To-RAM (STR); Supports Wake-On-LAN (WOL)
    2. Supports Internal / External Modem Ring On
    3. Includes 3 fan power connectors
    4. Poly fuse for keyboard over-current protection
  • Puissance
    1. ATX power connector and ATX 12V connector
    2. Power-on by LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/Me/2000/NT/XP shut down & switch
    4. Supports USB device wake up

* Les termes HDMI, interface multimédia haute définition HDMI et habillage commercial HDMI, et les logos HDMI sont des marques commerciales et des marques déposées de HDMI Licensing Administrator, Inc.
* Les informations ici proposées le sont pour référence uniquement. GIGABYTE se réserve le droit de modifier ce contenu à tout moment et sans préavis.
*Les performances affichées sont basées sur les informations proposées par les constructeurs de chipsets ou sociétés définissant les caractéristiques des interfaces. Performances pouvant varier selon configuration.
* Marques et logos appartiennent aux détenteurs respectifs de leurs droits.
* L'architecture de grand nombre de PC affectera directement la capacité mémoire, en effet, une certaine quantité de RAM sera affectée au système, la quantité totale affichée pourra alors varier de celle insérée sur votre carte mère
