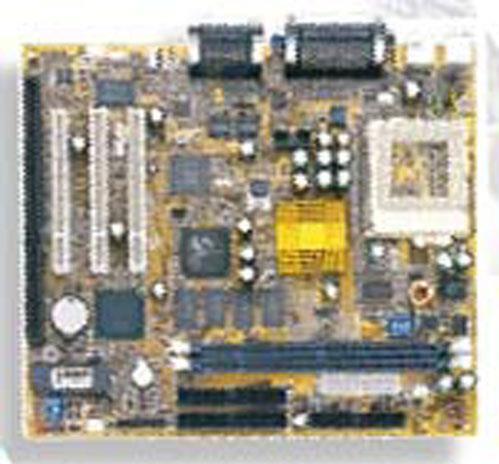

GA-6ZMM7

SpécificationsSupportActualité / RécompensesWhere to Buy

Spécifications

  • Processeur
    1. Intel® PPGA CeleronTM Processor 300 to 433 MHz
    2. Socket 370 for future Processor support
    3. 66/75*/83*/100/112*/133* MHz System Bus
    4. AUTO Detect CPU Voltage
    5. Clock multiplier 3.0/3.5 .... /6.5
  • Chipset
    1. Intel® 440ZX AGPset
    2. Winbond 83977 I/Oset
    3. ATi AGP chip (8MB SDRAM)
    4. YAMAHA 740 PCI Sound chip
    5. Winbond 83782 Health chip
  • Mémoire
    1. 8MB to 512MB DRAM size
    2. 2 x 3.3V DIMM Sockets
    3. Supports 8/16/32/64/128/256 MB SDRAM DIMM Module
  • Port d'expansion
    1. 3 x PCI Slot Supports 33MHz & PCI 2.2 compliant
    2. 1 x ISA Slot
  • Contrôleur d'Entrée/Sortie
    1. 2 x Ultra DMA/33 Bus Master IDE ports on board
    2. 1 x FDD, 1 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse, 2 x USB on board
    3. 1 x VGA(DB15), 1 x Joystic, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 1 x COM by cable
    5. IrDA TX / RX Header (optional)
  • Monitorage Matériel
    1. Auto Speed down and Alarm when CPU overheat or Fan failure(OS independent & Driverless)
    2. System Health status detect & report by BIOS, LDCM® & SIV
    3. H/W detect ±5V, ±12V, CPU & CMOS battery Voltage Status
  • BIOS
    1. 2Mbit Flash RAM
    2. AWARD BIOS with Enhanced ACPI Feature for PC98/Win98 Compliance,Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. Auto-detect & report system health status
  • Dimensions
    1. Micro ATX , 4 layer PCB (24.3*21.0 cm)
  • Pilote
    1. Intel® LDCM® utility, SIV utility
    2. Ultra DMA/33 Bus Master IDE Driver (Xstore Pro, Triones & Intel® )
    3. Intel® PIIX4e Patch Utility for Windows 95
    4. ATi AGP Driver & YAMAHA PCI Sound Driver
    5. TREND MICRO PC-cillin 98 Anti-Virus utility (scan only)
  • Autres Caractéristiques
    1. Includes Wake-On-LAN Header (WOL) & SB-LINKTM connector
    2. On board PC speaker
    3. Supports Internal / External modem wake on
    4. 3 Fan Power & Speed Detection Connectors; Case Open Detection
    5. Poly fuse for keyboard overcurrent protection
  • Puissance
    1. ATX Power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem(COM A or B) & Switch
    3. Power-off by Windows 98 Shut down & Switch
    4. AC Recovery ON/OFF control
    5. Stop CPU Fan during entering suspend mode
    6. 3 Level ACPI LED Support
  • Processeur
    1. Intel® PPGA CeleronTM Processor 300 to 433 MHz
    2. Socket 370 for future Processor support
    3. 66/75*/83*/100/112*/133* MHz System Bus
    4. AUTO Detect CPU Voltage
    5. Clock multiplier 3.0/3.5 .... /6.5
  • Chipset
    1. Intel® 440ZX AGPset
    2. Winbond 83977 I/Oset
    3. ATi AGP chip (8MB SDRAM)
    4. YAMAHA 740 PCI Sound chip
    5. Winbond 83782 Health chip
  • Mémoire
    1. 8MB to 512MB DRAM size
    2. 2 x 3.3V DIMM Sockets
    3. Supports 8/16/32/64/128/256 MB SDRAM DIMM Module
  • Port d'expansion
    1. 3 x PCI Slot Supports 33MHz & PCI 2.2 compliant
    2. 1 x ISA Slot
  • Contrôleur d'Entrée/Sortie
    1. 2 x Ultra DMA/33 Bus Master IDE ports on board
    2. 1 x FDD, 1 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse, 2 x USB on board
    3. 1 x VGA(DB15), 1 x Joystic, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 1 x COM by cable
    5. IrDA TX / RX Header (optional)
  • Monitorage Matériel
    1. Auto Speed down and Alarm when CPU overheat or Fan failure(OS independent & Driverless)
    2. System Health status detect & report by BIOS, LDCM® & SIV
    3. H/W detect ±5V, ±12V, CPU & CMOS battery Voltage Status
  • BIOS
    1. 2Mbit Flash RAM
    2. AWARD BIOS with Enhanced ACPI Feature for PC98/Win98 Compliance,Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. Auto-detect & report system health status
  • Dimensions
    1. Micro ATX , 4 layer PCB (24.3*21.0 cm)
  • Pilote
    1. Intel® LDCM® utility, SIV utility
    2. Ultra DMA/33 Bus Master IDE Driver (Xstore Pro, Triones & Intel® )
    3. Intel® PIIX4e Patch Utility for Windows 95
    4. ATi AGP Driver & YAMAHA PCI Sound Driver
    5. TREND MICRO PC-cillin 98 Anti-Virus utility (scan only)
  • Autres Caractéristiques
    1. Includes Wake-On-LAN Header (WOL) & SB-LINKTM connector
    2. On board PC speaker
    3. Supports Internal / External modem wake on
    4. 3 Fan Power & Speed Detection Connectors; Case Open Detection
    5. Poly fuse for keyboard overcurrent protection
  • Puissance
    1. ATX Power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem(COM A or B) & Switch
    3. Power-off by Windows 98 Shut down & Switch
    4. AC Recovery ON/OFF control
    5. Stop CPU Fan during entering suspend mode
    6. 3 Level ACPI LED Support

* Les termes HDMI, interface multimédia haute définition HDMI et habillage commercial HDMI, et les logos HDMI sont des marques commerciales et des marques déposées de HDMI Licensing Administrator, Inc.
* Les informations ici proposées le sont pour référence uniquement. GIGABYTE se réserve le droit de modifier ce contenu à tout moment et sans préavis.
*Les performances affichées sont basées sur les informations proposées par les constructeurs de chipsets ou sociétés définissant les caractéristiques des interfaces. Performances pouvant varier selon configuration.
* Marques et logos appartiennent aux détenteurs respectifs de leurs droits.
* L'architecture de grand nombre de PC affectera directement la capacité mémoire, en effet, une certaine quantité de RAM sera affectée au système, la quantité totale affichée pourra alors varier de celle insérée sur votre carte mère
