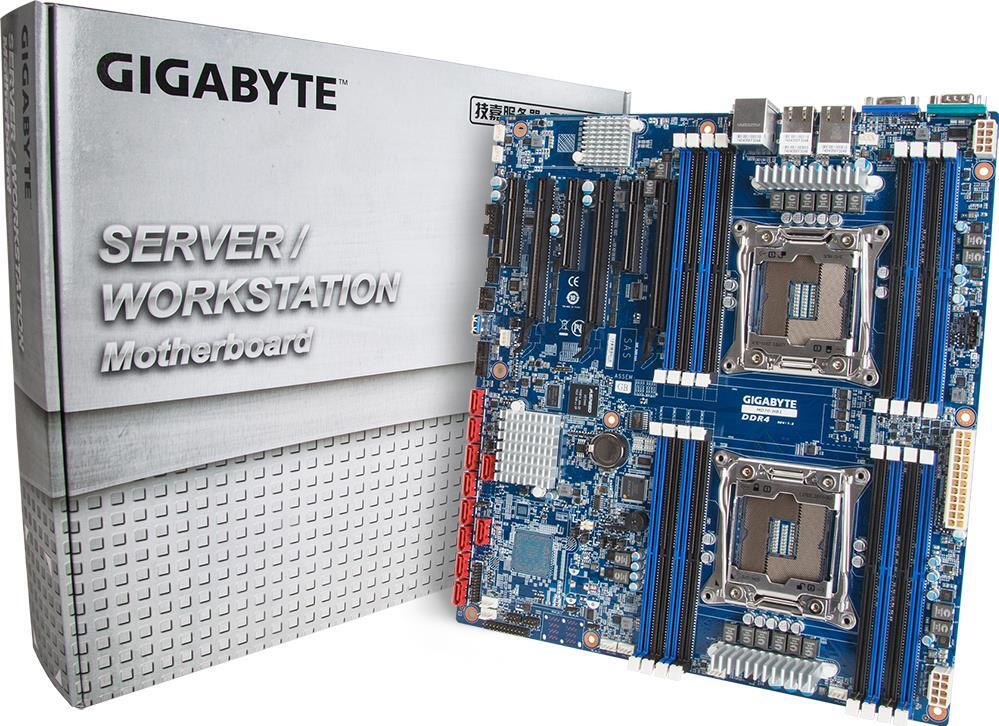

MD70-HB1
Discontinued
Intel® C612 chipset
- Intel® Xeon® processor E5-2600 V3 / V4 product family
- 16 x RDIMM/LRDIMM ECC DDR4 DIMM slots
- 2 x GbE LAN ports (Intel® I350)
- 10 x SATA III 6Gb/s
- 1 x USB 3.0 + 1 x USB 2.0 headers
- 1 x internal USB 3.0 port
- Aspeed® AST2400 remote management controller
* Les informations ici proposées le sont pour référence uniquement. GIGABYTE se réserve le droit de modifier ce contenu à tout moment et sans préavis.
* Marques et logos appartiennent aux détenteurs respectifs de leurs droits.
* L'architecture de grand nombre de PC affectera directement la capacité mémoire, en effet, une certaine quantité de RAM sera affectée au système, la quantité totale affichée pourra alors varier de celle insérée sur votre carte mère
* Marques et logos appartiennent aux détenteurs respectifs de leurs droits.
* L'architecture de grand nombre de PC affectera directement la capacité mémoire, en effet, une certaine quantité de RAM sera affectée au système, la quantité totale affichée pourra alors varier de celle insérée sur votre carte mère
SPECIFICATIONS
Form Factor
E-ATX / SSI EEB
305W x 330D (mm)
305W x 330D (mm)
CPU
Intel® Xeon® E5-2600 V3 processors
Intel® Xeon® E5-2600 V4 processors
NOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable.
Intel® Xeon® E5-2600 V4 processors
NOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable.
Socket
2 x LGA 2011-3
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Chipset
Intel® C612
Memory
16 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz
LAN
2 x GbE LAN ports (Intel® I350-BT2)
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
SAS
-
SATA
8 x SATA III 6Gb/s ports
2 x SATA III 6Gb/s ports supporting SATA DOM
2 x SATA III 6Gb/s ports supporting SATA DOM
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
3 x PCIe x16 (Gen3 x16 bus) slots
1 x PCIe x8 (Gen2 x4 bus) slot
or (via PCIe switch):
1 x PCIe x16 (Gen3 x16 bus) slot
2 x PCIe x16 (Gen3 x8 bus) slots
2 x PCIe x8 (Gen3 x8 bus) slots
1 x PCIe x8 (Gen2 x4 bus) slot
1 x PCIe x8 (Gen2 x4 bus) slot
or (via PCIe switch):
1 x PCIe x16 (Gen3 x16 bus) slot
2 x PCIe x16 (Gen3 x8 bus) slots
2 x PCIe x8 (Gen3 x8 bus) slots
1 x PCIe x8 (Gen2 x4 bus) slot
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x CPU fan headers
5 x System fan headers
10 x SATA III 6Gb/s ports
1 x USB 3.0 vertical type A
1 x USB 3.0 header
1 x USB 2.0 header
1 x Serial header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
2 x SATA SGPIO headers
1 x Chassis intrusion header
1 x LSI UART header
2 x JTAG headers
1 x PMBus connector
1 x IPMB connector
2 x SATA DOM jumpers
1 x BIOS recovery jumper
1 x BIOS password recovery jumper
1 x ME recovery jumper
1 x ME update jumper
1 x BMC FRB jumper
1 x Clear CMOS jumper
1 x S3 mask jumper
2 x 8-pin ATX 12V power connectors
2 x CPU fan headers
5 x System fan headers
10 x SATA III 6Gb/s ports
1 x USB 3.0 vertical type A
1 x USB 3.0 header
1 x USB 2.0 header
1 x Serial header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
2 x SATA SGPIO headers
1 x Chassis intrusion header
1 x LSI UART header
2 x JTAG headers
1 x PMBus connector
1 x IPMB connector
2 x SATA DOM jumpers
1 x BIOS recovery jumper
1 x BIOS password recovery jumper
1 x ME recovery jumper
1 x ME update jumper
1 x BMC FRB jumper
1 x Clear CMOS jumper
1 x S3 mask jumper
Rear I/O
2 x USB 3.0
1 x Serial
1 x VGA
3 x RJ45
1 x ID button with LED
1 x Serial
1 x VGA
3 x RJ45
1 x ID button with LED
TPM
1 x TPM header
OS Supported
Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
Board Management
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x 8-pin ATX 12V power connectors
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x MD70-HB1
1 x Driver CD
1 x User manual
1 x I/O shield
2 x SATA III 6Gb/s cables
Box dimensions: 409 x 355 x 78 mm
1 x Driver CD
1 x User manual
1 x I/O shield
2 x SATA III 6Gb/s cables
Box dimensions: 409 x 355 x 78 mm
Bulk Packaging Content
10 x MD70-HB1
10 x I/O shields
Carton dimensions: 473 x 600 x 495 mm
10 x I/O shields
Carton dimensions: 473 x 600 x 495 mm
Reference Numbers
Retail: 9MD70HB1MR-00
Bulk: 9MD70HB1NR-00
Bulk: 9MD70HB1NR-00
* Les informations ici proposées le sont pour référence uniquement. GIGABYTE se réserve le droit de modifier ce contenu à tout moment et sans préavis.
*Les performances affichées sont basées sur les informations proposées par les constructeurs de chipsets ou sociétés définissant les caractéristiques des interfaces. Performances pouvant varier selon configuration.
* Marques et logos appartiennent aux détenteurs respectifs de leurs droits.
* L'architecture de grand nombre de PC affectera directement la capacité mémoire, en effet, une certaine quantité de RAM sera affectée au système, la quantité totale affichée pourra alors varier de celle insérée sur votre carte mère
*Les performances affichées sont basées sur les informations proposées par les constructeurs de chipsets ou sociétés définissant les caractéristiques des interfaces. Performances pouvant varier selon configuration.
* Marques et logos appartiennent aux détenteurs respectifs de leurs droits.
* L'architecture de grand nombre de PC affectera directement la capacité mémoire, en effet, une certaine quantité de RAM sera affectée au système, la quantité totale affichée pourra alors varier de celle insérée sur votre carte mère
SUPPORT
Driver
BIOS
Utilitaire
Firmware
QVL
- All
- All
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows Server 2008 R2 64bit
- Ubuntu 14.04 LTS x86
- Ubuntu 14.04 LTS x64
- Ubuntu 12.04 LTS x86
- Ubuntu 12.04 LTS x64
- SLES 12 x64
- SLES 11.4 x86
- SLES 11.4 x64
- RHEL 7.2 x64
- RHEL 6.7 x86
- RHEL 6.7 x64
Chipset
Chipset
Version
Taille
Date
Intel® INF Driver
Version : 10.1.2.10
2.76 MB
Mar 28, 2016
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® Management Engine Driver
Version : 9.1.0.1120
102.8 MB
Sep 24, 2014
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
LAN
LAN
Version
Taille
Date
Intel® LAN Driver and Utility
Version : 20.7
242.15 MB
Mar 28, 2016
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® LAN Driver and Utility
Version : 20.7
242.15 MB
Mar 28, 2016
OS: Ubuntu 14.04 LTS x86,Ubuntu 14.04 LTS x64,RHEL 6.7 x86,RHEL 6.7 x64,RHEL 7.2 x64,Ubuntu 12.04 LTS x86,Ubuntu 12.04 LTS x64,SLES 11.4 x86,SLES 11.4 x64,SLES 12 x64
Intel® LAN Driver and Utility
Version : 21.1
303.94 MB
Mar 22, 2017
OS: Windows Server 2016 64bit
SATA RAID
SATA RAID
Version
Taille
Date
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 4.5.0.1333
18.62 MB
Mar 28, 2016
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 4.5.0.1333
3.59 MB
Mar 28, 2016
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 4.6.0.1085
19.4 MB
Mar 21, 2017
OS: Windows Server 2016 64bit
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 4.6.0.1085
7.41 MB
Mar 21, 2017
OS: Windows Server 2016 64bit
USB 3.0
USB 3.0
Version
Taille
Date
Etron USB 3.0 Driver
Version : 0.119
11.42 MB
Sep 09, 2014
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit
Intel® USB 3.0 Driver
Version : 3.0.0.33
5.17 MB
Sep 16, 2014
OS: Windows Server 2008 R2 64bit
Etron USB 3.0 Driver
Version : 0.118
11.41 MB
Sep 17, 2014
OS: Windows Server 2008 R2 64bit
VGA
VGA
Version
Taille
Date
ASPEED Graphic Driver
Version : 0.99
35.32 MB
Sep 09, 2014
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
ASPEED Graphic Driver
Version : 1.03
0.57 MB
Aug 28, 2017
OS: Windows Server 2012 R2 64bit,Windows Server 2016 64bit
BIOS
Description
Version
Taille
Date
Security update for 2019.2 Intel Platform Update (IPU)
[1] Update Microcode:Hasswell-EP M6F306F2_00000043,Broadwell-EP MEF406F1_0B000038
[2] Update ACM :SINIT 3.1.3
[3] Update Update SPS 03.01.03.72.0
[1] Update Microcode:Hasswell-EP M6F306F2_00000043,Broadwell-EP MEF406F1_0B000038
[2] Update ACM :SINIT 3.1.3
[3] Update Update SPS 03.01.03.72.0
Version : R11
13.24 MB
Dec 06, 2019
1. SPEED VBIOS update to 1.09.0 for CVE-2019-6260
2. Fixed INTEL-SA-00233
2. Fixed INTEL-SA-00233
Version : R10
13.16 MB
Jun 17, 2019
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Update CPU ID/Micro codes in new BIOS means?
[1] To support new series of CPUs, or [2] To support the same CPU but with new stepping. CPU support of motherboard is consist of BIOS and hardware design, detail CPU support information please see CPU support list.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Update CPU ID/Micro codes in new BIOS means?
[1] To support new series of CPUs, or [2] To support the same CPU but with new stepping. CPU support of motherboard is consist of BIOS and hardware design, detail CPU support information please see CPU support list.
- All
- All
- Windows Server 2019
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows Server 2008 R2 64bit
- Linux
Utilitaire
Description
Version
Taille
Date
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM CLI
Version : 1.00
125.66 MB
Jul 31, 2017
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit,Windows Server 2016 64bit
Mode d'emploi
Description
Version
Taille
Date
Description
Version
Taille
Date
RESOURCES
Success Case
Video
Security & Technical Advisory
Others
Back to MD70-HB1
