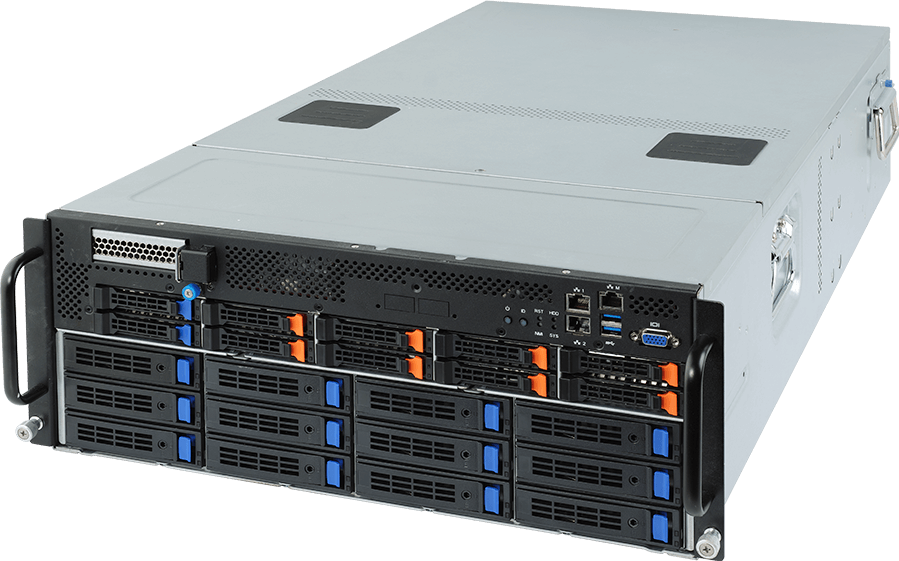

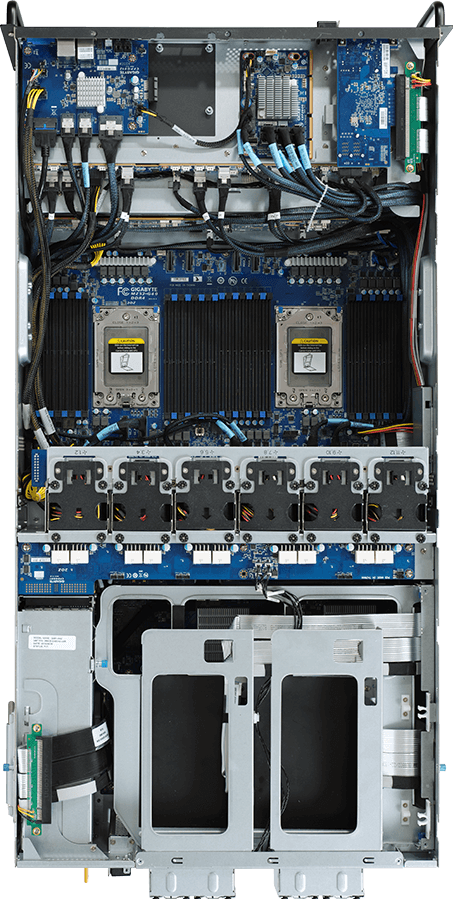

    G482-Z50

    Discontinued

    Rev. A00 Rev. 100
    HPC/AI Server - AMD EPYC™ 7003 - 4U DP 10 x PCIe Gen3 GPUs
    • Up to 10 x Dual slot Gen3 GPGPU cards
    • AMD EPYC™ 7003 Series processors
    • AMD EPYC™ 7003 Series processors with AMD 3D V-Cache™ Technology
    • 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
    • 2 x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
    • 2 x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
    • 1 x Dedicated management port
    • 12 x 3.5" SATA/SAS hot-swappable bays
    • 8 x 2.5" NVMe/SATA/SAS hot-swappable bays
    • 2 x 2.5" SATA/SAS hot-swappable bays
    • 10 x FHFL PCIe Gen3 x16 slots for GPUs
    • 1 x LP PCIe Gen3 x16 slot
    • Triple 2200W 80 PLUS Platinum redundant power supply
    * Les informations ici proposées le sont pour référence uniquement. GIGABYTE se réserve le droit de modifier ce contenu à tout moment et sans préavis.
    * Marques et logos appartiennent aux détenteurs respectifs de leurs droits.
    * L'architecture de grand nombre de PC affectera directement la capacité mémoire, en effet, une certaine quantité de RAM sera affectée au système, la quantité totale affichée pourra alors varier de celle insérée sur votre carte mère

    SPECIFICATIONS

    Dimensions (WxHxD, mm)
    4U
    448 x 176 x 880
    Motherboard
    MZ52-G40 Rev. 3.0
    CPU
    AMD EPYC™ 7003 Series processors
    AMD EPYC™ 7003 Series processors with AMD 3D V-Cache™ Technology
    Dual processor, 7nm technology
    Up to 64-core, 128 threads per processor
    cTDP up to 280W

    Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable

    Compatible with AMD EPYC™ 7002 Series processors
    Socket
    Socket SP3
    Chipset
    System on Chip
    Memory
    32 x DIMM slots
    DDR4 memory supported only
    8-Channel memory architecture
    RDIMM modules up to 128GB supported
    LRDIMM modules up to 128GB supported
    3DS RDIMM/LRDIMM modules up to 256GB supported
    Memory speed: Up to 3200*/2933 MHz

    Note: Follow BIOS setting and memory QVL if running 3200 Mhz with 2DPC
    LAN
    Rear side:
    2 x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
    1 x 10/100/1000 management LAN

    Front side:
    2 x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
    NCSI function supported
    Video
    Integrated in Aspeed® AST2500
    2D Video Graphic Adapter with PCIe bus interface
    1920x1200@60Hz 32bpp, DDR4 SDRAM
    Storage
    Front side:
    12 x 3.5" SATA/SAS hot-swappable bays
    8 x 2.5" NVMe/SATA/SAS hot-swappable bays
    2 x 2.5" SATA/SAS hot-swappable bays

    Preinstalled with Broadcom SAS3008 storage adapter with IR mode and expander board
    SAS
    Supported via preinstalled SAS add-on card
    RAID
    Preinstalled Broadcom SAS3008 SAS card
    Software RAID, IR mode, RAID 0/1/1E/10
    Expansion Slots
    10 x PCIe x16 (Gen3 x16) FHFL slots, for GPUs
    1 x PCIe x16 (Gen3 x8) low-profile slot, occupied by CRA3338 HBA
    1 x PCIe x16 (Gen3 x16) low-profile slot on rear side*

    *SAS card not supported with internal cable due to cable routing limitation

    - System is validated for population with a uniform GPU model
    - Support is not provided for mixed GPU populations
    Internal I/O
    1 x TPM header
    1 x Front panel header
    Front I/O
    2 x USB 3.0
    1 x VGA
    2 x RJ45
    1 x MLAN (Reserved, enabled by jumper switch)
    1 x Power button with LED
    1 x ID button with LED
    1 x Reset button
    1 x NMI button
    1 x System status LED
    1 x HDD access LED

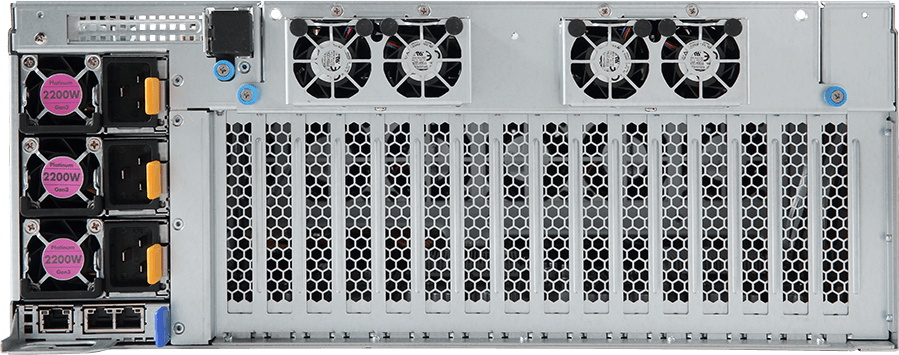

    Rear I/O
    2 x RJ45
    1 x MLAN (Primary port)
    Backplane Board
    Speed and bandwidth:
    PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s
    TPM
    1 x TPM header with SPI interface
    Optional TPM2.0 kit: CTM010
    Power Supply
    Triple 2200W 80 PLUS Platinum redundant power supply

    AC Input:
    - 100-127V~/ 14A, 47-63Hz
    - 200-240V~/ 12.6A, 47-63Hz

    DC Input:
    - 240Vdc/ 12.6A

    DC Output:
    - Max 1200W/ 100-127V~
    + 12.12V/ 95.6A
    + 12Vsb/ 3.5A
    - Max 2200W/ 200-240V~ or 240Vdc Input
    + 12.12V/ 178.1A
    + 12Vsb/ 3.5A

    Note: The system power supply requires C19 power cord
    System Management
    Aspeed® AST2500 management controller
    GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

    • Dashboard
    • JAVA Based Serial Over LAN
    • HTML5 KVM
    • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
    • Sensor Reading History Data
    • FRU Information
    • SEL Log in Linear Storage / Circular Storage Policy
    • Hardware Inventory
    • Fan Profile
    • System Firewall
    • Power Consumption
    • Power Control
    • LDAP / AD / RADIUS Support
    • Backup & Restore Configuration
    • Remote BIOS/BMC/CPLD Update
    • Event Log Filter
    • User Management
    • Media Redirection Settings
    • PAM Order Settings
    • SSL Settings
    • SMTP Settings
    OS Compatibility
    Windows Server 2016 (X2APIC/256T not supported)
    Windows Server 2019
    Windows Server 2022

    Red Hat Enterprise Linux 8.3 (x64) or later
    Red Hat Enterprise Linux 9.0 (x64) or later

    SUSE Linux Enterprise Server 12 SP5 (x64) or later
    SUSE Linux Enterprise Server 15 SP2 (x64) or later

    Ubuntu 18.04.5 LTS (x64) or later
    Ubuntu 20.04 LTS (x64) or later
    Ubuntu 22.04 LTS (x64) or later

    VMware ESXi 6.7 Update3 P03 or later
    VMware ESXi 7.0 Update1 or later
    VMware ESXi 8.0 or later

    Citrix Hypervisor 8.2.0 or later
    System Fans
    4 x 40x40x28mm (25,000rpm)
    6 x 60x60x76mm (21,700rpm)
    Operating Properties
    Operating temperature: 10°C to 35°C
    Operating humidity: 8%-80% (non-condensing)
    Non-operating temperature: -40°C to 60°C
    Non-operating humidity: 20%-95% (non-condensing)

    Note: Please contact Technical Support for more information about optimized GPU operating temperature
    Packaging Dimensions
    1109 x 609 x 606 mm
    Packaging Content
    1 x G482-Z50
    2 x CPU fansinks
    1 x L-shape Rail kit
    Part Numbers
    - Barebone package: 6NG482Z50MR-00-A*
    - Motherboard: 9MZ52G40NR-00
    - L-shape Rail kit: 25HB2-A96100-K0R
    - CPU fansink: 12SF2-01A067-00R
    - SAS Expander module - CEP26O0: 9CEP26O0NR-00
    - Storage adapter - CRA3338: 9CRA3338NR-00
    - LAN adapter - CLNP222: 9CLNP222NR-00
    - Fan module kit: 6NG481HAASR-00-100
    - Power supply: 25EP0-222003-D0S

    Optional parts:

    - C19 power cord 125V/15A (US): 25CP1-018000-Q0R
    - C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
    - GPU power cable for NVIDIA A10: 25CRI-100001-B0R
    - RMA packaging: 6NG482Z50SR-RMA-A100
