- TO15-Z40-IA01

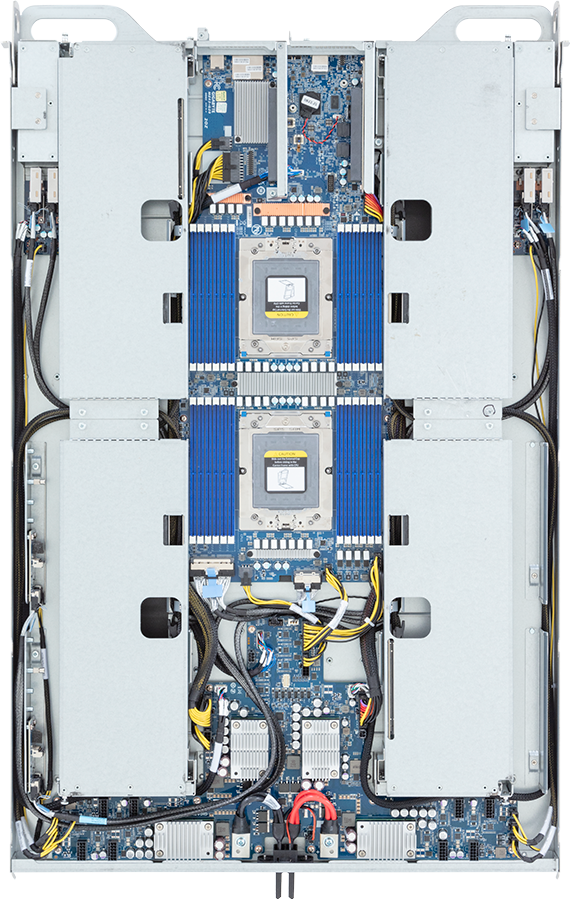

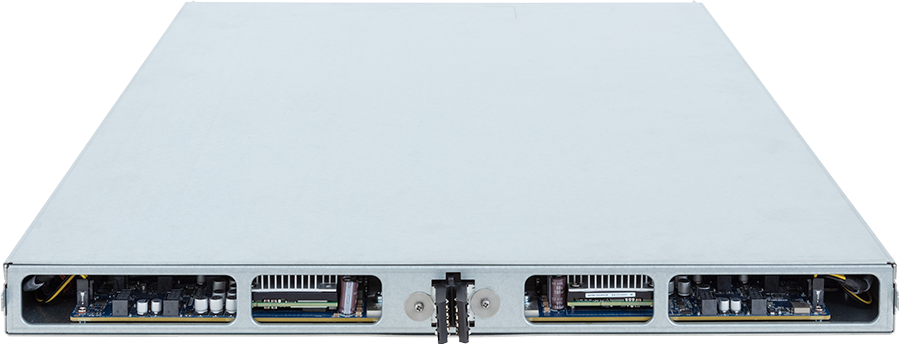

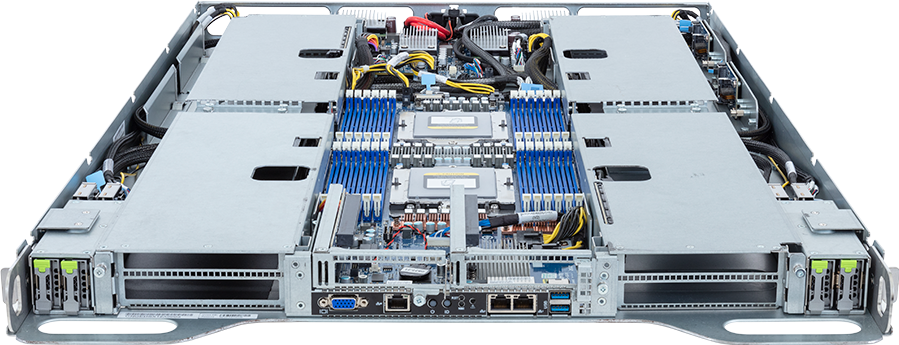

ORv3 GPU Server - AMD EPYC™ 9004 - 1OU DP 4 x PCIe Gen5 GPUs Immersion
- Single-Phase Immersion Ready Server
- Supports up to 4 x Dual slot Gen5 GPUs
- Dual AMD EPYC™ 9004 Series Processors
- 12-Channel DDR5 RDIMM, 24 x DIMMs
- Dual ROM Architecture
- 2 x 10Gb/s LAN ports via Broadcom® BCM57416
- 4 x 15mm E1.S NVMe hot-swap bays
- 2 x M.2 slots with SATA interface (optional)
- 4 x FHFL PCIe Gen5 x16 slots or 8 x FHFL PCIe Gen5 x8 slots for GPUs
- 2 x LP PCIe Gen5 x16 slots
- 48V DC Bus Bar power solution
* Les informations ici proposées le sont pour référence uniquement. GIGABYTE se réserve le droit de modifier ce contenu à tout moment et sans préavis.
* Marques et logos appartiennent aux détenteurs respectifs de leurs droits.
* L'architecture de grand nombre de PC affectera directement la capacité mémoire, en effet, une certaine quantité de RAM sera affectée au système, la quantité totale affichée pourra alors varier de celle insérée sur votre carte mère
* Marques et logos appartiennent aux détenteurs respectifs de leurs droits.
* L'architecture de grand nombre de PC affectera directement la capacité mémoire, en effet, une certaine quantité de RAM sera affectée au système, la quantité totale affichée pourra alors varier de celle insérée sur votre carte mère
SPECIFICATIONS
Dimensions (WxHxD, mm)
1OU
537 x 45 x 805.7
537 x 45 x 805.7

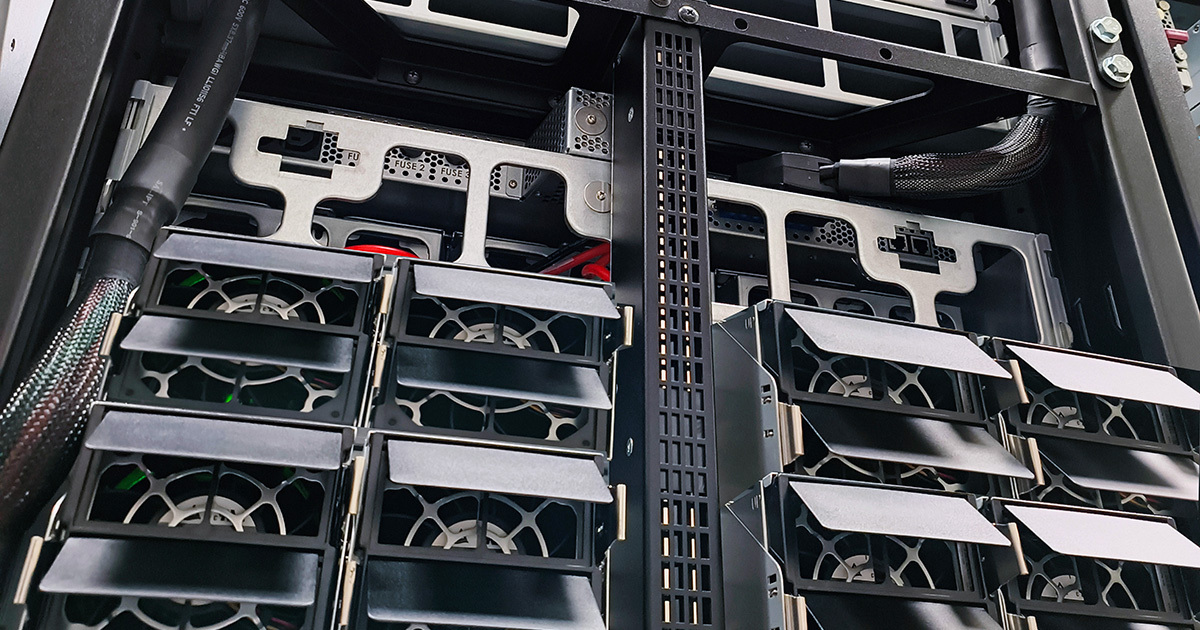

Open Rack Version
ORv3
Motherboard
MZ43-G20
CPU
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 400W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Dual processor, cTDP up to 400W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Memory
24 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
RDIMM: Up to 4800 MT/s
DDR5 memory supported
12-Channel memory architecture
RDIMM: Up to 4800 MT/s
LAN
Top:
2 x 10Gb/s LAN (1 x Broadcom® BCM57416)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 10Gb/s LAN (1 x Broadcom® BCM57416)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x VGA port
- 1 x VGA port
Storage
Top hot-swap:
4 x 15mm E1.S NVMe
Optional internal M.2 (COMTP61):
2 x M.2 (2280/22110), SATA, from CPU_1
4 x 15mm E1.S NVMe
Optional internal M.2 (COMTP61):
2 x M.2 (2280/22110), SATA, from CPU_1
SAS
N/A
RAID
N/A
PCIe Expansion Slots
Riser Card CORC206 x 2:
- 1 x FHFL x16 (Gen5 x16) or 2 x FHFL x16 (Gen5 x8), from CPU_0, for GPUs
- 1 x FHFL x16 (Gen5 x16) or 2 x FHFL x16 (Gen5 x8), from CPU_1, for GPUs
Riser Card CORC207 x 2:
- 1 x FHFL x16 (Gen5 x16) or 2 x FHFL x16 (Gen5 x8), from CPU_0, for GPUs
- 1 x FHFL x16 (Gen5 x16) or 2 x FHFL x16 (Gen5 x8), from CPU_1, for GPUs
Riser Card CRSG01F x 2:
- 2 x LP x16 (Gen5 x16), from CPU_0
- 1 x FHFL x16 (Gen5 x16) or 2 x FHFL x16 (Gen5 x8), from CPU_0, for GPUs
- 1 x FHFL x16 (Gen5 x16) or 2 x FHFL x16 (Gen5 x8), from CPU_1, for GPUs
Riser Card CORC207 x 2:
- 1 x FHFL x16 (Gen5 x16) or 2 x FHFL x16 (Gen5 x8), from CPU_0, for GPUs
- 1 x FHFL x16 (Gen5 x16) or 2 x FHFL x16 (Gen5 x8), from CPU_1, for GPUs
Riser Card CRSG01F x 2:
- 2 x LP x16 (Gen5 x16), from CPU_0
Top I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
Additional certifications:
Windows Server 2022 (x64)
Additional certifications:
Windows Server 2022 (x64)
Packaging Dimensions
1095 x 709 x 235 mm
Packaging Content
1 x TO15-Z40-IA01
2 x CPU heatsinks
4 x GPU power cables (12VHPWR, 550mm)
2 x CPU heatsinks
4 x GPU power cables (12VHPWR, 550mm)
Part Numbers
- Barebone package: 6NTO15Z40DR000IA01*
- Motherboard: 9MZ43G20UR-000*
- CPU heatsink: 25ST1-453217-A0R
- Riser card - CORC206: 9CORC206NR-00*
- Riser card - CORC207: 9CORC207NR-00*
- Riser card - CRSG01F: 9CRSG01FNR-00*
- EDSFF base board - COBP720: COBP720NR-00*
- EDSFF riser card - CSPP010: 9CSPP010NR-00*
- GPU power cable (12VHPWR, 550mm): 25CRI-55030B-Y4R
Optional parts:
- M.2 expansion card - COMTP61: 9COMTP61NR-00*
- RMA packaging: 6NTO15Z40SR-RMA-I100
- Motherboard: 9MZ43G20UR-000*
- CPU heatsink: 25ST1-453217-A0R
- Riser card - CORC206: 9CORC206NR-00*
- Riser card - CORC207: 9CORC207NR-00*
- Riser card - CRSG01F: 9CRSG01FNR-00*
- EDSFF base board - COBP720: COBP720NR-00*
- EDSFF riser card - CSPP010: 9CSPP010NR-00*
- GPU power cable (12VHPWR, 550mm): 25CRI-55030B-Y4R
Optional parts:
- M.2 expansion card - COMTP61: 9COMTP61NR-00*
- RMA packaging: 6NTO15Z40SR-RMA-I100
No. of Bus Bars
1 x 48V Bus Bar
* Les informations ici proposées le sont pour référence uniquement. GIGABYTE se réserve le droit de modifier ce contenu à tout moment et sans préavis.
*Les performances affichées sont basées sur les informations proposées par les constructeurs de chipsets ou sociétés définissant les caractéristiques des interfaces. Performances pouvant varier selon configuration.
* Marques et logos appartiennent aux détenteurs respectifs de leurs droits.
* L'architecture de grand nombre de PC affectera directement la capacité mémoire, en effet, une certaine quantité de RAM sera affectée au système, la quantité totale affichée pourra alors varier de celle insérée sur votre carte mère
*Les performances affichées sont basées sur les informations proposées par les constructeurs de chipsets ou sociétés définissant les caractéristiques des interfaces. Performances pouvant varier selon configuration.
* Marques et logos appartiennent aux détenteurs respectifs de leurs droits.
* L'architecture de grand nombre de PC affectera directement la capacité mémoire, en effet, une certaine quantité de RAM sera affectée au système, la quantité totale affichée pourra alors varier de celle insérée sur votre carte mère
