How to support 800MHz FSB for GA-8PE800

Download & Update BIOS
1) Download the latest BIOS
 2) Update the latest BIOS version by pressing "F8" key during BIOS setting
3) Adjust the CPU settings manually in BIOS settings
4) Supports only Northwood/Willamette CPU

However, if you want to upgrade to 800MHz FSB with a 533MHz CPU, you will have to manually overclock by adjusting BIOS settings
1) Enter BIOS settings by pressing "Del" key during system boot up.
2) Select Frequency / Voltage Control.
3) Adjust CPU external frequency to 200MHz.
2) Adjust frequency multiple to maintain CPU speed at the original setting.


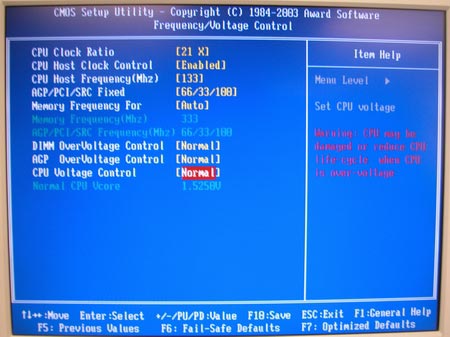

Fig 1. Shows the default settings of a 533MHz FSB 2.8GHz CPU

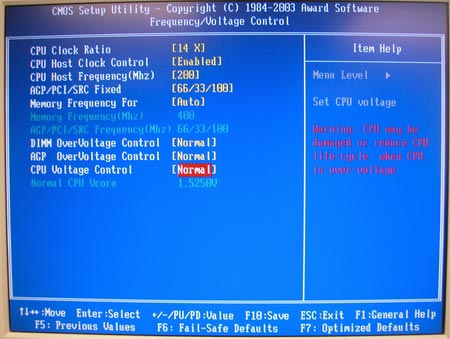

Fig 2. Shows the settings of an overclocked 800MHz FSB 2.8GHz CPU

Note: GIGABYTE is not responsible for damages caused by hardware incompatibility and improper operation during overclocking.

Memory Speed/CPU FSB Overclocking Support :

CPU FSB\Memory
DDR200/ PC1600
DDR 266 / PC 2100
DDR 333 / PC 2700
DDR 400 / PC 3200
400MHz
Yes
Yes
No
No
533MHz
No
Yes
Yes
No
800MHz
No
No
No

*800MHz FSB CPU support is not the default specification of the motherboard. If you decide to overclock with Intel®'s Pentium 4 processor on 800MHzm FSB, DDR400 DRAM module is a must.

Qualified DDR400/PC3200 Memory Module for the GA-8PE800
Vender Model Size Max DIMMs
MICRON NT5DS16M16BT-5236YOBFT 128MB 2
SAMSUNG K4H560838E-TCCC 256MB 1
MICRON MT16VDDT3264AG-40BB5 256MB 2
PSC AL5D8A53TK1-5B 256MB 2
TwinMOS 0302D TMD7608F8E45A 256MB 2
Geil AMIR0305 GL3LC32G88TG-5A 256MB 2
TwinMOS TMD7608F8E50D 256MB 2
SAMSUNG K4H560838E-TCCC (ECC) 256MB 1
Kingstone Winbond 2220D W942508BH-5 256MB 1
Kingstone Winbond 2312D W942508BH-5 512MB 2
NANYA NT5DS32M8BT-502261BPT 512MB 1
TwinMOS 0302DTMD7608F8E50A(ECC) 512MB 1
