Models
|

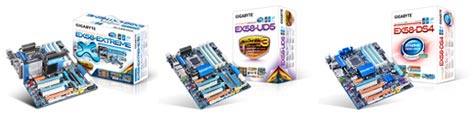

GIGABYTE EXTREME Overclocking Motherboards
Intel X58 series
GA-EX58-EXTREME | GA-EX58-UD5 | GA-EX58-UD4P | GA-EX58-UD4 | GA-EX58-UD3R |
GA-EX58-DS4


Ultra Durable 3

Ultra Durable 3 Classic

Dynamic Energy Saver Advanced
VRD 11.1
Dynamic 6-Gear
Power Phase Switching

ICH10R
DualBIOS
Precision OV
Hybrid
Silent-Pipe 2

Silent-Pipe Design
2 GbE LAN

3 Way CrossFireX™

3 Way SLI™

Dolby Home Theater®





Ultra Durable 3
Ultra Durable 3
Ultra Durable 3
Model
CPU Support
Intel Core i 7/ 45nm Processors
Intel Core i 7/ 45nm Processors
Intel Core i 7/ 45nm Processors
CPU Socket
LGA1366
LGA1366
LGA1366
QPI/FSB
QPI 6.4 GT/s
QPI 6.4 GT/s
QPI 6.4 GT/s
Chipset
Intel X58 + ICH10R
Intel X58 + ICH10R
Intel X58 + ICH10R
Onboard Graphics
-
-
-
Graphics Interface
3*PCI-Ex16 slot (x16, x8, x8)
3*PCI-Ex16 slot (x16, x8, x8)
3*PCI-E 2.0 x16 slot
(x16, x16 or x16, x8, x8)
Memory
3 Channel DDR3
3 Channel DDR3
Dual Channel DDR3 2100+/1333/1066/800
Memory Socket
6*DDR3
6*DDR3
6*DDR3
Max Memory
24 GB
24 GB
24 GB
Expansion Slots
2*PCI + 1*PCI-Ex1+1*PCI-Ex4 + 3*PCI-Ex16
2*PCI + 1*PCI-Ex1+1*PCI-Ex4 + 3*PCI-Ex16
2*PCI + 1*PCI-Ex4+ 1*PCI-Ex1
ATA connector
10*SATA 3Gb/s+ 1*PATA
10*SATA 3Gb/s+ 1*PATA
8*SATA 3Gb/s + 1*PATA
RAID
SATA RAID 0, 1, 5, 10 (ICH10R+GIGABYTE SATA2)
SATA RAID 0, 1, 5, 10 (ICH10R+GIGABYTE SATA2)
SATA RAID 0, 1, 5, 10 (ICH10R)
SATA RAID 0, 1, JBOD (GIGABYTE SATA2)
Audio
HD Audio, 8-channel
HD Audio, 8-channel
HD Audio, 8-channel
IEEE 1394
3*IEEE 1394a
3*IEEE 1394a
3*IEEE 1394a
USB 2.0
12*USB 2.0
12*USB 2.0
12*USB 2.0
LAN
2*Gigabit LAN(Teaming Support)
2*Gigabit LAN(Teaming Support)
Gigabit LAN
BIOS
DualBIOS
DualBIOS
DualBIOS
Features
Dynamic Energy Saver Advanced, Ultra Durable 3, Dynamic 6-Gear Switching, 45nm CPU Optimized, 3 way CrossFireX and 3 way SLI support, Debug LED, Dolby Home Theater, Blu-ray audio, Hybrid SILENT-PIPE 2
Dynamic Energy Saver Advanced, Ultra Durable 3, Dynamic 6-Gear Switching, 45nm CPU Optimized, 3 way CrossFireX and 3 way SLI support, Debug LED, Dolby Home Theater, Blu-ray audio, OV-Alert LED, OC-Alert LED, TPM-Alert LED
Dynamic Energy Saver Advanced, Ultra Durable 3, Dynamic 6-Gear Swithching, Ultra TPM, 3 way CrossFireX and 3 way SLI support, Dolby Home Theater, Blu-ray Support, Precision OV, eSATA, Quick Boost
Software
EasyTune 6,
Norton Internet Security
EasyTune 6,
Norton Internet Security
EasyTune 6, Norton Internet Security
Form Factor (mm)
ATX (305x244)
ATX (305x244)
ATX (305x244)





Ultra Durable 3 Classic
Ultra Durable 3 Classic


Model
CPU Support
Intel Core i 7/ 45nm Processors
Intel Core i 7/ 45nm Processors
Intel Core i 7/ 45nm Processors
CPU Socket
LGA1366
LGA1366
LGA1366
QPI/FSB
QPI 6.4 GT/s
QPI 6.4 GT/s
QPI 6.4 GT/s
Chipset
Intel X58 + ICH10R
Intel X58 + ICH10R
Intel X58 + ICH10R
Onboard Graphics
-
-
-
Graphics Interface
2*PCI-E 2.0 x16 slot
(x16, x16)
2*PCI-E 2.0 x16 slot
(x16, x16)
3*PCI-Ex16 slot (x16, x8, x8)
Memory
Dual Channel DDR3 2000+/1333/1066/800
Dual Channel DDR3 2000+/1333/1066/800
3 Channel DDR3
Memory Socket
6*DDR3
4*DDR3
6*DDR3
Max Memory
24 GB
16 GB
24 GB
Expansion Slots
3*PCI + 1*PCI-Ex4+ 1*PCI-Ex1
2*PCI + 1*PCI-Ex4+ 2*PCI-Ex1
2*PCI + 1*PCI-Ex1+1*PCI-Ex4 + 3*PCI-Ex16
ATA connector
8*SATA 3Gb/s + 1*PATA
8*SATA 3Gb/s + 1*PATA
8*SATA 3Gb/s+ 1*PATA
RAID
SATA RAID 0, 1, 5, 10 (ICH10R)
SATA RAID 0, 1, JBOD (GIGABYTE SATA2)
SATA RAID 0, 1, 5, 10 (ICH10R)
SATA RAID 0, 1, JBOD (GIGABYTE SATA2)
SATA RAID 0, 1, 5, 10 (ICH10R+GIGABYTE SATA2)
Audio
HD Audio, 8-channel
HD Audio, 8-channel
HD Audio, 8-channel
IEEE 1394
3*IEEE 1394a
3*IEEE 1394a
3*IEEE 1394a
USB 2.0
12*USB 2.0
12*USB 2.0
12*USB 2.0
LAN
Gigabit LAN
Gigabit LAN
Gigabit LAN
BIOS
DualBIOS
DualBIOS
DualBIOS
Features
Dynamic Energy Saver Advanced, Ultra Durable 3 Classic, Dynamic 4-Gear Swithching, ATI CrossFireX, Precision OV, eSATA, Quick Boost
Dynamic Energy Saver Advanced, Ultra Durable 3 Classic, Dynamic 4-Gear Swithching, ATI CrossFireX, Precision OV, Quick Boost
Dynamic Energy Saver Advanced, Dynamic 6-Gear Switching, 45nm CPU Optimized, 3 way CrossFireX support, Blu-ray audio, OV-Alert LED, OC-Alert LED, TPM-Alert LED
Software
EasyTune 6, Norton Internet Security
EasyTune 6, Norton Internet Security
EasyTune 6,
Norton Internet Security
Form Factor (mm)
ATX (305x244)
ATX (305x244)
ATX (305x244)

  * Please refer to GIGABYTE website for CPU support informatiopn.
